RAISE3D PRO2

RAISE3D PRO2

Kaubamärk: RAISE3D
Tootekood: 4006
Ühik: tk
Tarneaeg: Tellimisel: 14 päeva
Hind: 4200,00 €
Kogus: tk Lisa korvi


PRODUCT DESCRIPTION

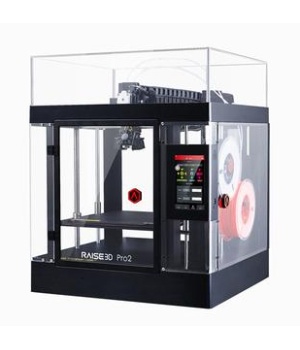

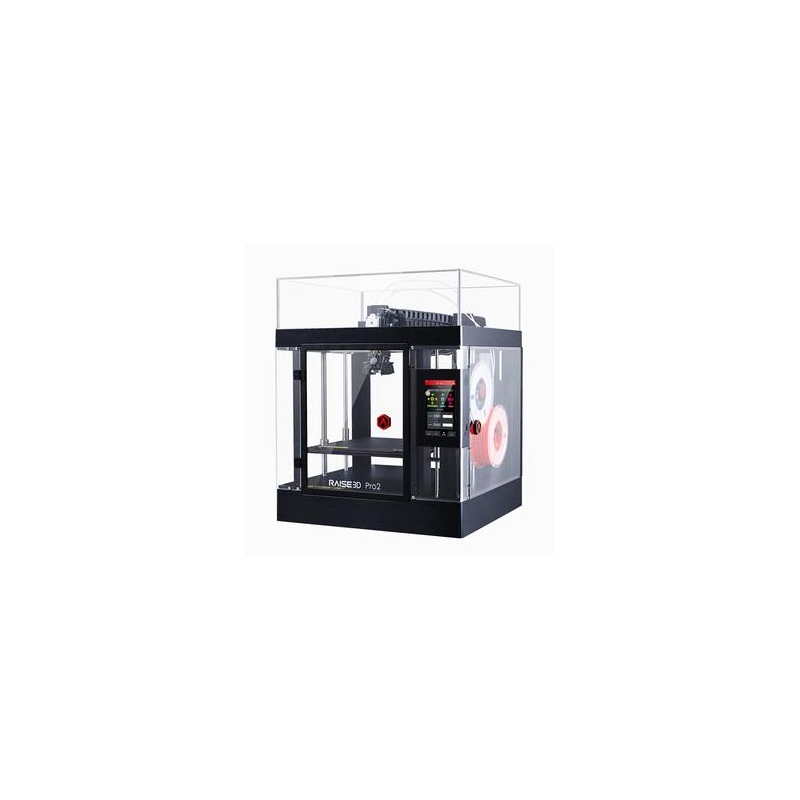

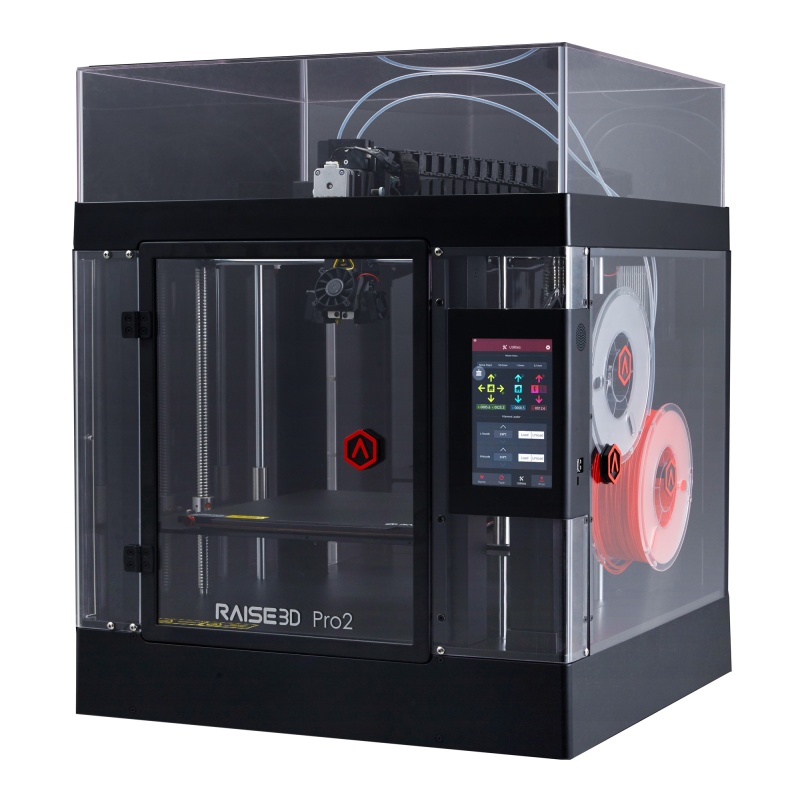

Raise3D Pro2 – High quality & reliable Dual Extruder 3D Printer

Raise3D stands for the production of high qualityreliable and affordable 3D printers. Join Additive Manufacturing at a good price now. Realize impressive results fast with this Raise3D Pro2 Dual Extruder 3D printer. Manufacture with this good-value 3D printer small series and prototypes. Buy this great 3D printer for fast and cost-effectively generative production.

The most important new features of the Raise3D Pro2:

  • Precise control of the building platform
  • Optimized extruder head for an easy extrusion
  • Integrated filament sensor recognizes filament status
  • High-temperature silicone printing bed for good adhesion on a build platform
  • Aluminium magnetic bed with improved 4 + 9 point closure system
  • Environmentally friendly and safe thanks to the air filter

Further optimizations:

  • Improved factory calibration enables you to start fast with 3D printing
  • An integrated camera allows monitoring manufacturing results from remote
  • Optimized nozzle for optimal extrusion
  • Hot-end upgrade
  • Very extensive accessories
  • Software controllable active cooling fan for a best possible cooling
  • High-quality optical end stops
  • Large building chamber: 305 x 305 x 300 mm



3D printing is cumbersome, complicated and gives bad results? – Not with the Raise3D

Let the Raise3D Pro2 fascinate you. 3D printing is cumbersome, complicated and gives bad results? That was yesterday. Yet, the Raise3D Pro2 convinces with many intelligent functions. There are very few 3D printers on the market that can integrate all this functionality into one device. The vast majority of these devices cost a multiple of the Raise3D Pro2.

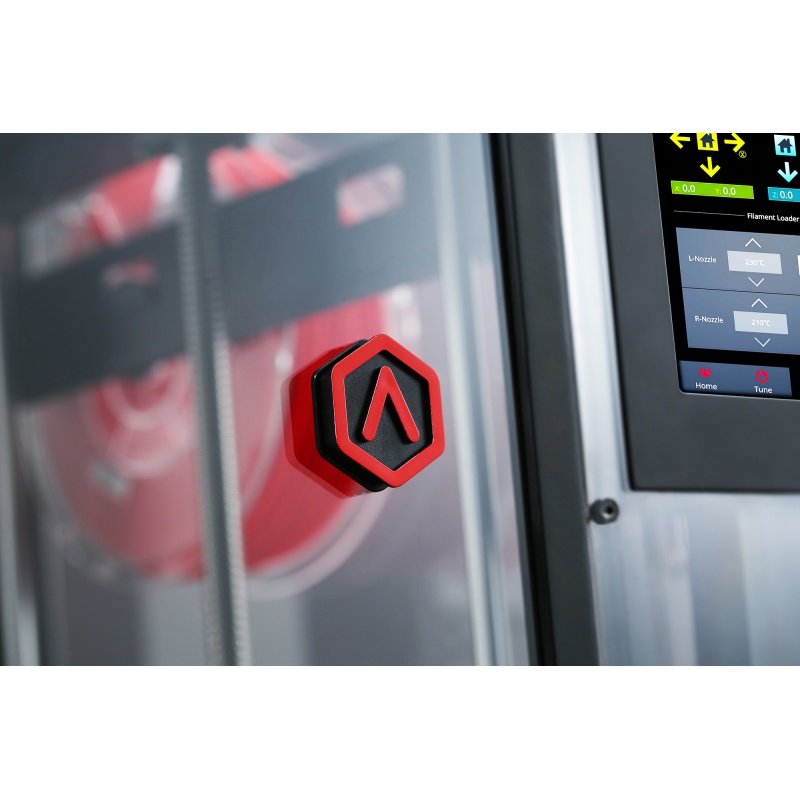

Intuitive 7-inch colour touch display

Control this dual-extruder 3D printer through its 7-inch colour touch display. Are you able to operate a smartphone? If so, you can use the intuitive interface of your Raise3D's. This will keep your 3D printing under control. Let your masterpieces become real with the Raise 3D Pro2.

Heated building platform and enclosed building chamber

Thanks to its generous building volume, you are able to manufacture very large components and prototypes. 3D print parts that reach a length of 305 x 305 x 300 mm. Furthermore, the building chamber of this 3D printer is closed. This allows you to process more sophisticated materials such as ABS, HIPS, PET-G, PLA +, PP and ASA. This is made possible by a heated building platform (up to 110 ° C), the completely enclosed building chamber. Heat the heated extruder up to 300 ° C. Transform your creative ideas into new real objects.

Open filaments system – Decide what filament you want to 3D print with

Use your favourite material. The Raise3D Pro2 is an open platform and can be processed with a variety of available filaments. The filaments only requirement of the filament is to have a 1.75 mm diameter. You decide which material you want to use!

Optimized double extruder

  • Precise control of the building platform
  • Optimized extruder head with improved torque performance and dual gear drive
  • Optical filament sensor – This will show you the filament status and immediately stop the 3D printer when the filament is exhausted. After refilling, you can continue working

Dual extruders for different filaments, materials – 3D print complex components

Make parts with the dual extruder parts from two different filamentsmaterials and support materials. If you use PVA or HIPS as the second filament, you can realize very complex components with overhangs. After finished 3D printing, you can simply dissolve the support filament and get great results.

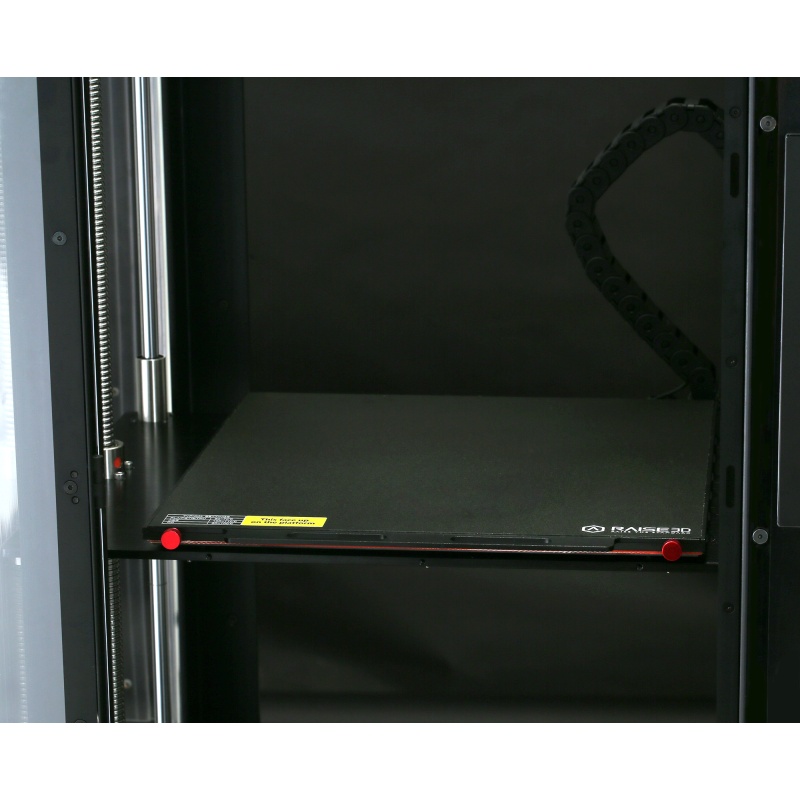

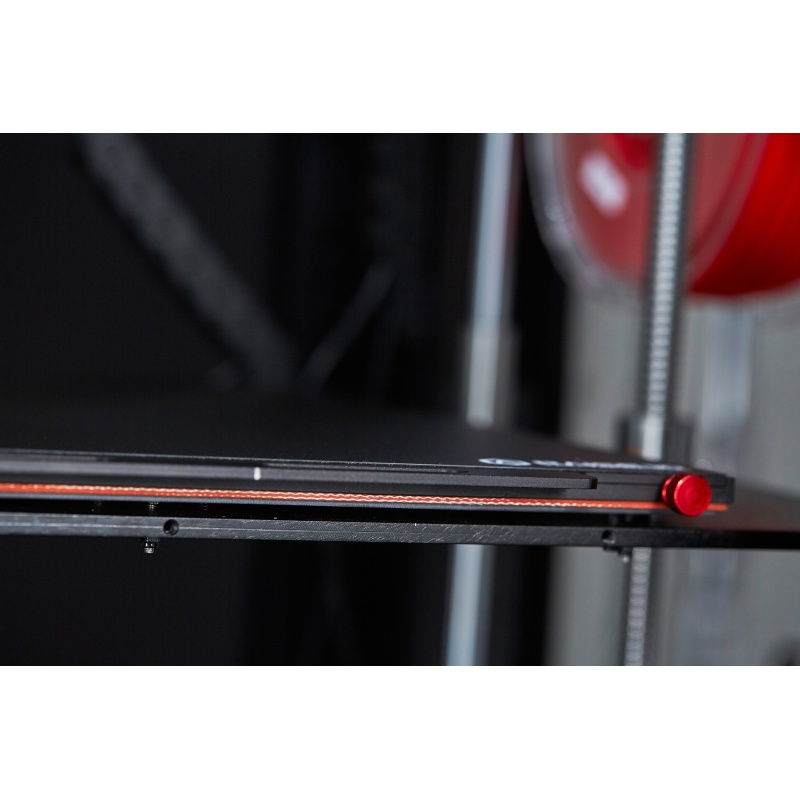

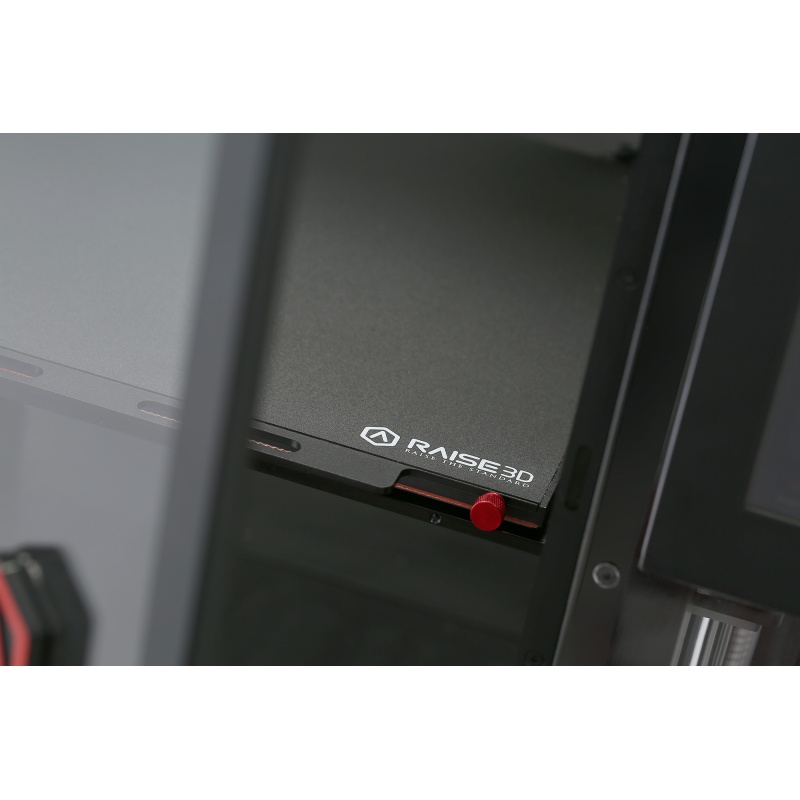

New 3D printing bed for better adhesion

Now Raise3D Pro2 works with a new silicone heating bed. This increases  adhesion of your components on the platform. The base of this forms a magnetic aluminum bed. This is equipped with an improved 4 + 9 points lock system.

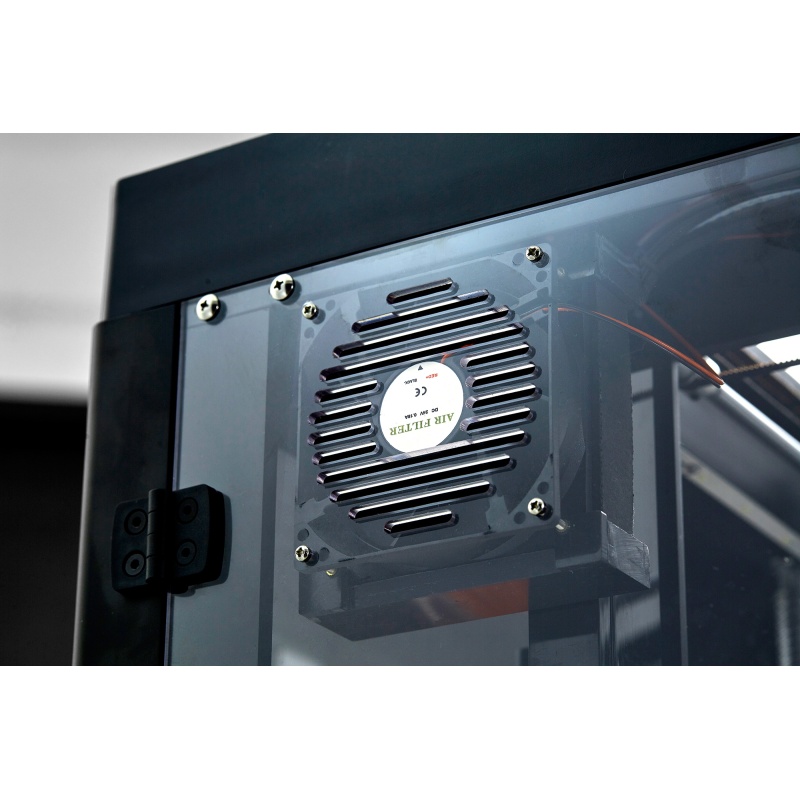

Air filter for improved air quality reduces fumes and smells

Do you want to use this 3D printer without disturbing fumes and smells? The Raise3D Pro2 allows you to keep your air clean – with its built-in air filter.

Resume Function after power failure 3D printer

Power failure – And now? With this 3D printer you won't be in trouble. After the power has returned, simply resume your 3D printing using the RESUME function. The built-in 1000 mA battery stores the 3D printing progress. Then, the 3D printing can easily be continued. This function will save you filamentcosts and time that would be caused by interruptions.

Fast and precise production with Raise 3D Pro2

The Raise3D Pro2 allows you to 3D print at high speed and produce at a very high level. In the Z direction, the remarkable resolution of a minimum of 0.01 mm layer thickness can be achieved. 3D print fine structures and very smooth surfaces. When you work with such a high resolution, we recommend you only to manufacture small parts since the construction time increases sharply.

Buy the Raise3D Pro2 to get a professional, reliable and affordable dual extruder 3D printer for Additive Manufacturing.





TECHNICAL SPECIFICATIONS

Construction and Technical Details

Usable Nozzle Type:           Raise3D Pro2

Usable Filament Diameter:           1,75 mm

Nozzle Temperatur Max:              300 °C

Open Filament System:   Yes

Extruder Type:      direct drive

Printing Speed Max:        150 mm/s (depends on material)

Build Area:           305 mm x 305 mm x 300 mm

Dual Build Area: 305 mm x 280 mm x 300 mm

Heated Build Plate:          Yes

Build Plate Temperature Max: 110 ºC

Build Plate Surface:          BuildTak

Build Plate Material:        Aluminum plate

Build Plate Attachment:  magnetic /screws

Build Plate Leveling System:         Pre-calibrated - manual Leveling

Build Chamber During Process:   Open or Closed

Filament Chamber Closed:           Yes

Extruder Number:            2

Extruder Construction Type: Dual Dual-head with an electronic lifting system



Installation Space / Requirements

Total Mass:          590 mm x 620 mm x 760 mm

Total Weight:      50,2 kg

Operating Ambient Temperature:             15°C - 30°C

Power Consumption Max:            600 W

Voltage: AC: 100 V, 3,3 A / 230 V (50/60 Hz)



Equipment

Hepa Filter:          Yes

Filament Runout Sensor:               Yes

Powerloss Fail Safe:         Yes

TouchScreen:      Yes

Camera: Yes

Memory Internal:             Yes

Memory Capacity:            8 GB



Connection

USB:       Yes, 2 x USB-A

Ethernet-Port:     Yes

WLAN:   Yes

Cloud Control:    Yes



Accuracy

Layer Height:      0,01 mm - mm



Shipping

Shipping Box:      690 mm x 730 mm x 1060 mm

Shipping Weight:              70,5 kg
