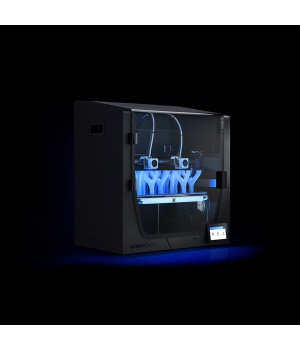

BCN3D Epsilon W27

BCN3D Epsilon on professionaalidele mõeldud 3D printer, millega on võimalik printida igat detaili väga suure täpsusega. Sellel 3D-printeril on IDEX (Independent Dual Extruder), mis võimaldab 3D-printida erinevaid tehnikaid ja materjale samal ajal kasutades (erinevad materjalid, värvid, tugistruktuurid, ..).



Võimalik on kasutada laias valikus erinevaid kuumpäid (müüme eraldi), mis aitab saavutada just Teie töö jaoks parima kvaliteedi. Te saate kasutada isegi samas töös erineva läbimõõduga kuumpäid.





The Epsilon W27 is a powerful professional 3D printer designed to deliver solid parts with industrial-grade materials, thanks to a passively heated chamber and full enclosure. Powered by our Independent Dual Extruder (IDEX) system, the Epsilon W27 delivers exceptionally strong functional parts with quality and precision.

Main features:

  • IDEX Technology: Double your productivity with the independent Dual Extrusion System.
  • Industry-Ready Materials: Print from plastics to composites and metals. All are using the same printer.
  • Massive Print Volume: Create big robust parts with solid mechanical properties.
  • Automatic XYZ Calibration: Reduce downtime. Focus on printing.



Index Technology

  • Duplication Mode: A setting that prints identical models simultaneously, doubling the production capacity.
  • Mirror Mode: A mode that enables printing mirrored designs symmetrically and sped up iteration.
  • Soluble Supports Mode: A process that prints soluble parts to create intricate structures and avoids geometric limitations.
  • Multi-material Mode: A technique that makes it possible to print two different materials and combine their properties.

Industry Ready Materials

Print from plastics to composites and metals with the industrial-grade BCN3D Filaments, developed by renowned chemical companies BASF and Mitsubishi Chemical, and thanks to our Open Filament System, work confidently with any third-party material of your choice.

Automatic XYZ Calibration

The autocalibration system incorporated in the BCN3D Epsilon calibrates the entire printer in less than 6 minutes by measuring multiple points to automatically adjust the printing surface height and (XY) offset between both nozzles. Always obtain a perfect first layer without any user intervention needed.

Improved electronics on the gen2 version

  • New ventilation system: Previously, the ventilation system introduced cold air inside the fans with extraction towards another grid. This was found to potentially cause turbulence in the interior, resulting in occasional inefficiencies. To resolve this, the hot air flow is now extracted from the interior and lowers internal pressure to let the interior absorb air from the outside.
  • New motor drivers: The Trinamic TMC2130 motor has been replaced with the TMC2226. Not only are these new drivers very silent, but they also perform with greater efficiency and better engine torque. Whereas their predecessors required heatsinks to cool down, these new ones heat up very little.
  • New mainboard: We’ve reverted away from commercial components and decided on custom-made components specially designed for our products. These have been concentrated into one single board, as opposed to being formed of several commercial pieces implemented in various areas of the printer. This significant reduction offers a simpler and, in turn, more efficient mainboard.



Construction an Technical Details



Usable Filament Diameter

2,85 mm

Nozzle Temperature Max

300 °C

Open Filament System

Yes

Extruder Type

Bowden Bondtech dual drive gears

Build Area

420 mm x 300 mm x 220 mm

Dual Build Area

420 mm x 300 mm x 220 mm

Heated Build Plate

Yes

Build Plate Temperature Max

120 ºC

Build Plate Attachment

clamp

Build Chamber During Process

Open or Closed

Build Chamber Heated

Yes, max 60°C

Filament Chamber Closed

Yes

Extruder Number

2

Extruder Construction Type Dual

IDEX - Independent Dual Extruders



Installation Space / Requirements



Total Mass

530 mm x 690 mm x 750 mm

Total Weight

33 kg

Power Consumption Max

840 W

Voltage

AC: 84 V, 3,6 A - 240 V, 1,3 A (50-60 Hz)



Equipment



Hepa Filter

Yes

Door Sensor

Yes

Filament Runout Sensor

Yes

Powerloss Fail Safe

Yes

Touchscreen

Yes



Connection



SD Card

Yes

Ethernet-Port

Yes

WLAN

Yes

Cloud Control

Yes



Accuracy



Layer Height

0,05 mm - 0,5 mm



Shipping



Shipping Box

600 mm x 800 mm x 1090 mm

Shipping Weight

46 kg
