BCN3D Sigma D25

BCN3D Sigma D25

Tootekood: 1017
Ühik: tk
Tarneaeg: 4 nädalat
Hind: 4331,00 €
Kogus: tk Lisa korvi

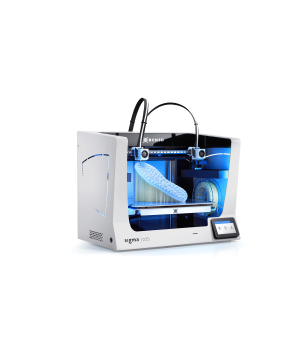

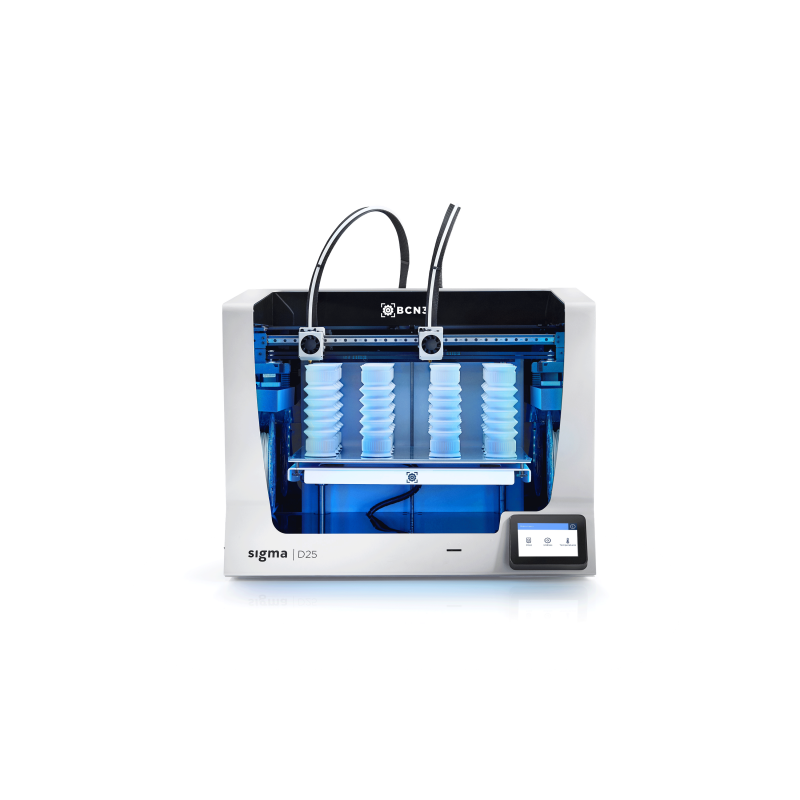

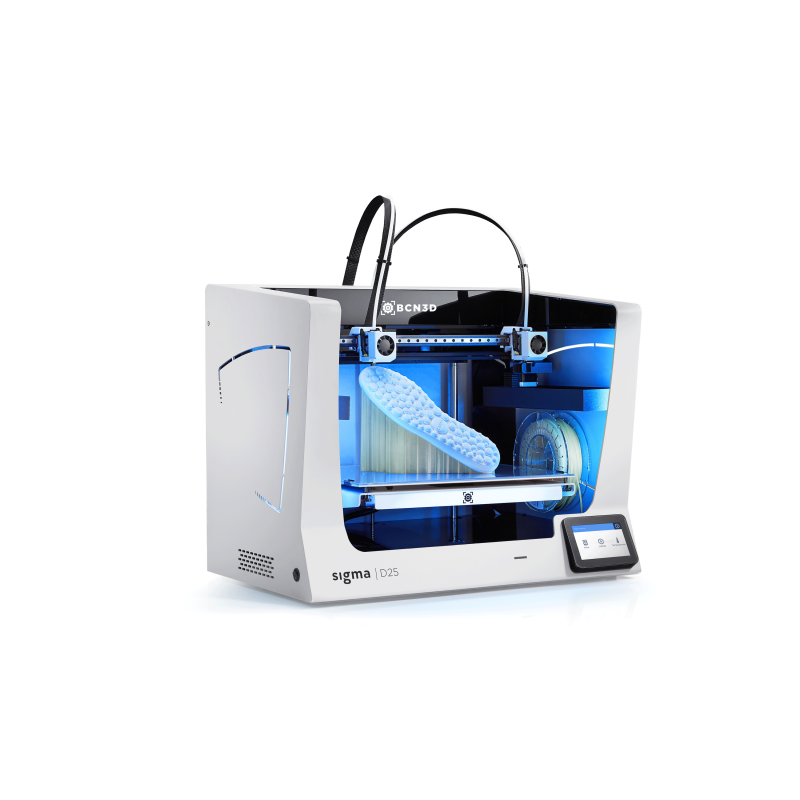

BCN3D Sigma D25

BCN3D Sigma D25 on kõrgelt hinnatud 3D-printer, millega on võimalik printida igat detaili väga suure täpsusega. Sellel 3D-printeril on IDEX (Indenpendent Dual Extrudel), mis võimaldab 3D-printida erinevaid tehnikaid ja materjale samal ajal kasutades (erinevad materjalid, värvid, tugistruktuurid, ..). Sigma D25 on suurepärane valik koolidele õppetöö läbiviimiseks.

Võimalik on kasutada laias valikus erinevaid kuumpäid (müüme eraldi), mis aitab saavutada just Teie töö jaoks parima kvaliteedi. Te saate kasutada isegi samas töös erineva läbimõõduga kuumpäid.


Tutvustav video: YouTube


Discover a new generation of BCN3Ds best-known 3D printer, engineered to grant maximum productivity through a hassle-free experience thanks to features like its massive print volume and full connectivity. Powered by our Independent Dual Extruder (IDEX) system, the Sigma D25 delivers quickly functional prototypes with quality and precision.

The main product features:

  • Heated bed up to 120ºC to print with engineering-grade materials and avoid warping issues.
  • The e3D™Hotends have been carefully designed to deliver the smoothest and most reliable extrusion.
  • The BCN3D Epsilon Series is equipped with a multilingual touchscreen that guides you through its advanced features.
  • Sturdy aluminium frame for guaranteed strength and durability on your workfloor.
  • The Bondtech™ Extruders features high-tech dual drive gears, offering more control, sharper details, and superior performance for any type of filament.
  • Filament Runout Sensor that detects when the filament is finished and pauses the printing process until it is reloaded again.


Create big functional parts with solid mechanical properties.
Unlock a wide range of technical applications with the industrial-grade BCN3D Filaments, FormFutura filaments or work confidently with any third-party material of your choice thanks to our Open Filament System.

Powered by IDEX Technology
Developed by BCN3D, the disruptive Independent Dual Extrusion System technology makes the difference in 3D printing.

Mirror mode
A mode that enables printing mirrored designs symmetrically and speeds up iteration.

Duplication mode
A setting that prints identical models simultaneously, doubling the production capacity.

Soluble supports mode
A process that prints soluble parts to create intricate structures and avoid geometric limitations.

Multimaterial mode
A technique that makes it possible to print two different materials and combine their properties.



Construction and Technical Details


Usable Filament Diameter

2,85 mm

Nozzle Temperatur Max

300 °C

Open Filament System


Extruder Typ

Bowden Bondtech dual drive gears

Build Area

300 mm x 420 mm x 200 mm

Dual Build Area

300 mm x 420 mm x 200 mm

Heated Build Plate


Build Plate Temperature Max

80 ºC

Build Plate Attachment


Build Chamber During Process


Extruder Number


Extruder Construction Typ Dual

IDEX - Independent Dual Extruders


Installation Space / Requirements


Total Mass

530 mm x 690 mm x 550 mm

Total Weight

30 kg

Operating Ambient Temperature

15°C - 30°C

Power Consumption Max

650 W


AC: 84 V - 240 V (50-60 Hz)




Filament Runout Sensor







Memory Card






Cloud Control





Layer Height

0,05 mm - 0,5 mm




Shipping Box

570 mm x 780 mm x 725 mm

Shipping Weight

43 kg
