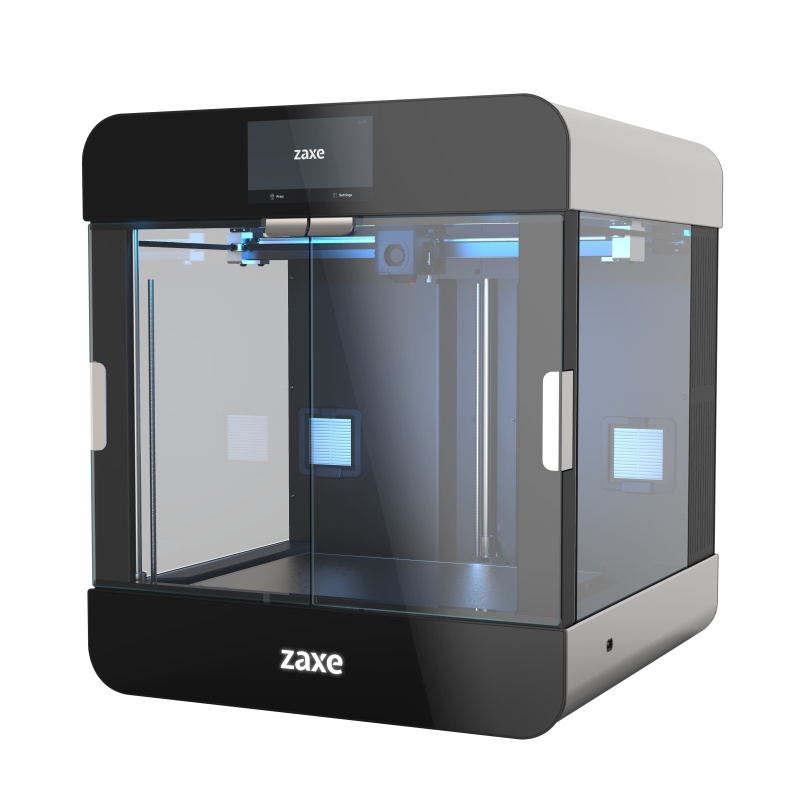

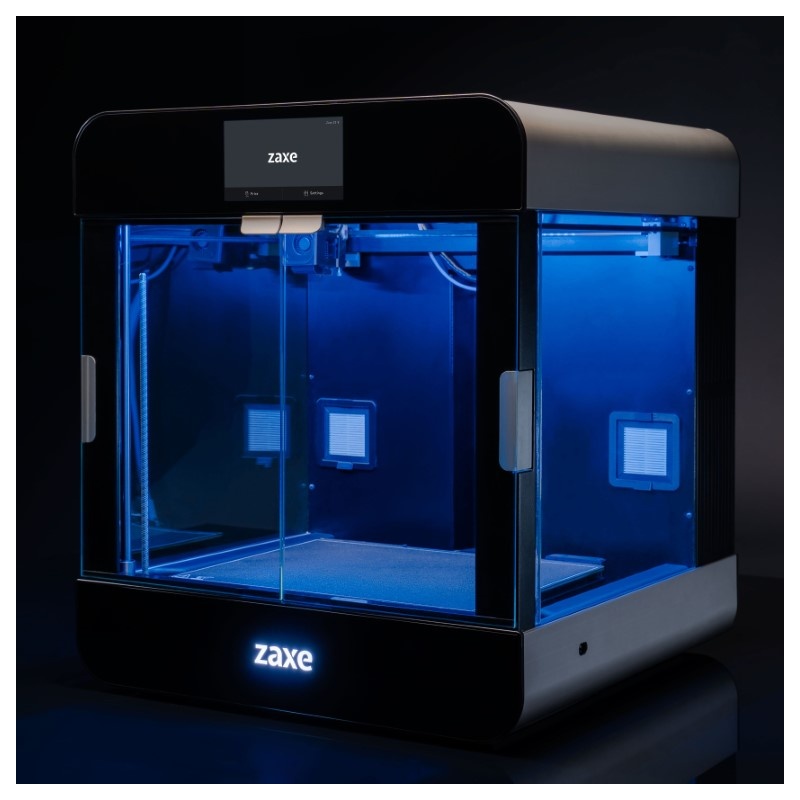

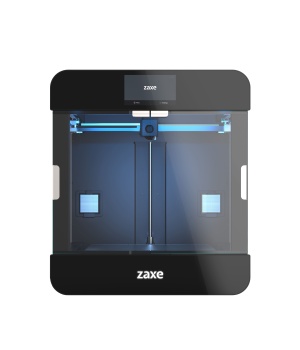

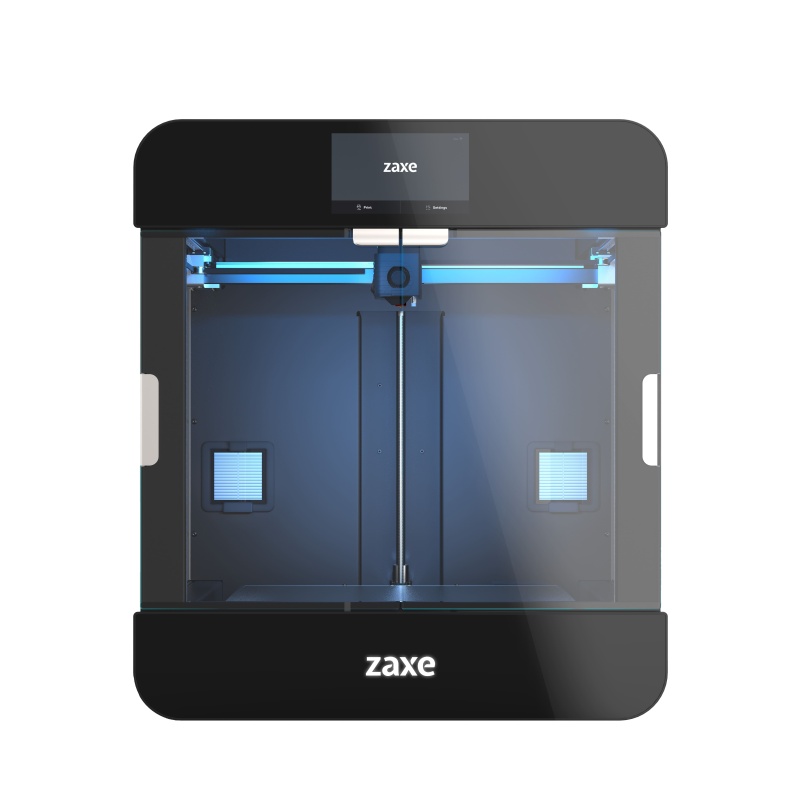

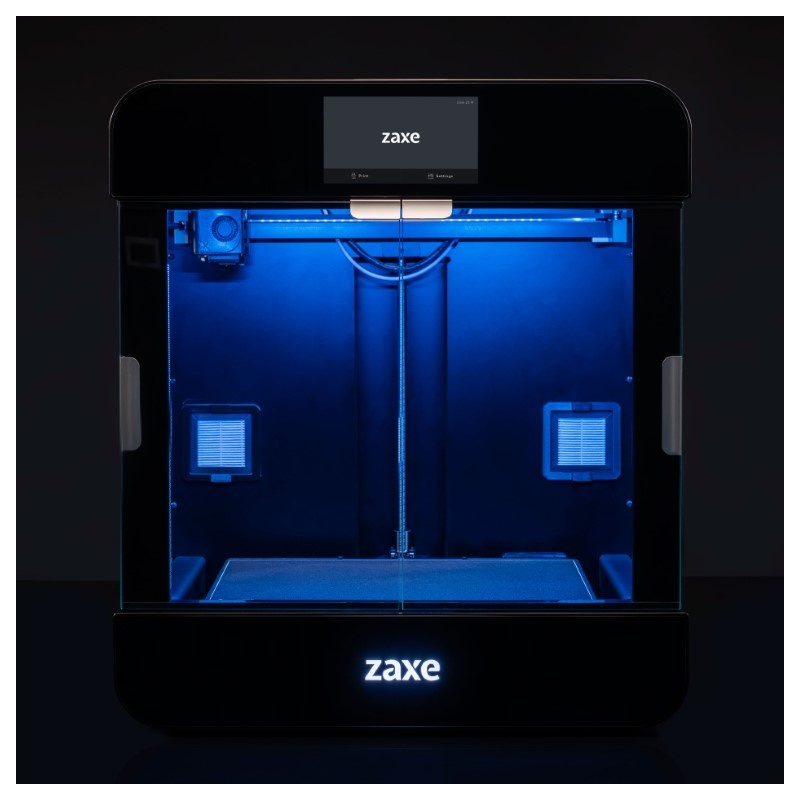

Zaxe Z3S offers the perfect 3D printing experience without compromising speed.

Thanks to the E3D High Flow HotEnd, integrated AI firmware, CoreXY system and passively heated chamber, the Zaxe Z3S offers fast, accurate and reliable printing without downtime.

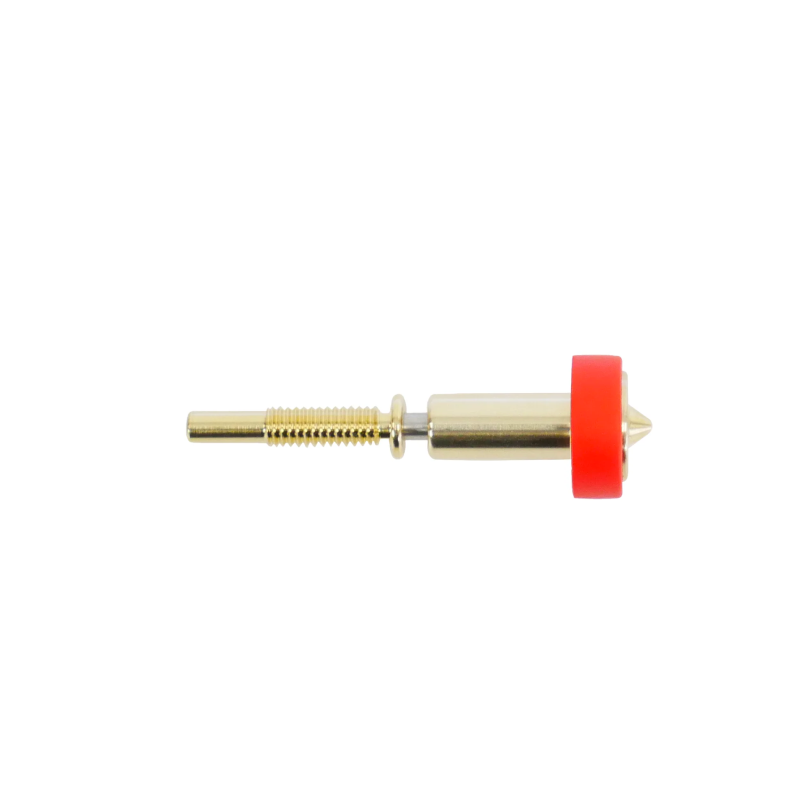

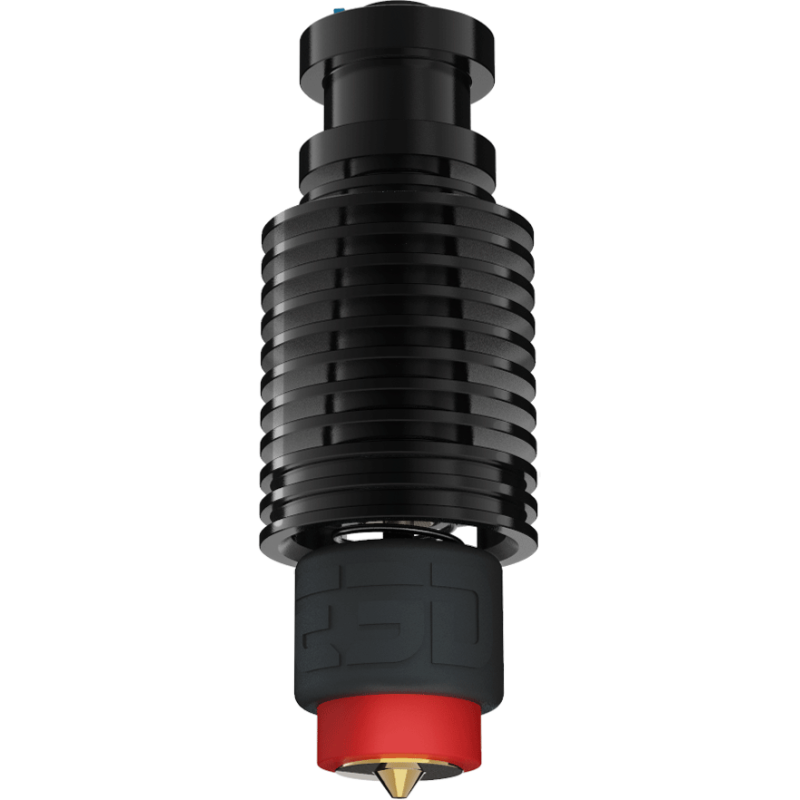

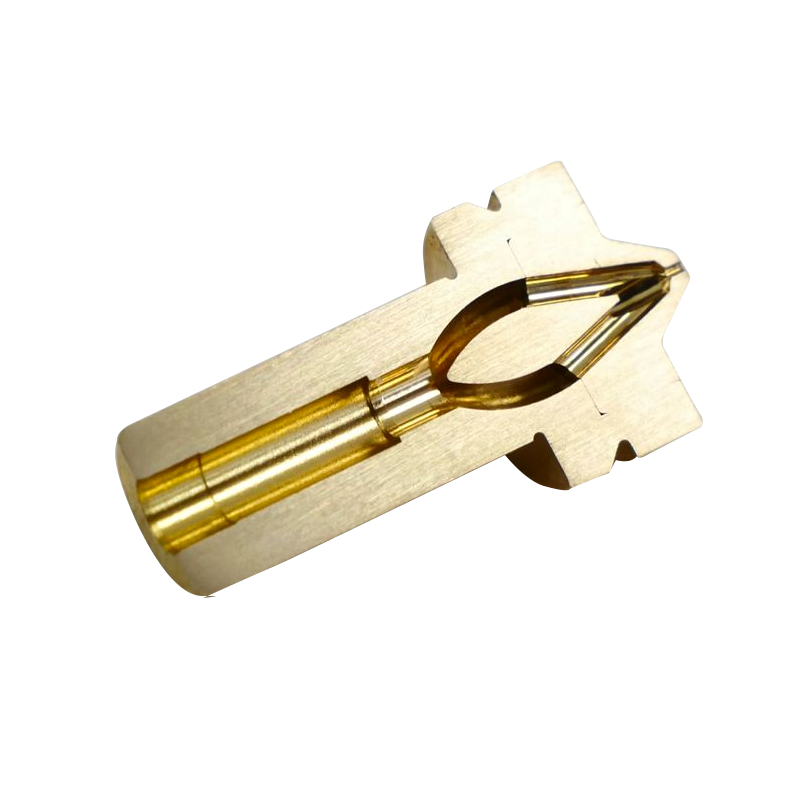

E3D Revo High Flow Printhead

Achieve optimal speed with the E3D Revo High Flow Update. E3D printheads extend the life of your Z3S while allowing you to change nozzles quickly. You get reliable performance while your print time is significantly reduced.

Innovative CoreXY mechanical system

Thanks to the innovative CoreXY mechanical system, the Zaxe Z3S offers world-class 3D printing performance. It gives you the speed, precision, and consistency to take your production efficiency to the next level.

Fully automated calibration

The Zaxe Z3S's fully automated calibration system eliminates guesswork and reduces errors. Even novice users can achieve perfect calibration and save time using their 3D printer.

Passively heated chamber

The Zaxe Z3S has a fully enclosed, passively heated chamber that maintains constant temperatures in the print area, ensuring better and more reliable results with all material types on the market.

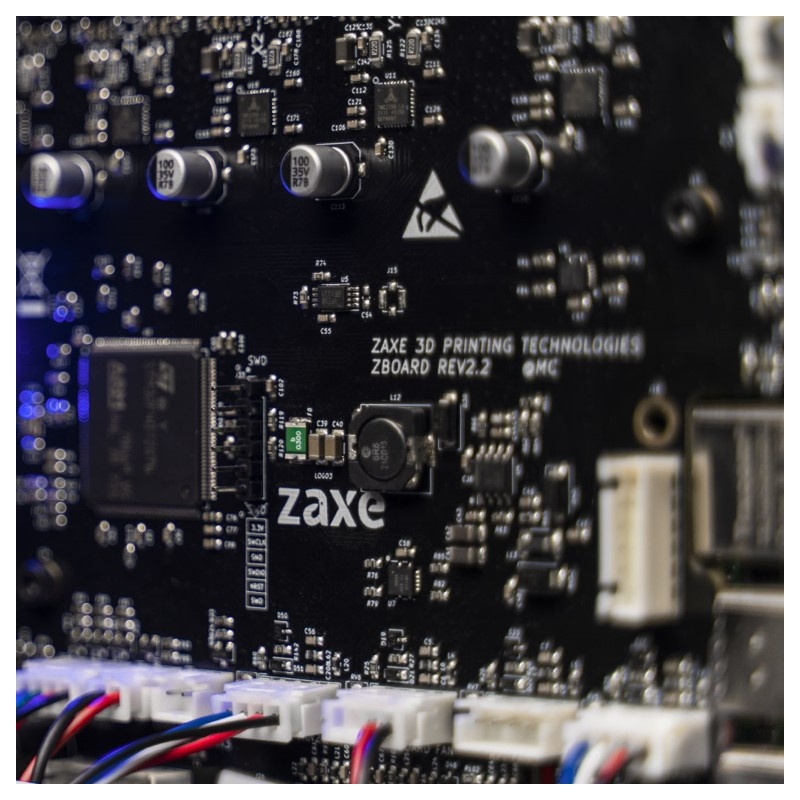

Klipper Integrated Zaxe Firmware

Klipper is the link between the Zaxe Z3S's hardware and software. As the firmware of the Zaxe Z3S, Klipper improves print times, gives you better surfaces, and increases the precision of your 3D prints.

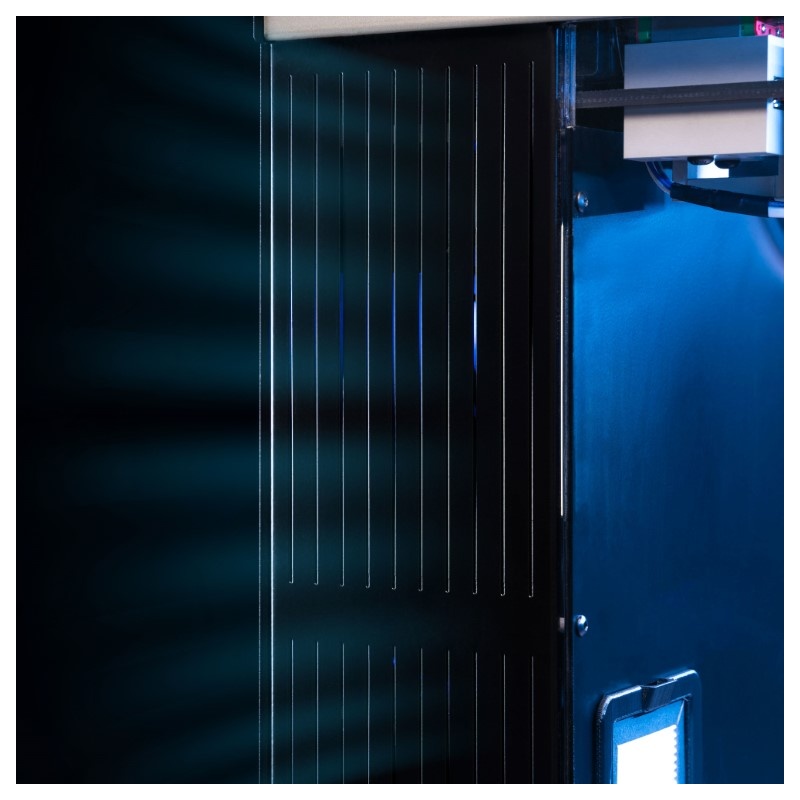

Robust steel housing

Vibrations during high-speed printing can affect print quality. The Zaxe Z3S housing is made from a single piece of steel. The sturdy frame reduces vibration during intense printing, ensuring better print quality every time.

Power failure recovery system

Don't lose your progress after a power failure. Printing is automatically paused in such cases and resumes from where it left off after the power outage ends.

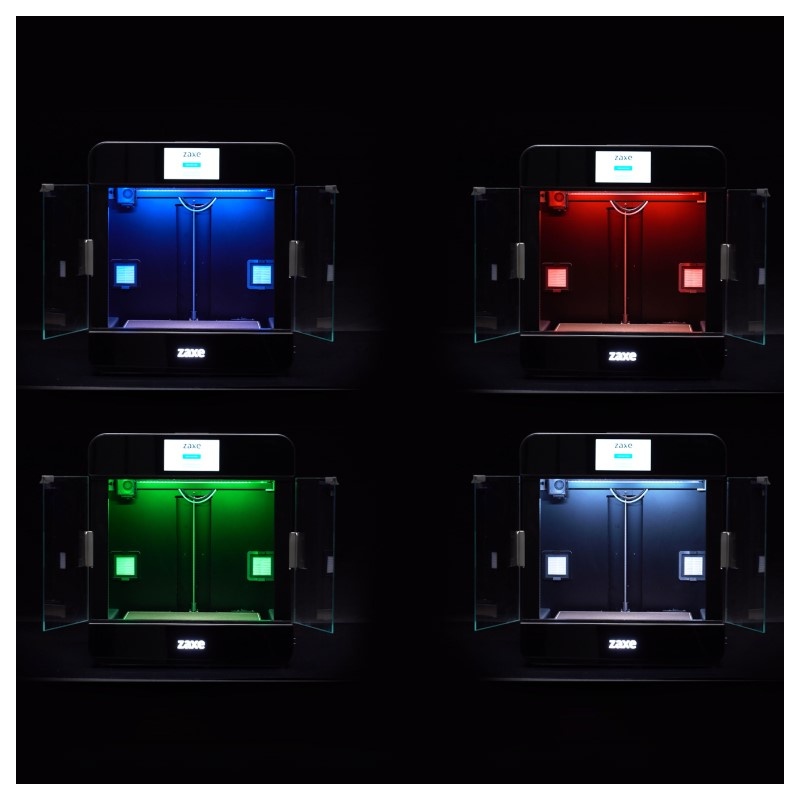

Colourful LEDs to guide you

The LED modules interact with the user by indicating the status of functions. They give you feedback on the pressure phases, so you always know your stage.

110° opening angle

We have developed a hinge system with a 110° opening angle that allows the user to enter the unit for maintenance purposes conveniently.

HEPA and CARBON filters

Responsible, environmentally friendly and reliable. The Zaxe Z3S is equipped with 2 HEPA filters designed to prevent the release of odours and harmful microparticles.

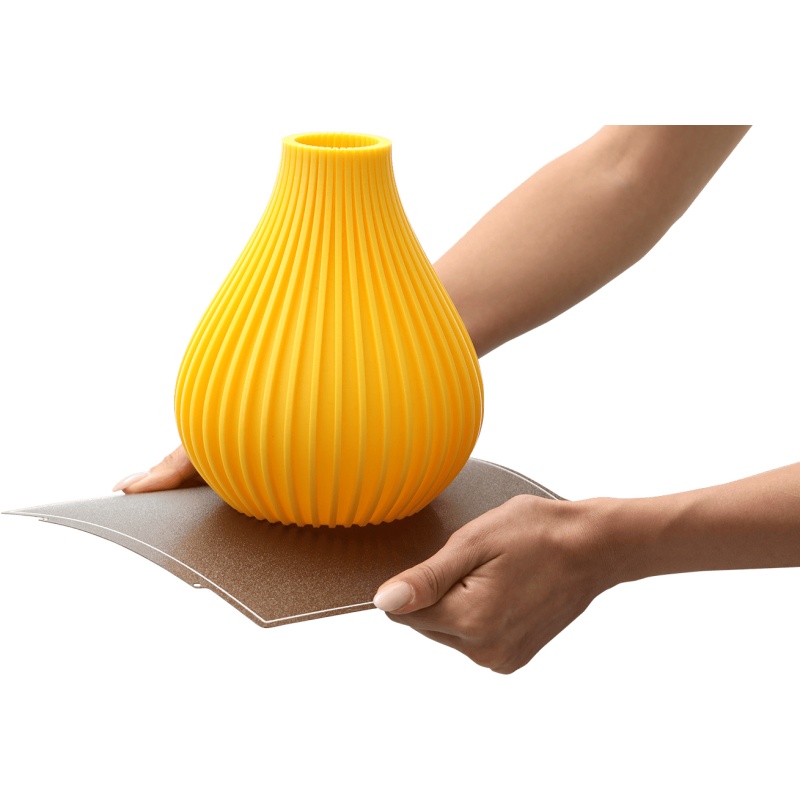

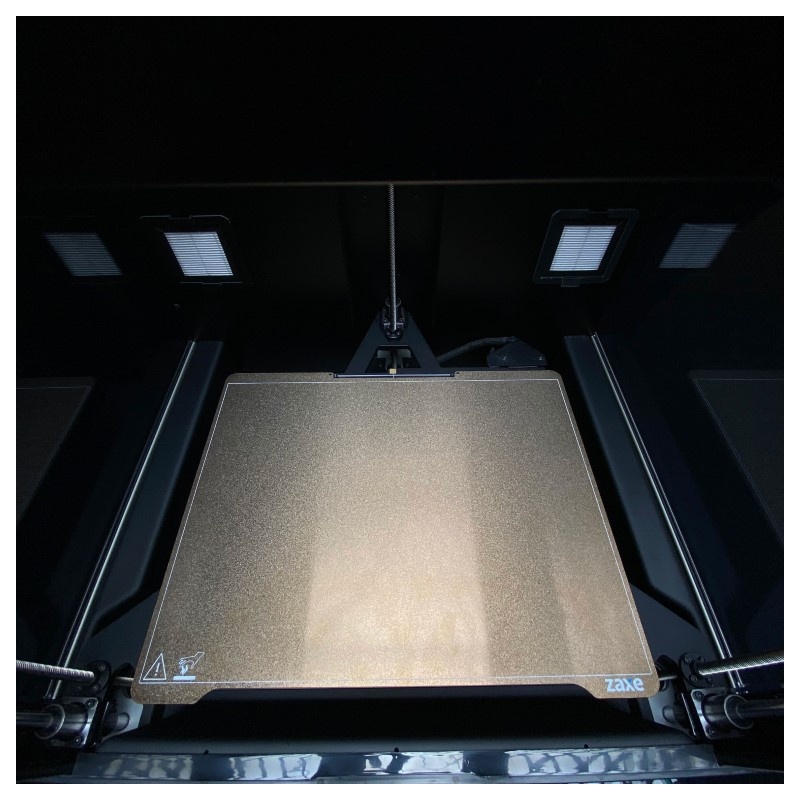

Please get to know our flexible PEI plate

Flexible
You can remove your print without the need for a scraper. The flexible spring steel structure bends easily and makes it easy to remove your print from the build plate.

Textured or smooth
You'll always have a perfect first layer. You can choose between a smooth or textured surface depending on your needs.

Magnetic
Its magnetic properties allow it to be easily removed from the heating bed and effortlessly reattached.

Technical details of the Zaxe Z3S

Dimensions: 585 x 665 x 667 mm
Construction volume: 400 x 300 x 350 mm
Printing area: Closed, heat insulated

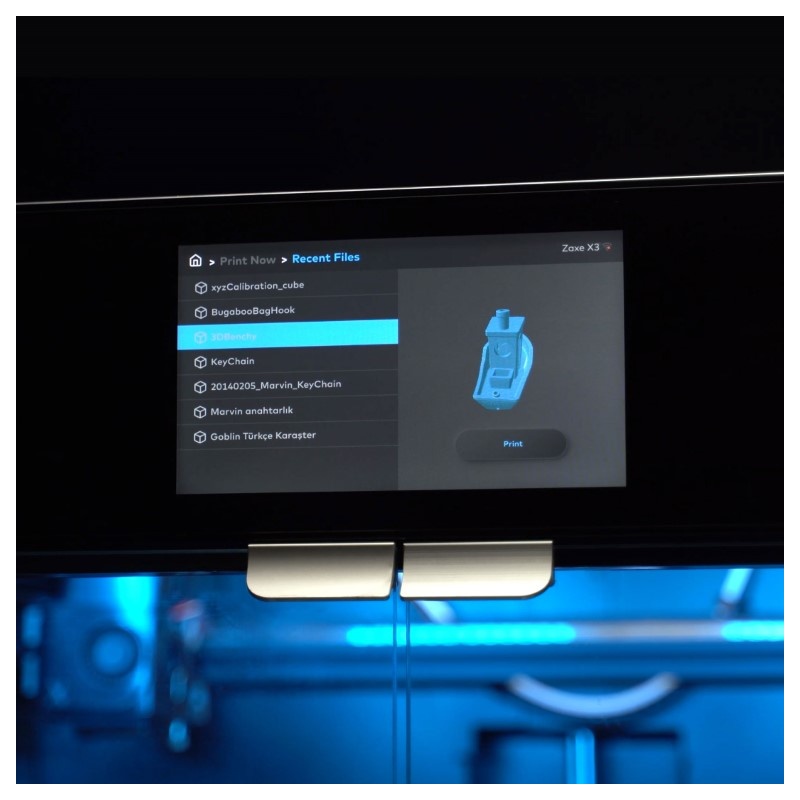

Control panel: 7" color touchscreen
Printhead: Single, E3D Revo High Flow printhead
Calibration: Fully automatic & Z Tilt
Camera: Yes
Power Failure Protection: Yes
Filament Sensor: Yes
Filter: HEPA + Carbon Filter
Warranty period: 24 months

Printing properties

Layer resolution: 25 - 600 microns
Bed Material: Double-sided flexible PEI sheet
Bed Max Temp: 110°C
Extruder Max Temp: 300°C

Software and connectivity

Software: xDesktop
Supported file types: .stl, .amf, .gcode
Connections: Wi-Fi, Ethernet, USB, flash disk

Material

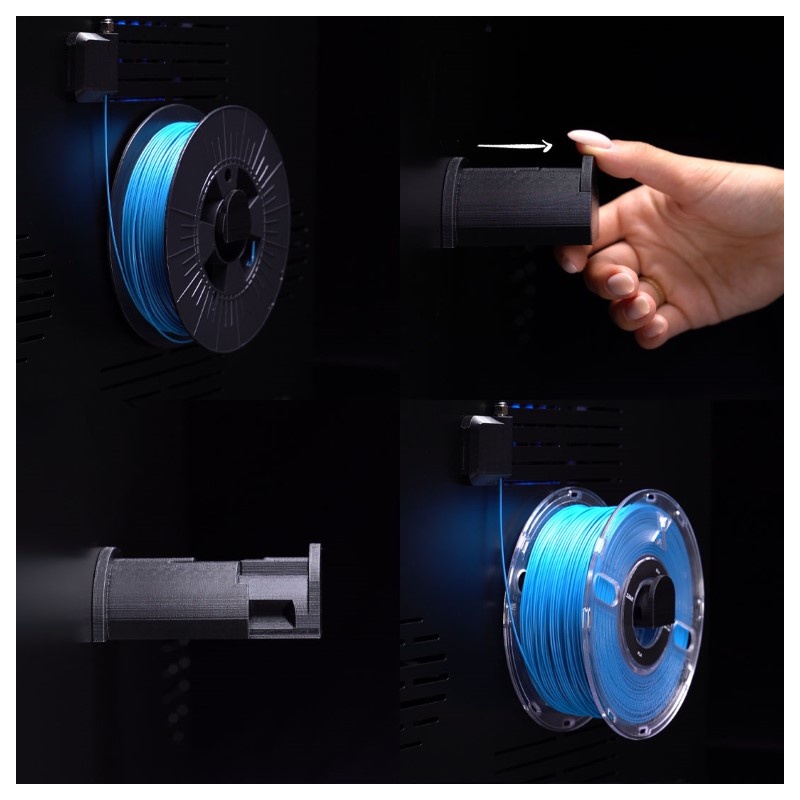

Material feed: Filament spool
Filament diameter: 1.75 mm
The supported materials are PLA, ABS, PETG, nylon, flex and carbon fibre, wood, copper, and metal-filled filaments.

 Youtube:  Zaxe Z3S
