ZORTRAX M300 DUAL

ZORTRAX M300 DUAL

Kaubamärk: Zortrax
Tootekood: 5902280825265
Tarneaeg: 14 päeva
Hind: 5490,00 €
Kogus: Lisa korvi


Zortrax M300 Dual – Industrial 3D printing quality on your desktop

Are you a professional and have high demands on quality and performance of your 3D printer? Then the Zortrax M300 Dual is perfect for you. Experience industrial 3D printing quality at a fair price – and on your desk. 3D print two materials thanks to the extruder with double hot-end and two separate nozzles.

Key features – Zortrax M300 Dual:

  • 3D print without raft – Use water-soluble support material instead
  • 265x265x300 mm building volume is suitable for most applications
  • Wi-Fi, USB and Ethernet for reliable connectivity
  • Power failure protection via capacitor for continuous 3D printing
  • Automatic calibration of the construction platform thanks to built-in capacitive distance sensor
  • This 3D printer uses the Zortrax LPD Plus Dual Extrusion technology
  • Compatible with various build platforms (perforated, glass & other construction platforms)
  • 3D print with one or both extruders filament & support material
  • Work with third-party filaments
  • Built-in camera for remote monitoring

Large construction volume for 3D printing of powerful components

Thanks to the large construction volume of 265x265x300 mm, you can create 3D prints of large components easily and in high quality. 3D print even your large masterpieces in one piece.

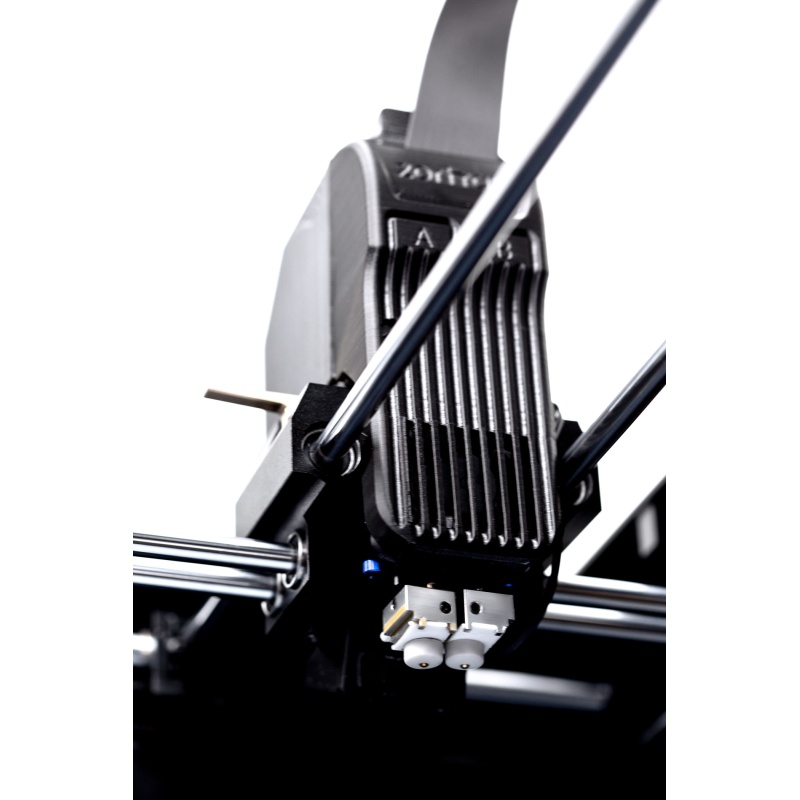

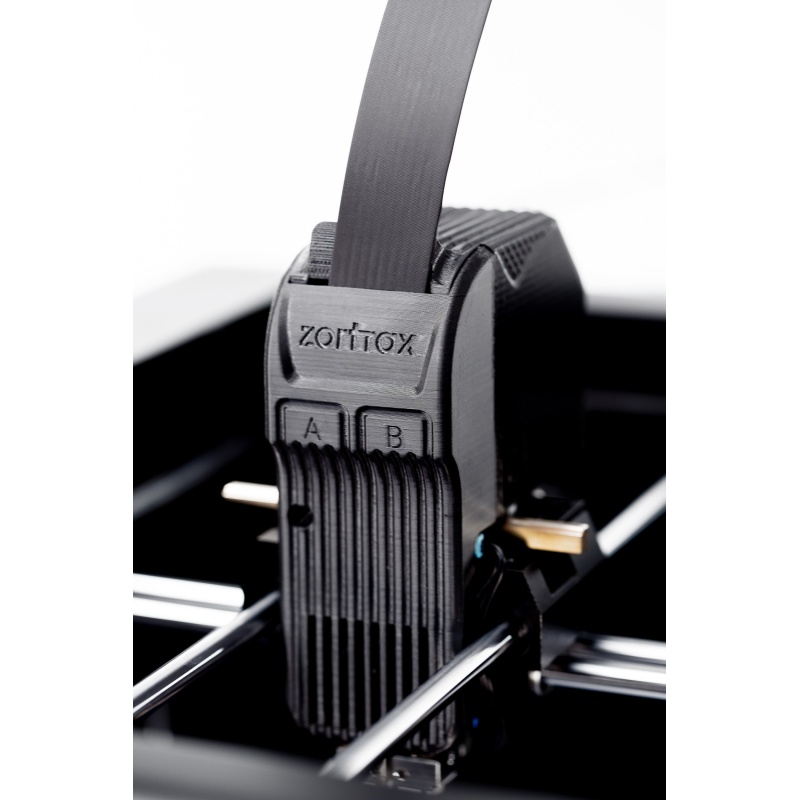

LPD Plus technology with 2 extruders

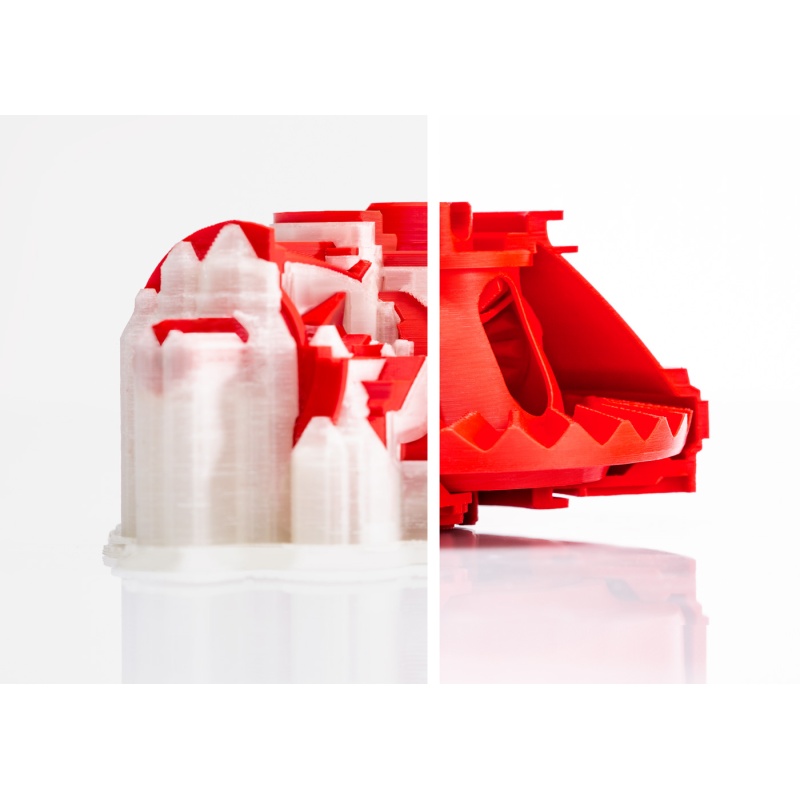

The LPD Plus technology works with two nozzles and a double hot end. 3D print complex parts and objects with undercuts without a hard-to-remove support structure. On one extruder you 3D print with your main material and on the other with water-soluble support material.

Intelligent backup system in the event of power outages

Your Zortrax M300 Dual is smart. It detects a power outage. Its control software pauses your 3D printing and remembers the exact position of the extruder. When the power returns, the Zortrax M300 resumes your 3D printing at the same location. This feature eliminates the need for false 3D printing. Save your filament, your time and your nerves.

Capacitive sensor

The built-in capacitive sensor measures the distance between extruder and construction platform. Always 3D-print with the optimal distance, independent of the used building platform. This makes calibration simple and automated.

Advanced filament control

The Zortrax M300 Dual automatically interrupts 3D printing when filament stops or oozing or clogging occurs.

3D print with external materials

Third-party filaments wound on standard spools are fully supported in both single and dual extrusion modes.



Technical specifications
Usable Nozzle Type Zortrax M Plus
Usable Filament Diameter 1.75 mm
Max Nozzle Temperature 310 ºC
Open Filament System Yes
Extruder Type Direct drive
Build Area 265 mm x 265 mm x 300 mm
Dual Build Area 265 mm x 265 mm x 300 mm
Build Plate Temp Max 105 ºC
Build Plate Material perforated and coated
Build Plate Attachment magnetic
Build Plate Leveling System capacitive sensor
Build Chamber During Process Open or Closed
Extruder Number Of 2
Extruder Construction Type Dual Dual-head with electronic lifting system

Installation Space / Requirements
Total Mass Overall Dimensions 568 mm x 477 mm x 680 mm
Total Weight 42.35 kg
Ambient Operating Temperature 20°C - 30°C
Max Power Consumption 400 W
Voltage AC: 110 V, 5,9 A / 230 V, 2,5 A (50/60 Hz)

Equipment
Hepa Filter Option
Filament Runout Sensor Yes
Filament Clogging Sensor Yes
Power Loss Fail Safe Yes
Touch Screen Yes
Camera Yes

Connection
USB Port Yes
Ethernet Port Yes
WLAN Yes
Cloud Control Yes

Accuracy
Layer Height 0.15 - 0.3 mm

Shipping
Shipping Box 565 mm x 570 mm x 830 mm
Shipping Weight 53.5 kg
