RAISE3D PRO2 PLUS

RAISE3D PRO2 PLUS

Kaubamärk: RAISE3D
Tootekood: 4005
Ühik: tk
Tarneaeg: Tellimisel: 14 päeva
Hind: 4878,78 €
Kogus: tk Lisa korvi


PRODUCT DESCRIPTION

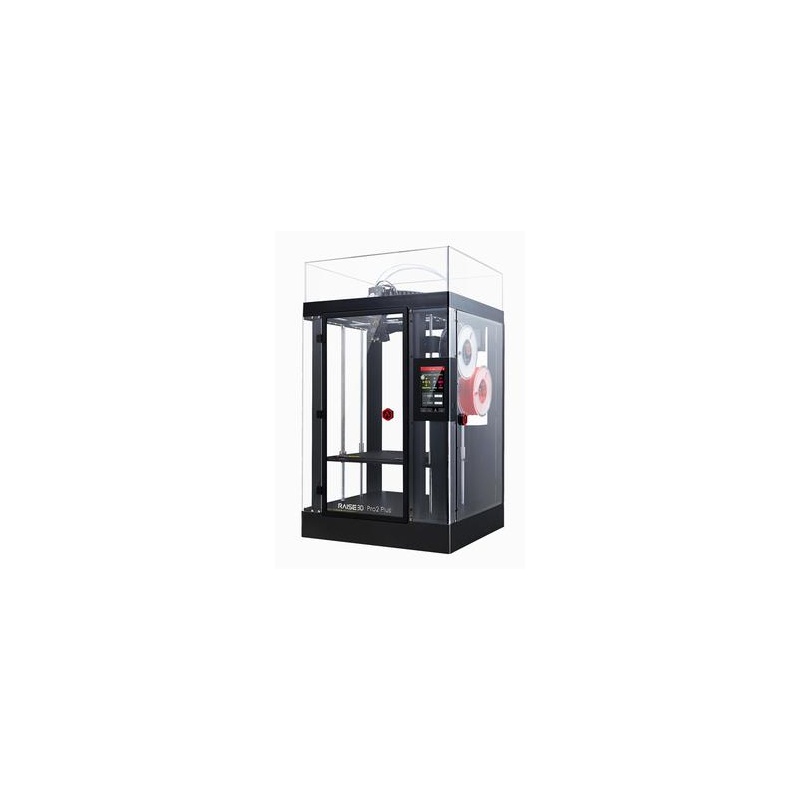

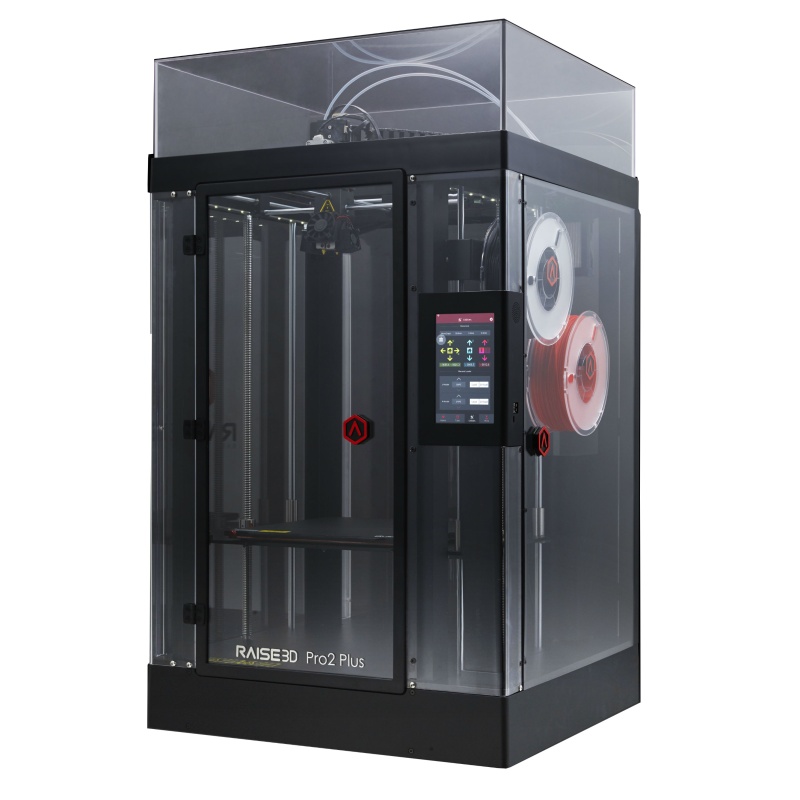

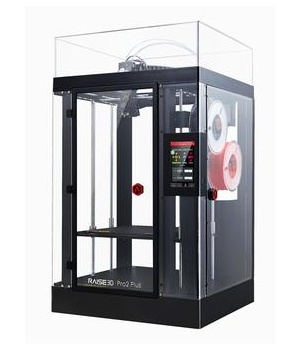

Raise3D Pro2 Plus – Large volume FFF / FDM Dual Extruder 3D Printer

Raise3D stands for development of high-qualityreliable and affordable 3D printers. Realize components in convincing quality with this Raise3D Pro2 Plus Dual Extruder 3D printer. Furthermore, you can use this 3D printer to produce small series and prototypes quickly and inexpensively. In contrast to the Pro2, the Plus variant offers a higher building height by 30 cm in the Z direction – now 60,5 cm high. Enter now into the professional Additive Manufacturing.

The most relevant new features of the Raise3D Pro2 Plus are:

  • FFF / FDM Dual Extruder 3D printer
  • Optimized extruder head with improved nozzle
  • Precise electronic control of the build platform
  • Built-in filament sensor
  • Silicone print bed for high temperatures
  • Aluminium magnetic bed with comfortable 4 + 9 point lock system
  • Safe and environmentally friendly thanks to air filter

Further optimizations:

  • Built-in camera
  • Optimized Nozzle
  • Upgraded hot-end
  • Very extensive accessories
  • Improved factory calibration
  • High quality optical end stops
  • Software controllable active cooling fan
  • Massive build space: 305 x 305 x 605 mm

High-quality 3D printing

You will be impressed by the Raise3D Pro2 Plus. Your 3D prints are impractical, complicated and the finished parts are of inferior quality? That was yesterday. The Raise3D Pro2 Plus convinces with many smart functions. There are currently very few 3D printers on the market that combine all the crucial functions in one device. And if so, then these devices are many times more expensive than the Raise3D Pro2 Plus.

This 3D printer can be easily operated through its 7-inch color touch display. Surely you can use your smartphone? If so, you can handle the interface of the Raise3D Plus. By using the simple controls, you have your 3D printer always under control. Bring your digital masterpieces to life now.

Thanks to its enormous space, you can also produce very large objects and prototypes. Your components can reach an edge length of 305 x 305 x 605 mm. On top of that, the building chamber of this 3D printer is fully enclosed. This allows you to process more sophisticated materials such as ABSHIPSPET-GPLA+PP and ASA. Heat the build platform up to 110 ° C and the extruder up to 300 ° C. Realize your creative ideas now.

Raise3D Pro2 Plus offers an open system and can work with a variety of materials from most third-party manufacturers. The filaments only require a 1.75 mm diameter. Determine which filament from which supplier you use.

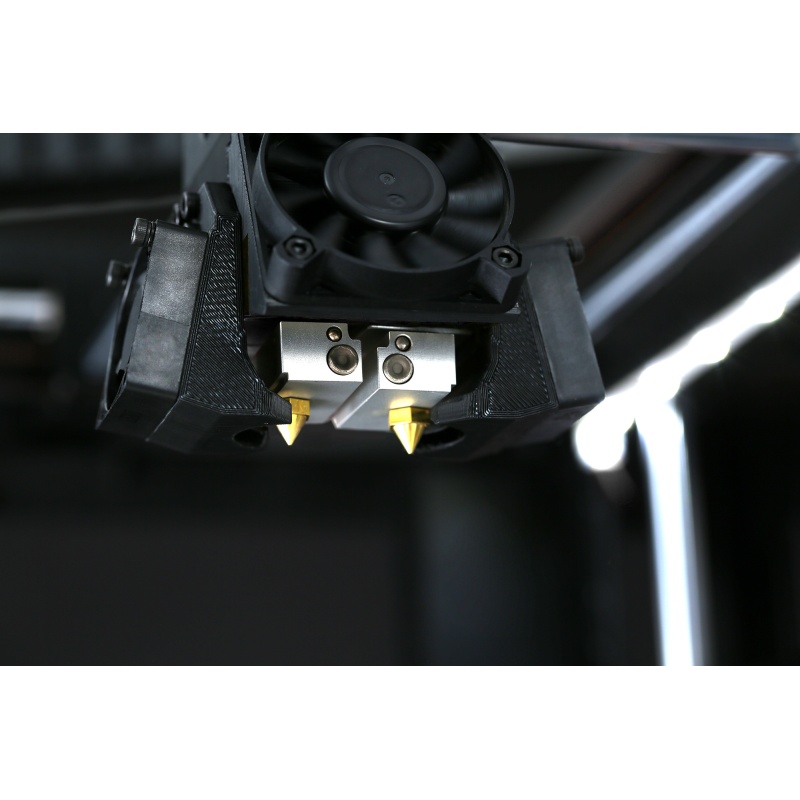

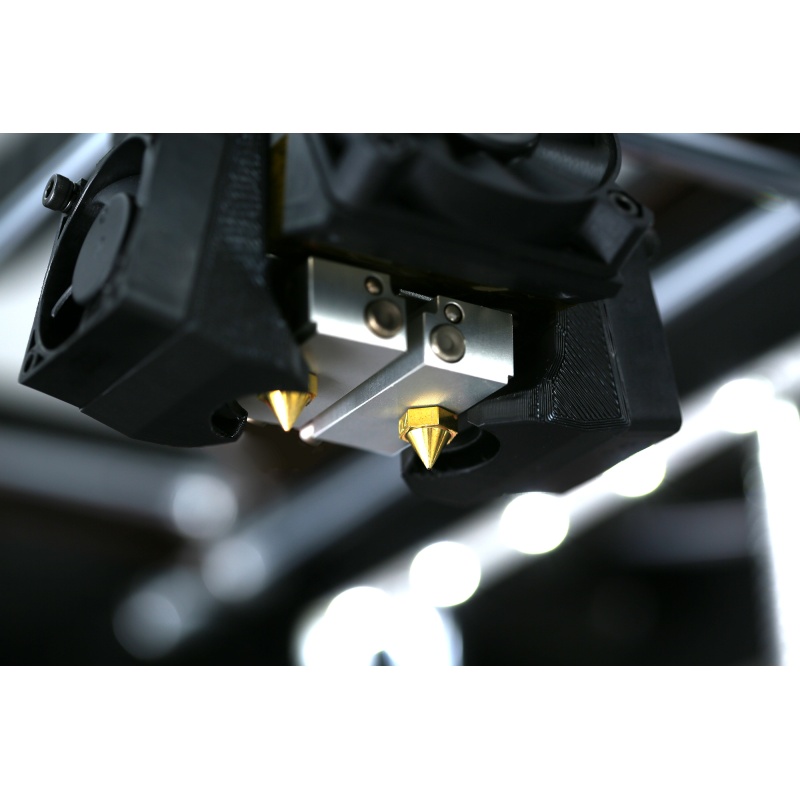

Improved dual extruder

  • Precise control of the build platform
  • Optimized extruder head with increased torque output and dual gear drive
  • Optical filament sensor - This will show you and immediately stop the 3D printer when the filament runs out. After reloading, you can simply restart working.

Thanks to the dual-extruder, you can make objects from two different filaments, materials or with support material. If you process PVA or HIPS filament in the second extruder, you can realize very complex components with overhangs. Simply dissolve the support filament after the finished 3D printing and you will get a convincing result.

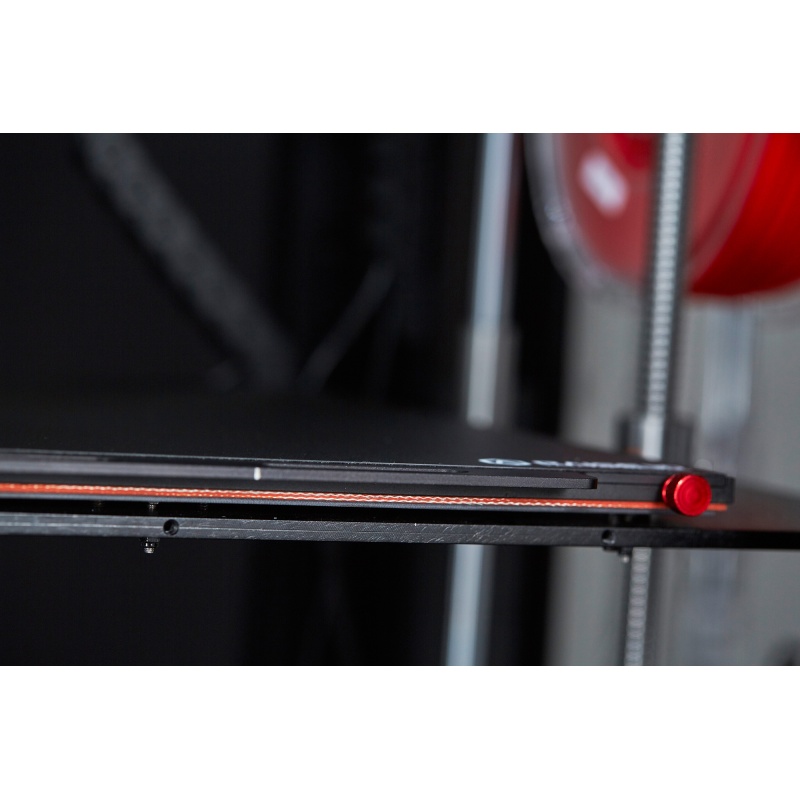

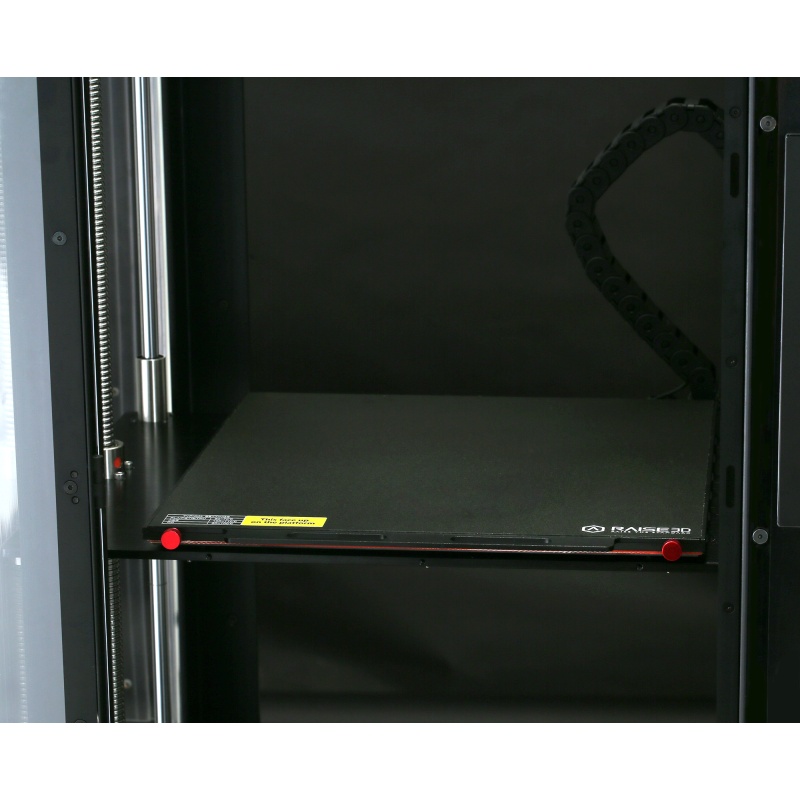

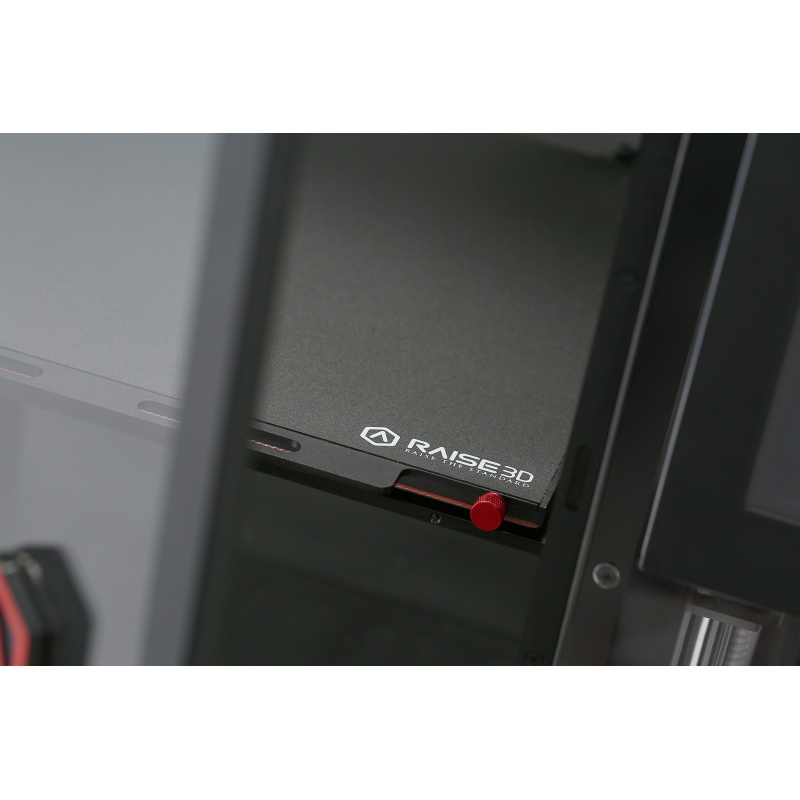

New 3D printing bed

Now the Raise3D Pro2 Plus works with a new heating bed made of silicone. This increases the adhesion of your components on the build platform. The substrate of the construction platform consists of a magnetic aluminum profile. This is equipped with an improved 4 + 9 points lock system.

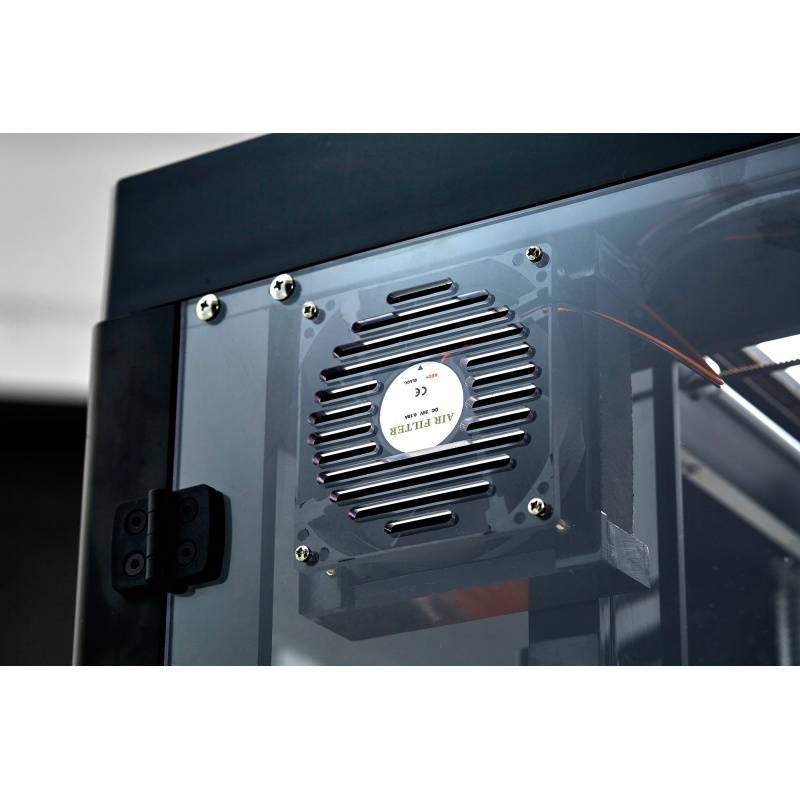

Air filter for improved air quality

Clean air is important to us all. This is true even if we talk about 3D printers. With the Raise3D Pro2 Plus, the air in your environment remains clean and free of harmful substances. The integrated air filter cleans the exhaust air.

Resume function

Fast production

The Raise3D Pro2 Plus allows you to produce at high production speed and a superior 3D printing quality. In the Z direction, very high resolution of up to 0.01 mm layer thickness can be achieved. Make fine structures and very smooth surfaces. The best way to work only with small objects with such a high resolution. Otherwise the construction time will be greatly increased.

Additional updates:
  • Improved factory calibration
  • Integrated camera
  • High quality optical end stops
  • Improved nozzle design
  • Hot-end upgrade
  • Very extensive accessories
  • Software controllable active cooling fan
  • Large building volume: 305 x 305 x 605 mm
Delivery:
  • 1x Raise3D Pro2 Plus 3D printer with dual extruder
  • 2x spools of PLA filament (1.00 kg each)
  • 2x metal bars for cleaning the hot ends
  • 1x tweezers
  • 1x set of Allen keys
  • 1x Scratcher
  • Various fuses
  • 1x power cable
  • Printed instructions

Buy the Raise3D Pro2 Plus to get an affordable extra large volume FFF / FDM dual extruder 3D printer.





TECHNICAL SPECIFICATIONS



Construction and Technical Details

Usable Nozzle Typ:         Raise3D Pro2

Usable Filament Diameter:          1,75 mm

Nozzle Temperatur Max:             300 °C

Open Filament System:  Yes

Extruder Type:  direct drive

Printing Speed Max:       150 mm/s (depends on material)

Build Area:         305 mm x 305 mm x 605 mm

Dual Build Area:               303 mm x 280 mm x 605 mm

Heated Build Plate:         Yes

Build Plate Temperature Max:   110 ºC

Build Plate Surface:        BuildTak

Build Plate Material:       Aluminum plate

Build Plate Attachment:               magnetic /screws

Build Plate Leveling System:        Pre-calibrated - manual Leveling

Build Chamber During Process:  Open or Closed

Filament Chamber Closed:          Yes

Extruder Number:           2

Extruder Construction Type: Dual            Dual-head with electronic lifting system



Installation Space / Requirements

Total Mass:        590 mm x 620 mm x 1105 mm

Total Weight:     59,3 kg

Operating Ambient Temperature:            15°C - 30°C

Power Consumption Max:           600 W

Voltage:              AC: 100 V, 3,3 A / 230 V (50/60 Hz)



Equipment

Hepa Filter:        Yes

Filament Runout Sensor:              Yes

Powerloss Fail Safe:        Yes

TouchScreen:     Yes

Camera : Yes

Memory Internal:            Yes

Memory Capacity:          8 GB



Connection

USB:      Yes, 2 x USB-A

Ethernet-Port:   Yes

WLAN:  Yes

Cloud Control:   Yes



Accuracy

Layer Height:     0,01 mm - mm



Shipping

Shipping Box:    690 mm x 730 mm x mm

Shipping Weight:             79,6 kg
