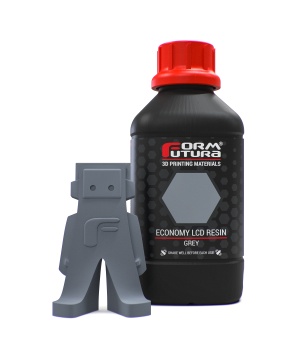

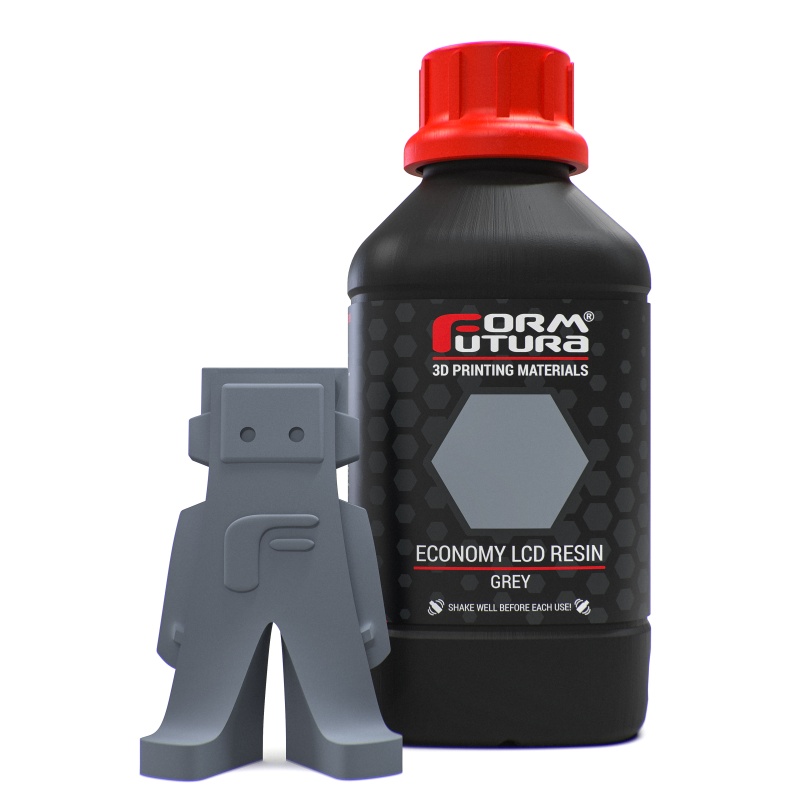

Economy LCD Resin Grey

Economy LCD Resin Grey

Kaubamärk:
Tootekood: 8720629062358
Ühik: tk 1000g
Tarneaeg: 3 päeva
Hind: 30,20 €
Kogus: tk 1000g Lisa korvi

FormFutura Economy LCD Resin is our entry-level 3D printing resin. This resin is ideal for beginners and prints with a very limited smell. It combines accuracy with short curing times and a nice matte surface finish. Our Economy LCD Resin makes resin 3D printing more accessible.

Resin printing doesn't have to be more expensive than 3D printing with filament!

Important key features
  • Easy to use general purpose LCD resin.

  • Excellent printability properties & limited smell.

  • Matte surface finish with fine detail.

  • Good compatibility with all DLP and LCD / MSLA 3D printers in the range of 385 – 420nm.



Suitable applications

  • 3D printing figurines, miniatures and models.

  • 3D printing functional prototypes.

  • 3D printing end-use products.

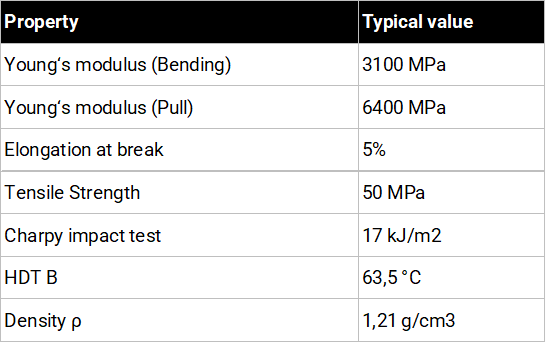

Physical properties after post-curing
The data provided for those properties are typical values and should not be construed as sales specifications.

Specimen printed in ZYX Orientation (ISO 52921) and examined according to ISO 17296-3.





Please note that the above-displayed values can vary with individual machine processing, post-curing parts,  geometry, print orientation, print settings, and temperature.
Specimens are printed on an Elegoo Mars 2 Pro at 23°C and 50% humidity with a 0,05mm layer height and 4,5 seconds exposure time per layer.
Specimens have been post-cured for 30 minutes with 200W and 405nm UV LED conditioned for 72 hours at 23°C and 50% humidity.


Preparation(s) before starting to print

  • Shake the bottle for at least 2 minutes before each use.

  • After shaking the bottle, leave the resin to rest for 10 minutes to let air bubbles get out of the resin

    • The resin can be poured back from the vat into the bottle once your print is finished

  • Always use protective measurements like safety glasses and nitrile gloves when handling resins.



Post-processing

  • We do advise you to post-process your 3D print in order to achieve the material properties

    • Rinse your 3D printed object in IPA or (Bio)Ethanol for approximately 5 minutes

  • An ultrasonic cleaner is preferred/recommended

    • Make sure that IPA and/or (Bio)Ethanol rinsed objects are perfectly dry before further post-curing

  • Place the rinsed parts in a well-ventilated area for at least 30 minutes, or use pressurized air for at least 2 minutes

    • Cure your object in a high power curing chamber for approximately 20-30 minutes at 65° C

  • The preferred curing wavelength is between 300-410nm



Safety

Please always be aware that when 3D printing with resins that you are working with chemicals and that you should always be cautious and use the personal protective equipment as stipulated in our safety data sheets.

  • Always wear Respiratory Protection when sanding/cutting the resin object.

  • Always use nitrile gloves when handling resins and uncured resin objects.





Product export information

HS Code: 29161400 Description: Resin for 3D Printing Country of origin: European Union
