SNAPMAKER J1S 3D PRINTER

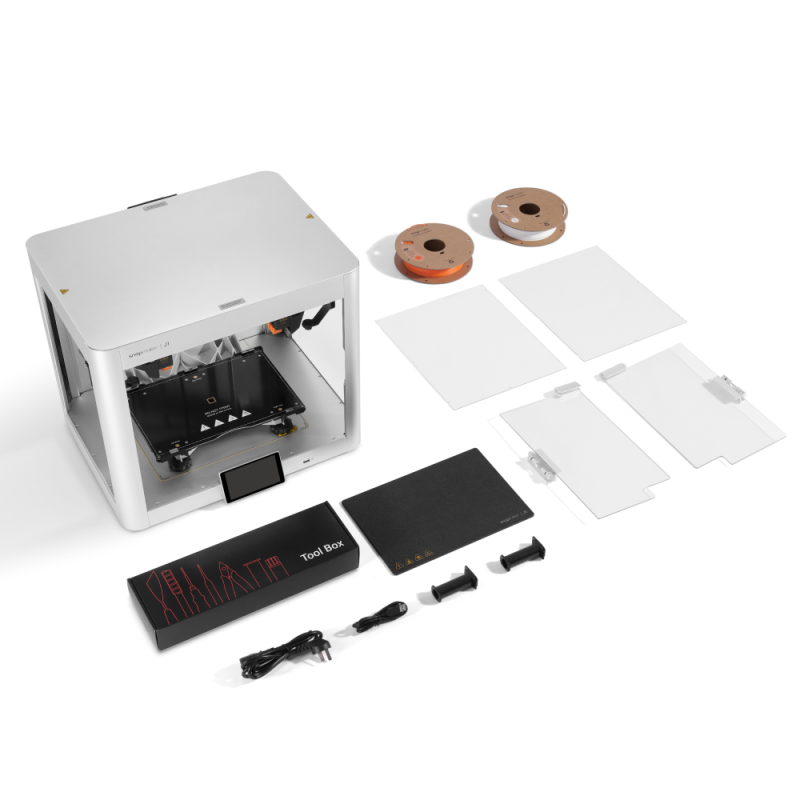

Snapmaker J1s – Print Cooling Fan Included, and 3D-printer is mainly pre-assembled.

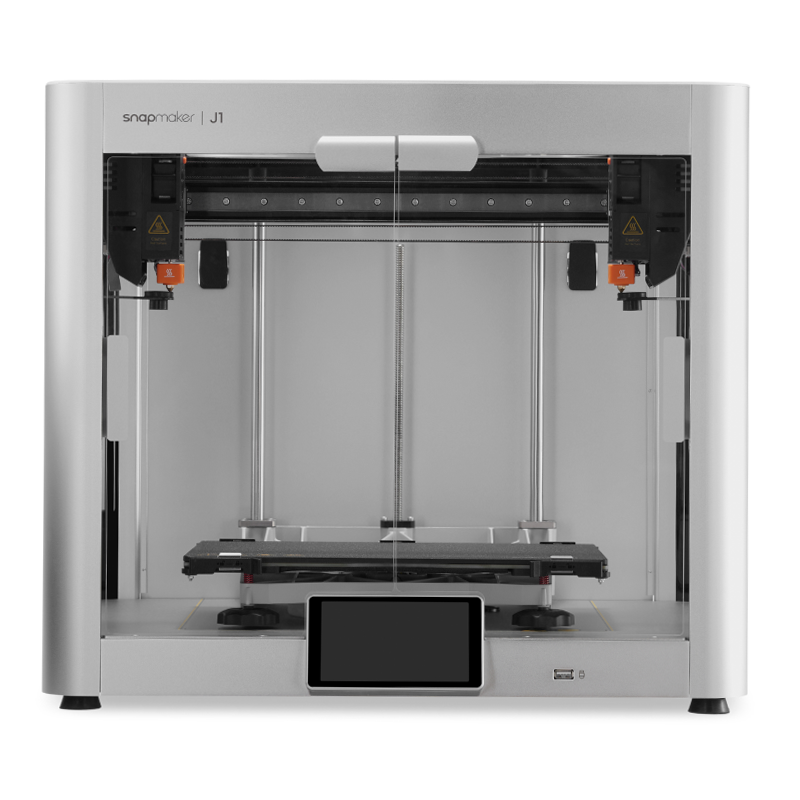

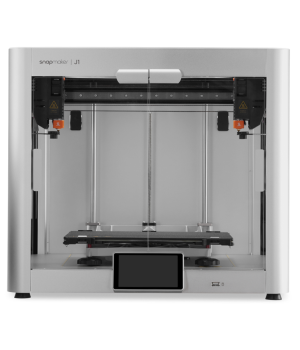

Snapmaker J1 3D Printer features independent dual extruder (IDEX), ultra-fast print speed, and smoothing optimisation. With cast and machined parts, linear rails, intuitive software, and user-centred designs, J1 is also refined and solid.
- Dual-material printing
- Breakaway supports and dissolvable supports for effortless removal
- Copy Mode and Mirror Mode that double productivity
- Up to 350mm/s printing speed and up to 10000mm/s² acceleration
- Ultimate rigidity from the one-piece die casting, high-precision linear rails and aluminium alloy frame
- 5-inch Intuitive Touchscreen
|Construction and Technical Details|
|Usable Filament Diameter||1.75 mm|
|Max Nozzle Temperature||300 ºC|
|Open Filament System||Yes|
|Extruder Type||Direct drive|
|Build Area||300 mm x 200 mm x 300 mm|
|Build Plate Temp Max||100 ºC|
|Build Plate Surface||PEI|
|Build Plate Material||glass|
|Build Plate Attachment||clamp|
|Build Chamber During Process||Open or Closed|
|Extruder Number Of||2|
|Extruder Construction Type Dual||IDEX - Independent Dual Extruders|
|Installation Space / Requirements|
|Total Mass Overall Dimensions||539 mm x 401 mm x 464 mm|
|Total Weight||25 kg|
|Ambient Operating Temperature||10°C - 35°C|
|Max Power Consumption||400 W|
|Voltage||AC: 100 V - 240 V, 4,4 A (50-60 Hz)|
|DC: 24 V|
|Memory Internal||Yes, 8 Gbyte|
|Layer Height||0.05 - 0.3 mm|
Fast Index Printing
Compared with a multi-material unit on a single extruder, IDEX dual-material printing requires less time in filament changing and creates less waste. Plus, IDEX offers the cleanest two-extruder solution that prevents cross-contamination.
Print in Parallel
Halve your wait time, and double your productivity. IDEX is the only extrusion system with two separate extruders moving independently on the X-axis, enabling you to run two prints simultaneously.

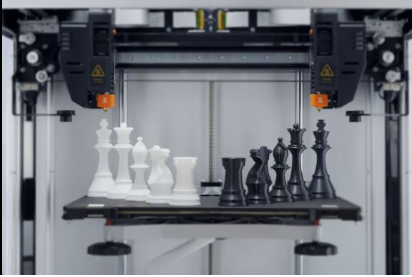

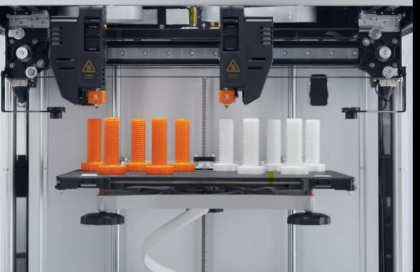

Copy Mode: Print two identical objects in one go. It is especially suitable for batch printing, empowering studios, and enthusiasts. If one of the prints runs into an issue, you can stop that print without affecting the other. This mode is a lifesaver for a promised delivery on a tight schedule.
Mirror Mode: J1 directly mirrors your model and prints the original and the mirrored one in one go. You can import half of a symmetrical model and publish it in Mirror Mode to cut your wait time by 50%, perfect for quick drafts and concept models. Like in the Copy Mode, you can stop one print without affecting the other.
J1 brings you a top-of-class printing speed of 350 mm/s while ensuring a high resolution of prints. It is made possible by the optimisation of the vibration compensation technology. This technology reduces the vibrations caused by high-speed movements, minimising ringing to enhance print quality. With a maximum acceleration of 10,000 mm/s², you can quickly realise small models packed with details.
Seamless Extruders Switching and Cornering Optimization
During dual extrusion printing, the non-working extruder preheats while on standby and starts printing right after the working extruder leaves, significantly reducing your waiting time. By analysing the extruders' moving directions ahead of time, J1 can prevent problems like corner bulges, delivering better print quality at corners.
Speed Ensured by Elaborate Hardware Design

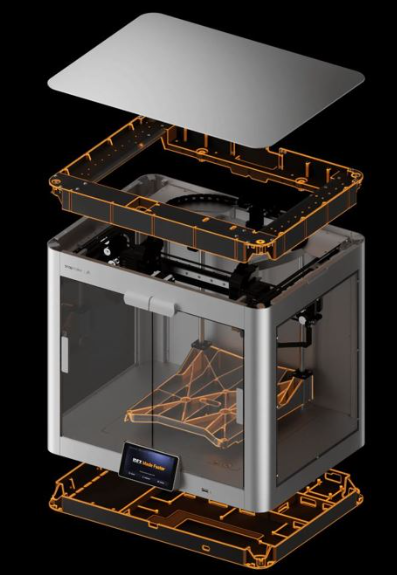

One-piece Die Casting: J1's body comprises an upper frame, a base made by one-piece die casting, and four aluminium alloy bars. Making the body with just a few highly integrated parts—an approach long adopted by the automotive industry—facilitates precision assembly. J1 is so rigid and reliable, with minimal wobble and deformation possible, that you can print large projects one after another for a long time and get all prints of uncompromising quality.
High-precision Linear Rails: The industrial-grade linear rails are made by CNC grinding at the micron level, ensuring smooth and steady movements. A significant rise in precision, rigidity, and durability for you to savour a fast, accurate, and stable-making experience.
Aluminum Alloy Frame: J1 inherits Snapmaker's iconic all-metal design, which users highly value for its rigidity and durability. It provides better heat dissipation with the main board and power supply spread out on the base and aluminium alloy as its primary material. All electronic components are well-oiled at your command.
Breakaway & Dissolvable supports
Building and removing support can look like rocket science sometimes. Still, we've done the math for you–steady support, clean interface, effortless removal, and minimal post-processing needed to maintain high dimensional accuracy. Breakaway filament offers the same support as everyday materials but is much easier to remove without further post-processing. J1 supports PVA and other dissolvable materials. Soak the print, and the supports dissolve, leading to a smooth surface and excellent dimensional accuracy. This is for you when you are looking for complex geometry, hollow structures, and exquisite details.

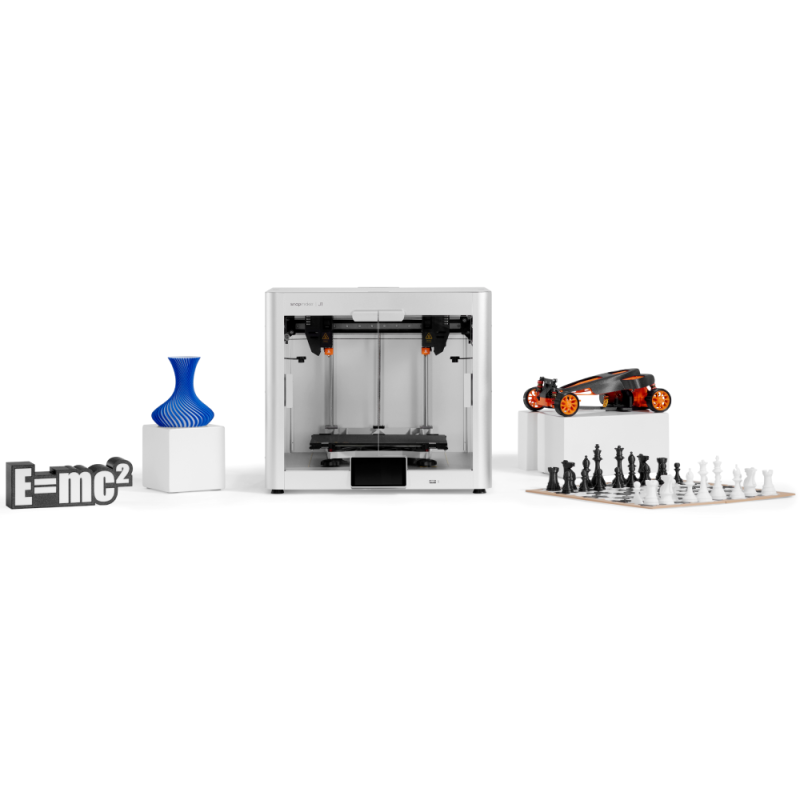

In one print, you make the most of two sets of properties. Combine the strength of nylon with the flexibility of TPU for functional parts. Print also multi-part objects. The thing attains stronger interconnections with no assembly, making it less prone to impairment.
Advanced Extruder Technology
300°C Hot Ends: 300°C maximum nozzle temperature is handy when you print with high-temperature filaments, like nylon, reinforced nylon, and PC. With silicone hot-end socks preventing heat loss, filaments melting and heating up are much faster. Anti-clogging designs make the flow as smooth as possible.
Dual Direct Drive: Excellent extrusion accuracy that aids in the extrusion of flexible filaments, along with the high responsiveness of dual direct drives to make deposition faster, smoother, and more accurately controlled. It is built with a filament sensor to inform you and pause the print job in the case of filament runout, nozzle clogging, and other abnormalities that fail filament loading.
Compact Extrusion Path: The compact extrusion path of a unique design allows you to print seamlessly with TPU and many other flexible materials.

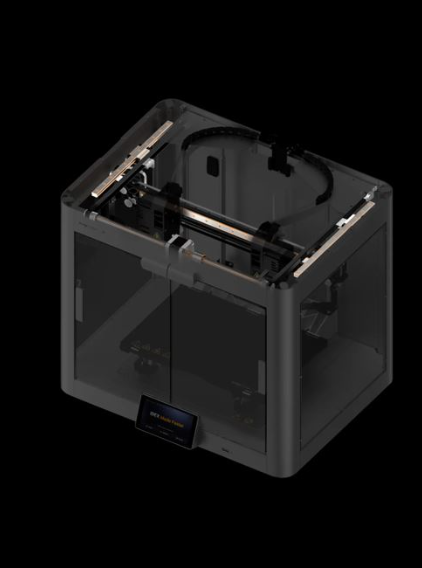

Enclosed Space: It provides stable ambient conditions to facilitate the consistently reliable performance of high-temperature materials. For instance, it keeps ABS and many other materials from warping.
Calibration Done Easy
We utilise electrical conduction to locate the two hot ends and the heated bed and measure the distances between the three entities—a creative solution to complex IDEX calibration. This time-saver lets you complete the calibration in 10 minutes under the Assist Mode. Removing the calibration card and the judgement call reduces errors and improves accuracy.
Hands-free XY Offset Calibration: When the two hot ends touch the square opening on the heated bed, it sends out electronic signals to suggest their exact locations, and J1 calculates the offsets between them. J1 then auto-compensates the balances during printing to ensure perfect XY alignment that avoids layer shifting and improves the success rate of dual-material prints. It takes away the long learning curve and saves you from scrutinising through many lines. Tap start, and lay back for elevated precision.
Tool-free Bed Leveling: A level print bed lays the foundation for successful 3D prints, but the bed levelling of IDEX printers can be very time-consuming. Using a PEI glass plate of high flatness, J1 can downsize from a 3 × 3 (9 points) or 4 × 4 (16 points) levelling to a 3-point one without compromising levelness and downtime dropped by 70–80%. Turn the levelling wheel as guided on the touchscreen, and the bed is levelled for tip-top first-layer adhesion.
Easily-managed Z Offset Calibration: J1 can calculate the distances between the hot ends and the heated bed using electrical conduction. Thus, we could cut the step of moving the calibration card back and forth while adjusting the Z offset. Turn the thumb wheel as guided on the touchscreen, and you are now the Z offset calibration guru!

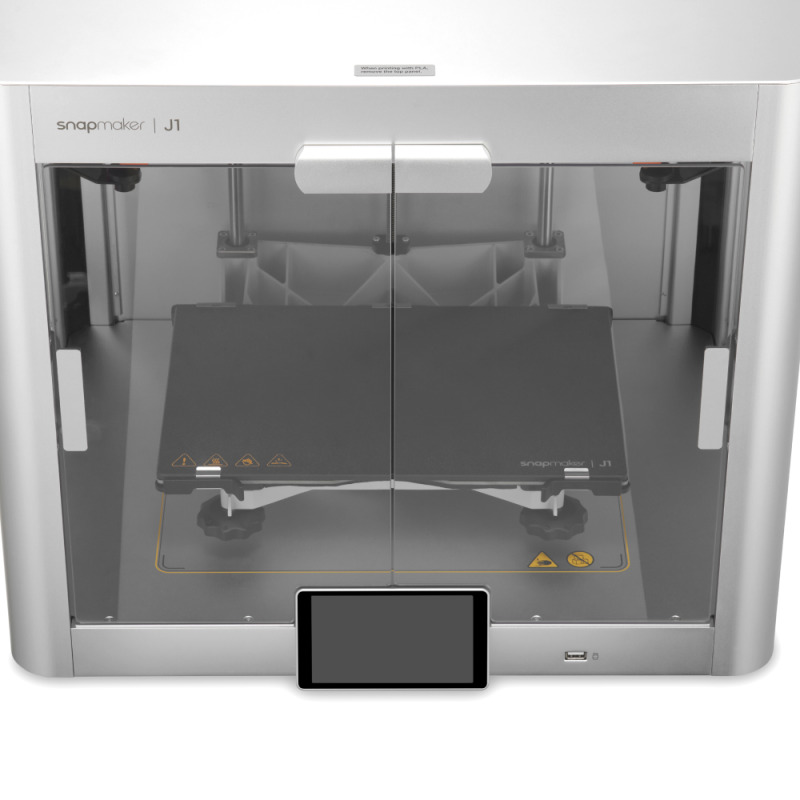

Custom PEI Glass Plate
J1's build plate is made of glass with sheer flatness, making your first layer smooth and adhesive. Glossy glass on one side and PEI coating on the other, aiding in various filaments' adhesion. The plate can be easily removed, so it is extra handy for maintenance and print removal.
Easy-swap Hot Ends
Loosen the two screws on the hot end, fix or replace the hot end, and go back to printing at once. For the adventurers going for more variations and advanced applications, we offer multi-diameter hot lots from 0.2 mm for detail accuracy to 0.8 mm for faster printing and hardened hot ends for engineering materials.
Built-in Nozzle Wipers
Scrape excessive materials off nozzles and halt the oozing from the just-active extruder to free multi-material prints from blobs and stringing. The extruder can start its print job in line without waiting for the just-active one to cool down. Switching between extruders takes much less time, once again minimising downtime.
