Shining 3D EinScan HX - Hybrid Blue Laser & LED Light Source Handheld 3D Scanner

Shining 3D EinScan HX - Hybrid Blue Laser & LED Light Source Handheld 3D Scanner

Tootekood: 6970163080604
Ühik: tk
Tarneaeg: 9 päeva
Hind: 12198,78 €
Kogus: tk Lisa korvi

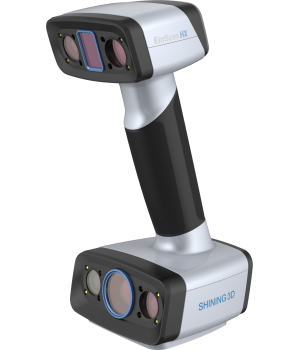

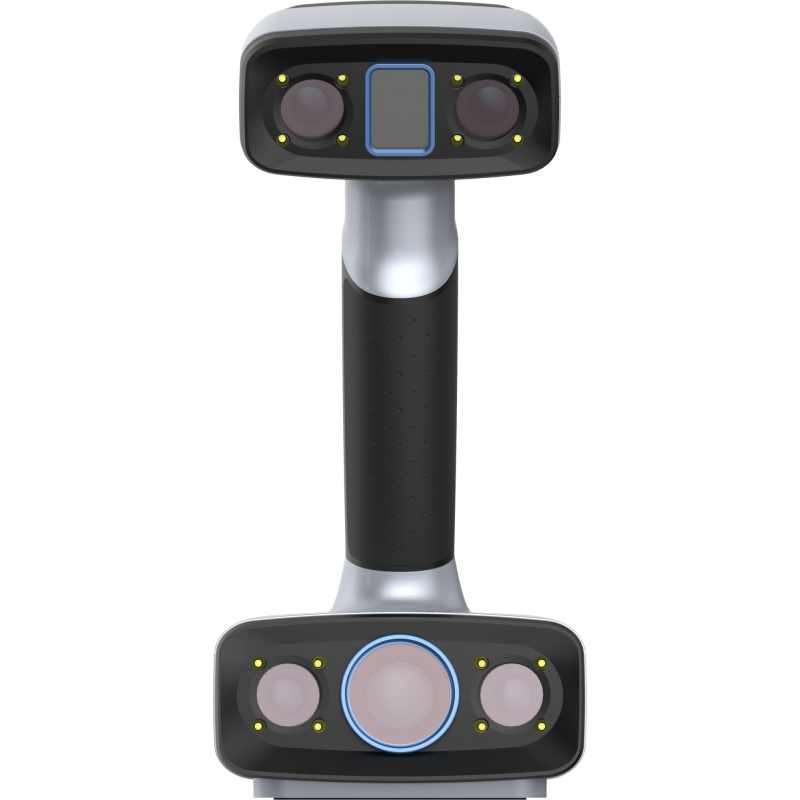

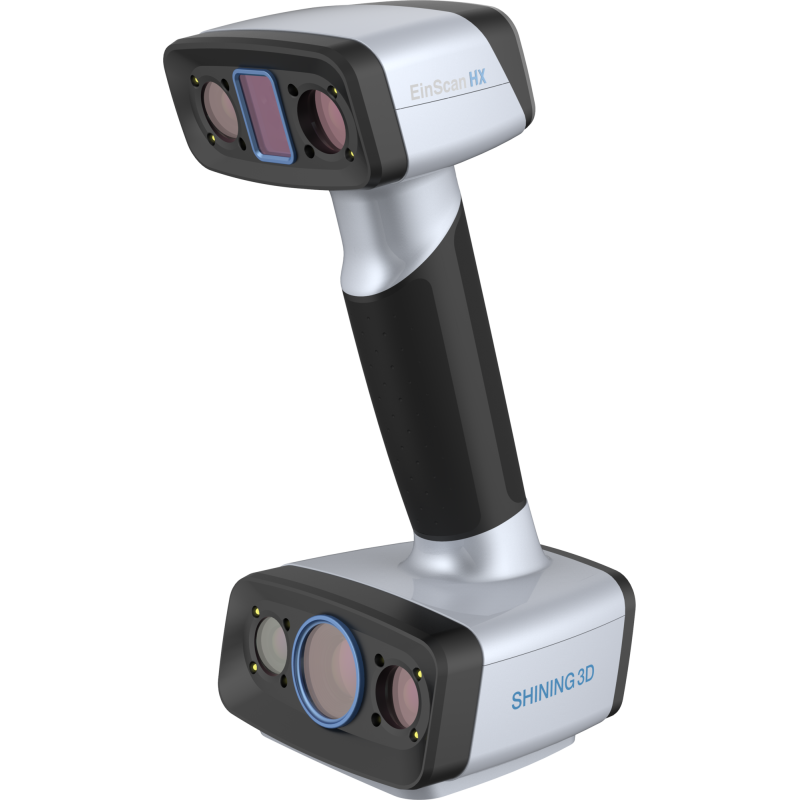

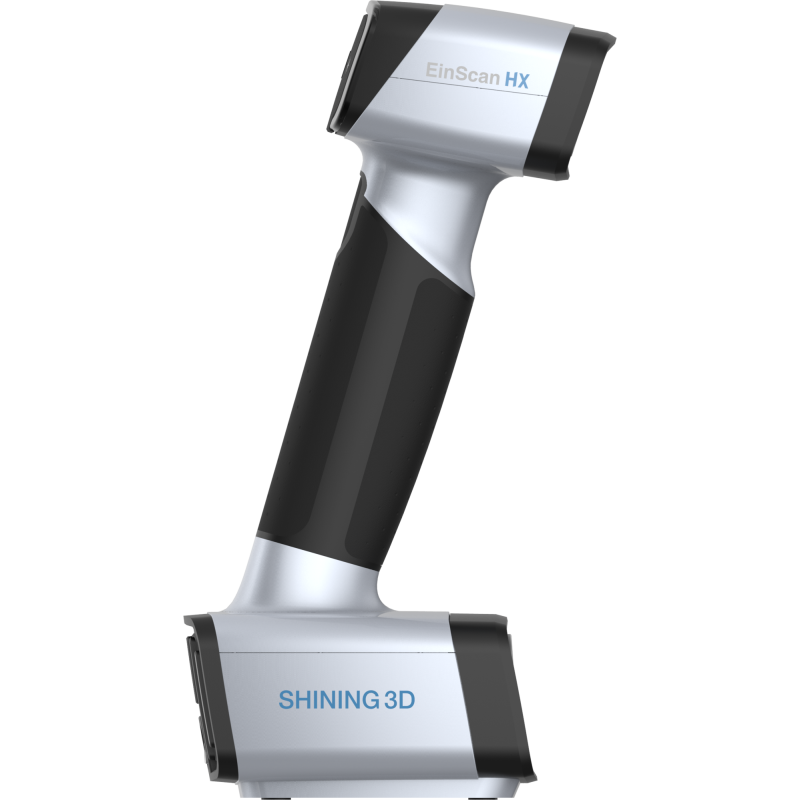

Shining 3D EinScan HX

Hybrid Blue Laser & LED Light Source
Handheld 3D Scanner

Based on years of 3D measurement experience and market demand, SHINING 3D innovatively integrates blue LED light and blue laser into EinScan HX handheld 3D scanner. The hybrid laser and LED light sources make EinScan HX compatible with a wider range of object sizes, meeting multiple needs of users. High efficiency and reliable results give EinScan HX more application possibilities.

Shining 3D EinScan HX video

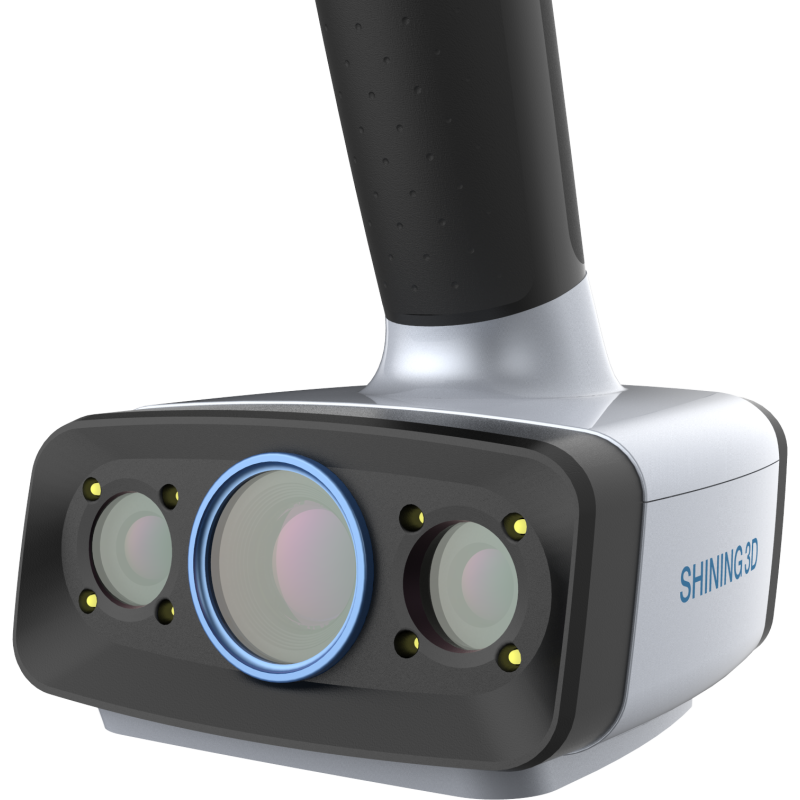

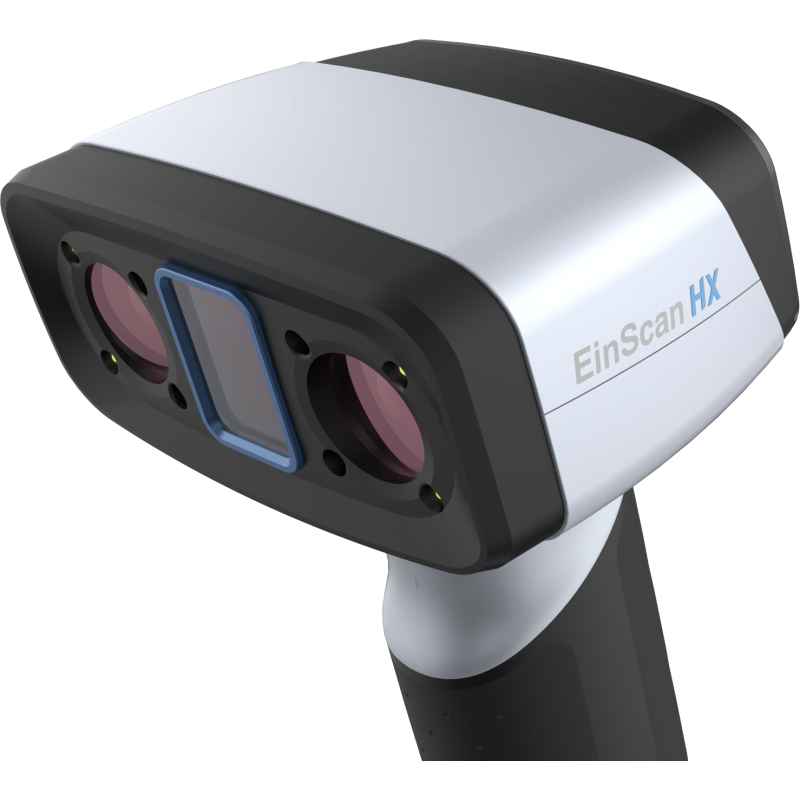

Hybrid Blue Laser & LED Light

Innovatively integrated with dual blue LED light and blue laser, it improves scanning materials adaptability with less limitation for a broader range of applications. LED light scanning allows rapid 3D scanning. Laser scanning, less sensitive to ambient light, performs better on reflective and dark colour surfaces.

Reliable Results

The high resolution and accuracy meet the needs of most industrial applications for reverse engineering and measuring.

  • Minimum point distance 0.05 mm
  • Accuracy up to 0.04 mm under Laser Scan

High Efficiency

The processing speed of EinScan HX under Rapid Scan Mode is up to 1,200,000 points/s, and multiple blue laser lines under Laser Scan Mode make scanning of most objects in minutes for reverse engineering, CAD/CAM, 3D printing, etc.

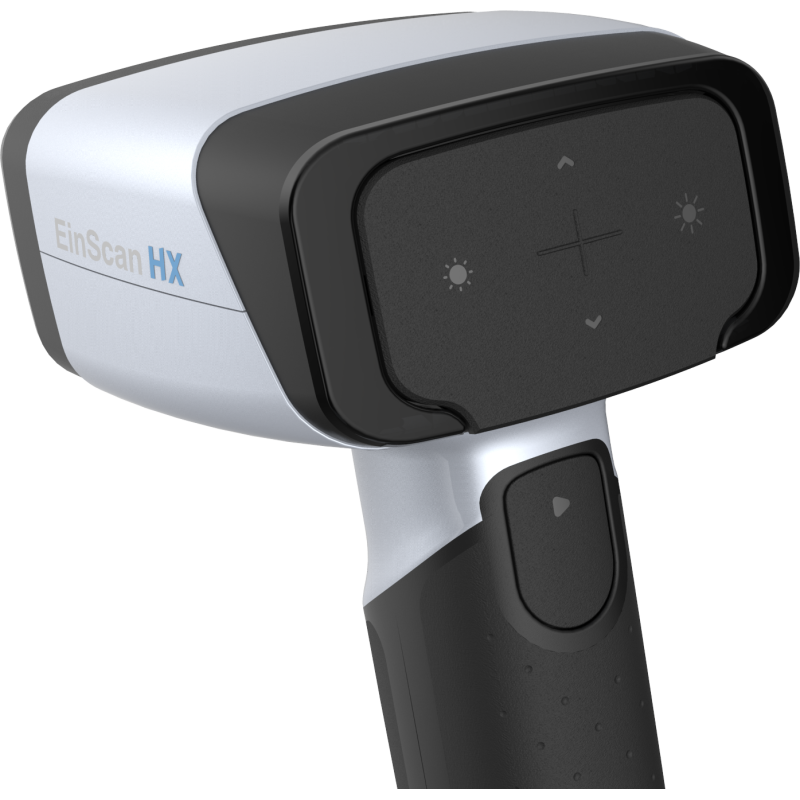

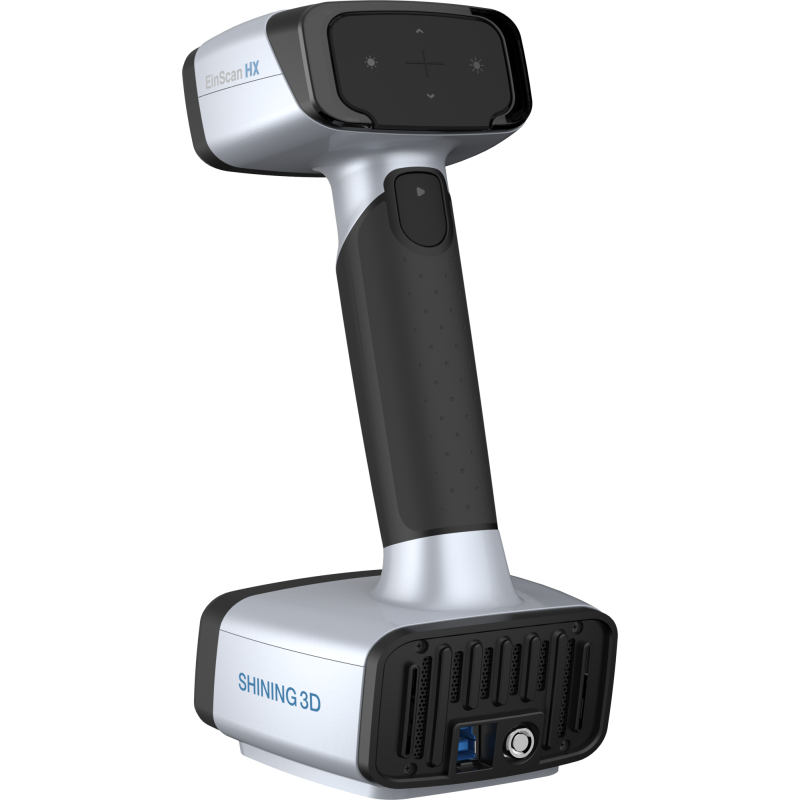

Portable & Easy Operation

EinScan HX is plug-and-play with user-friendly software that is easy to operate, whether you are a newbie or have professional experience in 3D scanning. The portability and flexibility use of EinScan HX has been considered in its ergonomic design for a more efficient and comfortable scanning experience.

  • Ergonomic Design
  • Weight:710g

Full Color

With the built-in colour camera, it supports
Full-colour texture capturing and tracking by texture.

EinScan HX Reverse Engineering Design Bundle

A hybrid light source 3D scanner with reverse engineering and CAD capabilities.




Scan Mode

Rapid Scan

Laser Scan

Scan Accuracy

Up to 0,05 mm

Up to 0,04 mm

Volumetric Accuracy

0,05 + 0,1 mm/s

0,04 + 0,06 mm/m

Scan Speed

1.200.000 points/s 20 FPS

480.000 points/s 55 FPS

Align Modes

Feature-, Markers-, Texture-, Hybrid Alignment

Markers Alignment

Camera Frame Rate

55 FPS

55 FPS

Working Distance

470 mm

470 mm

Depth of Field

200 - 700 mm

350 - 610 mm

Maximum FOV

420 x 440 mm

380 x 400 mm

Point distance

0,25 - 3 mm

0,05 - 3 mm

Light Source

Blue LED

7 Blue Laser Crosses



Class I (Eye-safe)

Built-in Color Camera


Texture Scanning

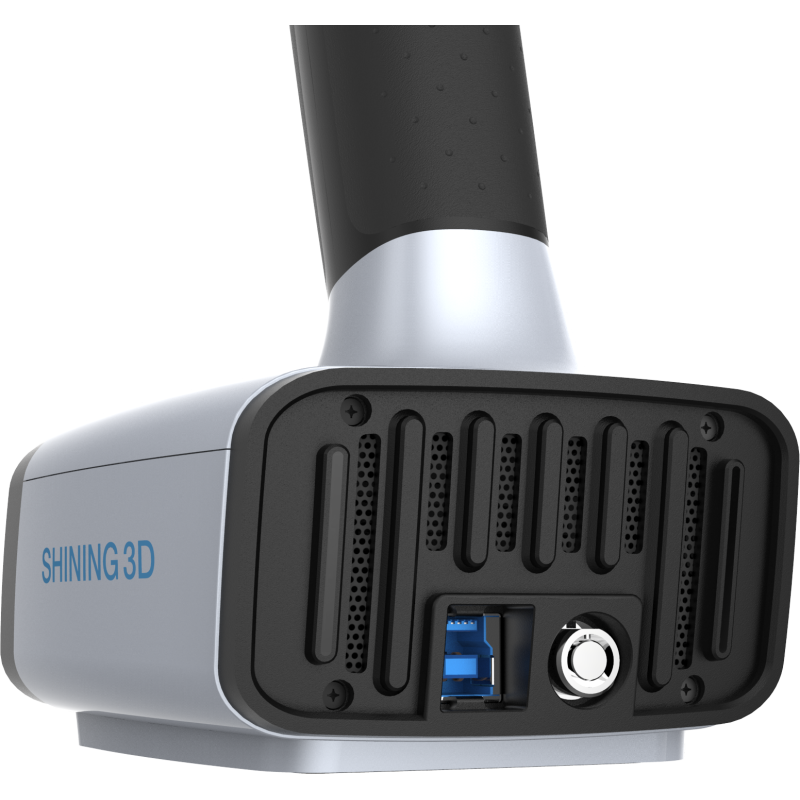

Connection Standard

USB 3.0

Output Format



108 x 110 x 237 mm


710 g



Recommend Configuration

OS:Win10, 64 bit; Graphics card: NVIDIA GTX1080 and higher; Video memory > 4GB; Processor: I7-8700; Memory: >32GB
