Graveerimiseks oleks vajalik komplekt lisada OLM3 seadmele:

• Feet (ORTUR LASER MASTER 3 FOLDABLE FEET)
• Platform (ORTUR LASER ENGRAVING PLATFORM)
• Enclosure (ORTUR ENCLOSURE 2.0)
• Smoke Purifier (ORTUR SMOKE PURIFIER 1.0)

Lõikamiseks  oleks vajalik komplekt lisada OLM3 seadmele:

• Feet (ORTUR LASER MASTER 3 FOLDABLE FEET)
• Platform (ORTUR LASER ENGRAVING PLATFORM)
• Enclosure (ORTUR ENCLOSURE 2.0)
• Smoke Purifier (ORTUR SMOKE PURIFIER 1.0)

Kui soovide suuremat pinda lõigata/graveerida:

• ORTUR LASER MASTER 3 EXTENSION KIT

Muudeks töödeks head abilised:

• ORTUR LASER MASTER 3 EXTENSION KIT
• ORTUR Y-AXIS ROTARY CHUCK

The Master 3 laser just got better! Now available with a 20w true power laser module.

This machine also includes the Ortur Air Assist pump in the box.

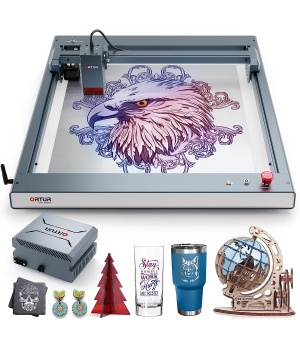

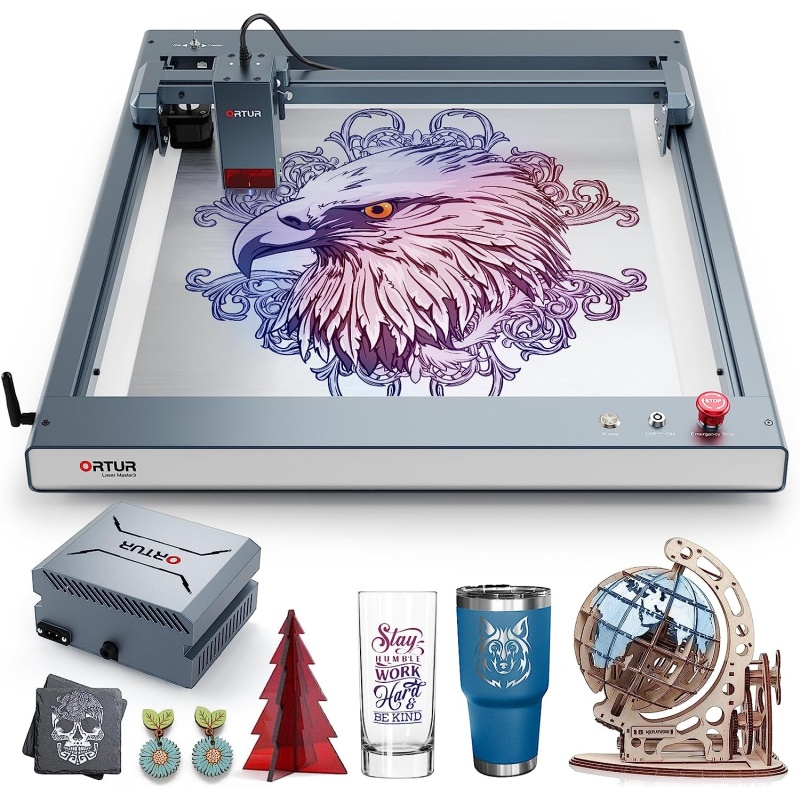

Ortur Laser Master 3 + 20W (LU3-20A)

Ortur Laser Master 3

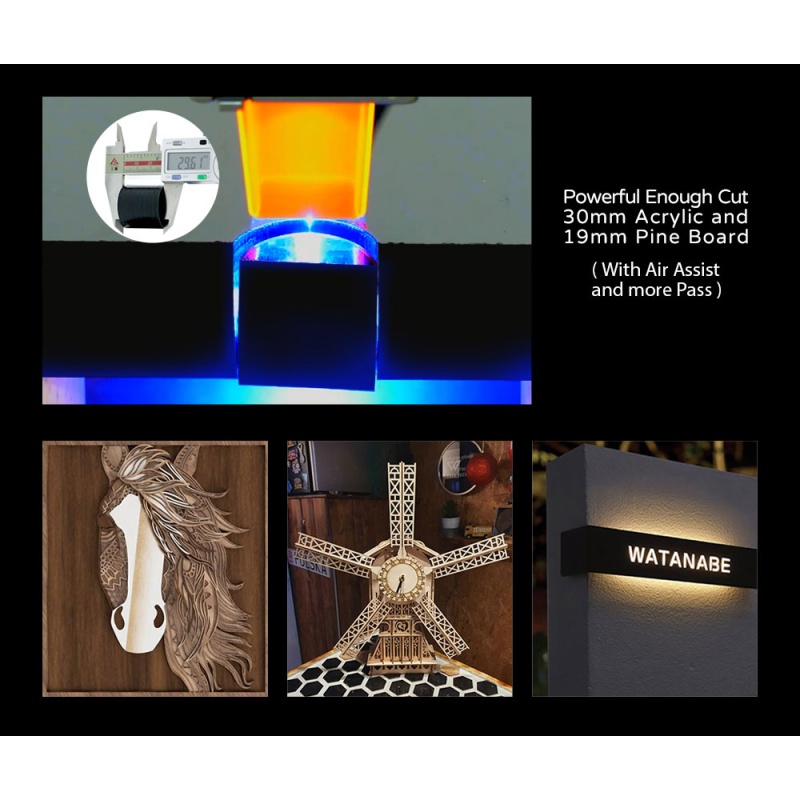

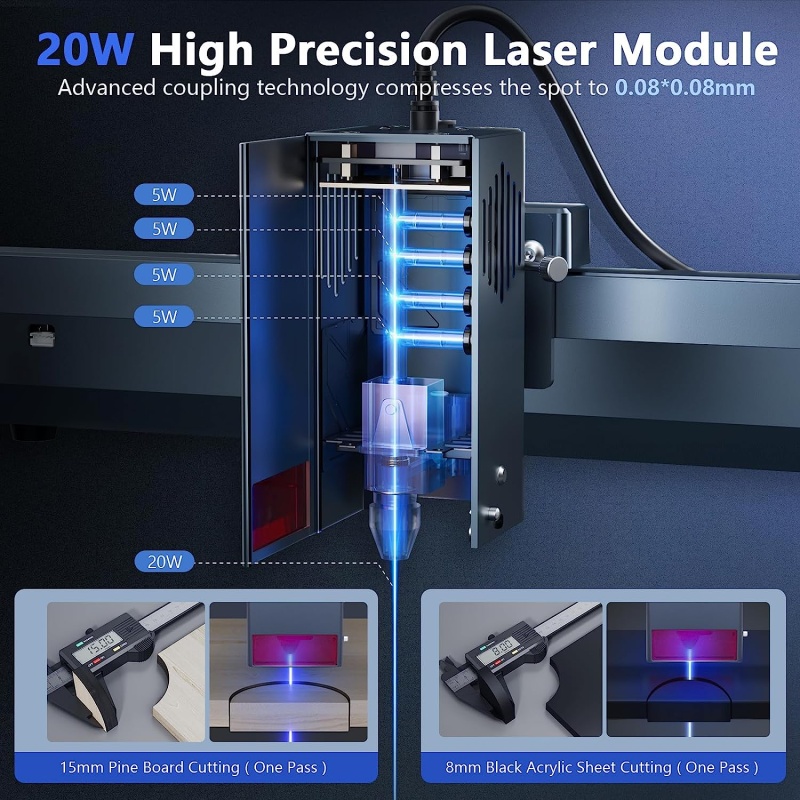

• 20W TOP Cutting Capability: ORTUR Laser Master 3 LU3-20A uses advanced coupling technology, compressing the spot to 0.08*0.08mm. It is a great acrylic cutting machine as powerful as an industrial CNC Cutter because of the 20W higher power laser output. This laser engraver can cut 10mm basswood plywood in one pass, 15mm pine board in one pass, and 8mm black acrylic in one pass. It is ideal for those with high laser machine-cutting ability requirements. (The cutting capacity is related to the output power of the laser, not to the power of the machine)

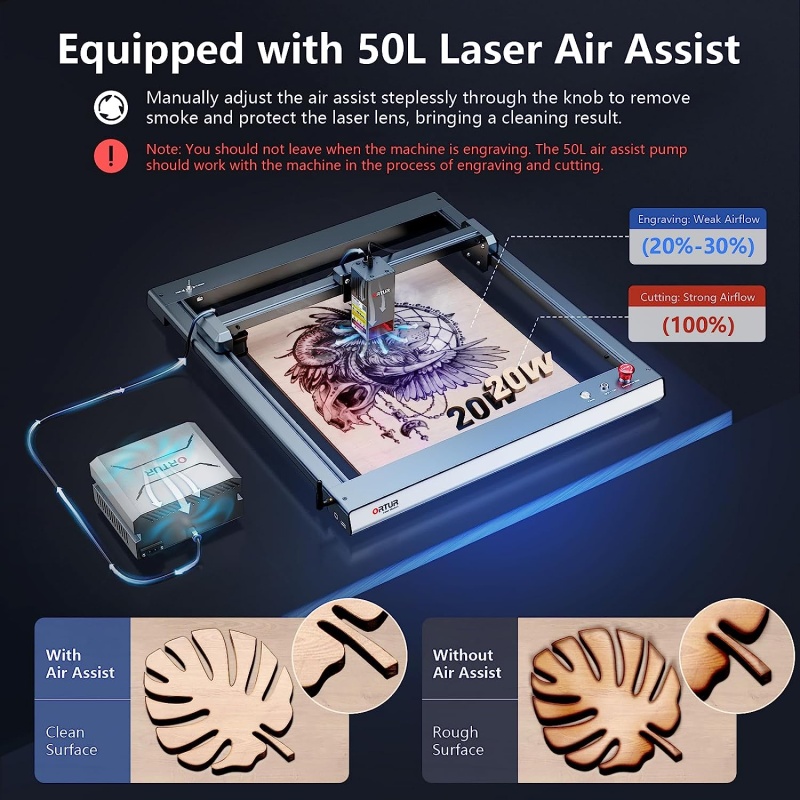

• Equipped with 50L Air Assist Pump: Ortur Laser Master 3 LU3-20A is also equipped with a 50L air assist pump. It allows you to enjoy precise beauty while increasing laser cutter efficiency and saving time. The laser air assist quickly and efficiently reduces the surface temperature of objects during the engraving and cutting process, resulting in cleaner and clearer edges.

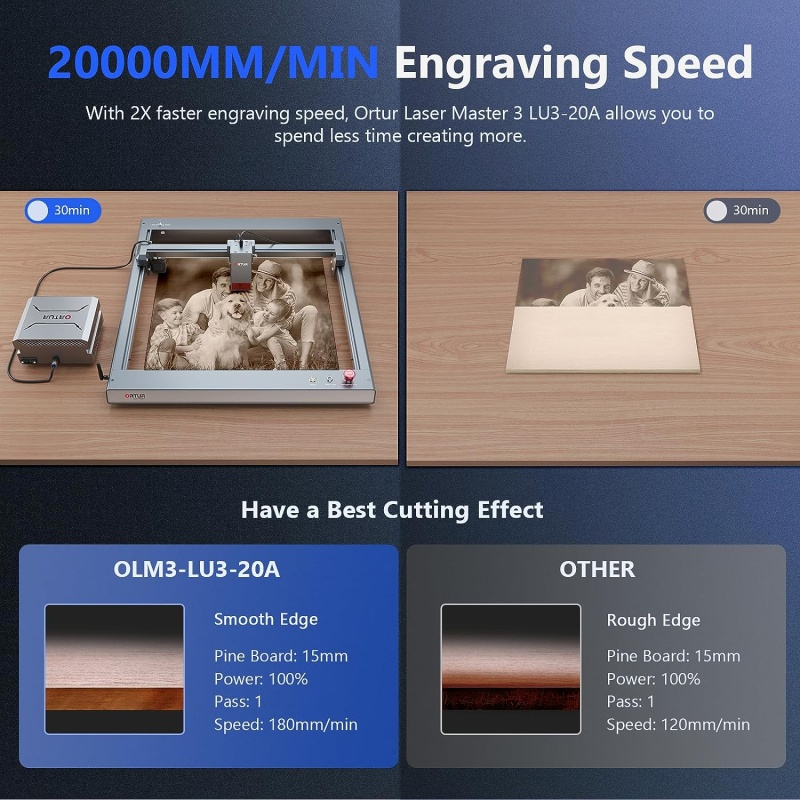

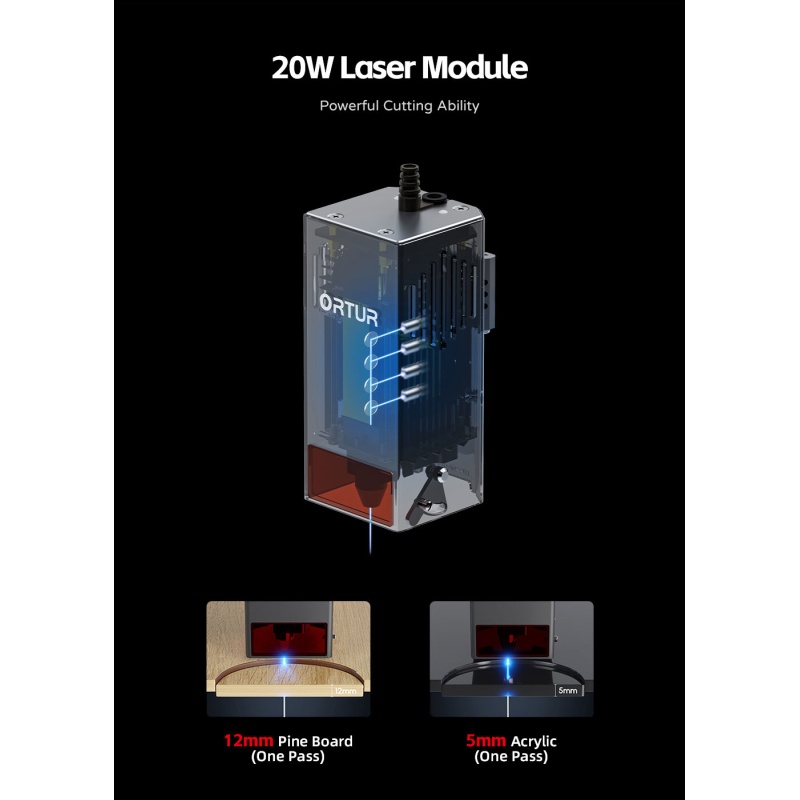

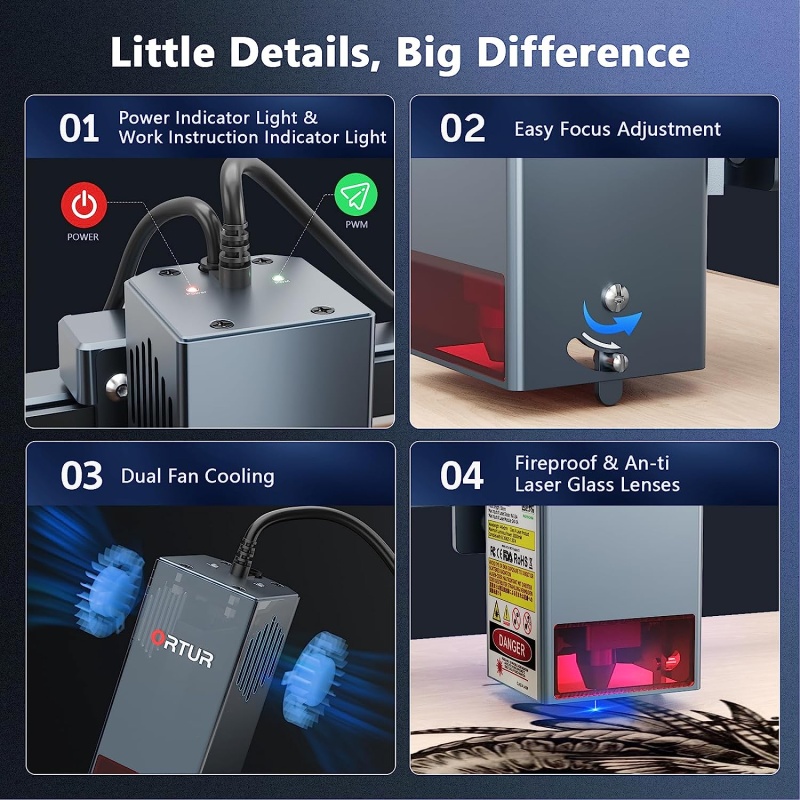

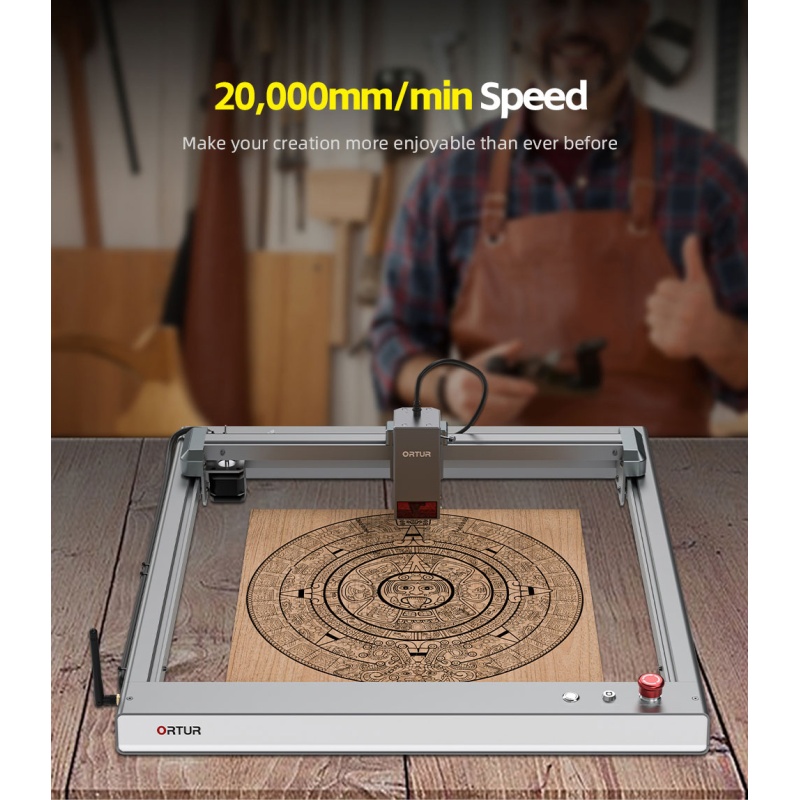

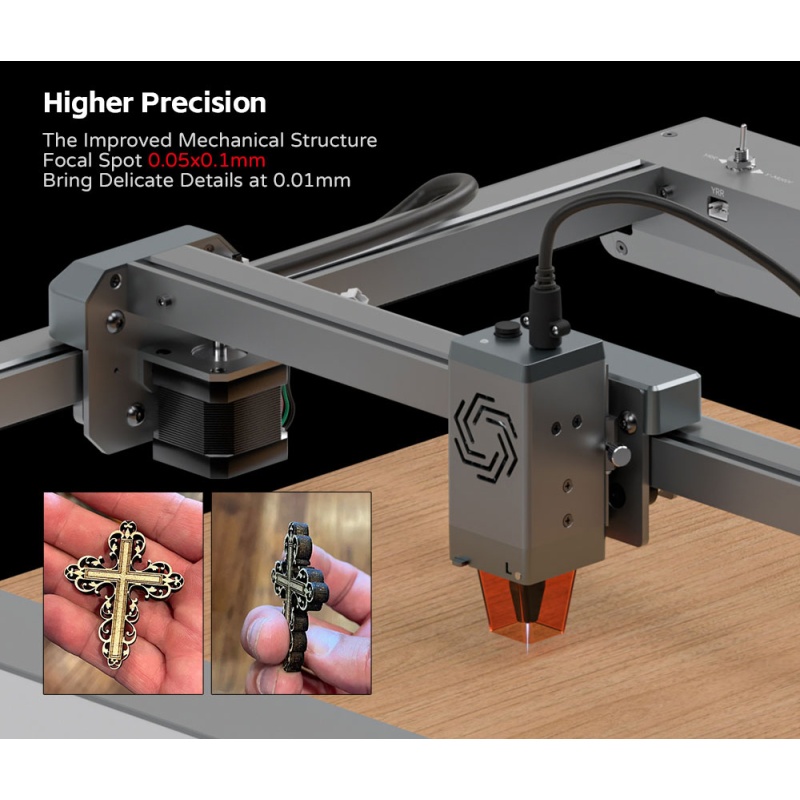

• High Precision and 20000mm/min higher Speed: ORTUR 20W laser module adopts the COS chip packaging technology. Four laser chips are welded inside the core of the tube via spatial combining, which further improves the combining accuracy to bring smaller square laser spots (0.08*0.08mm). LU3-20A was upgraded from LU2-10A. It keeps the design of dual fans and built-in air assist and optimizes the dual fans' layout, making it more reasonable and looks pretty. The maximum processing speed can reach 20000mm/min. With such engraving tools, you can complete your engraving artwork quickly and well.

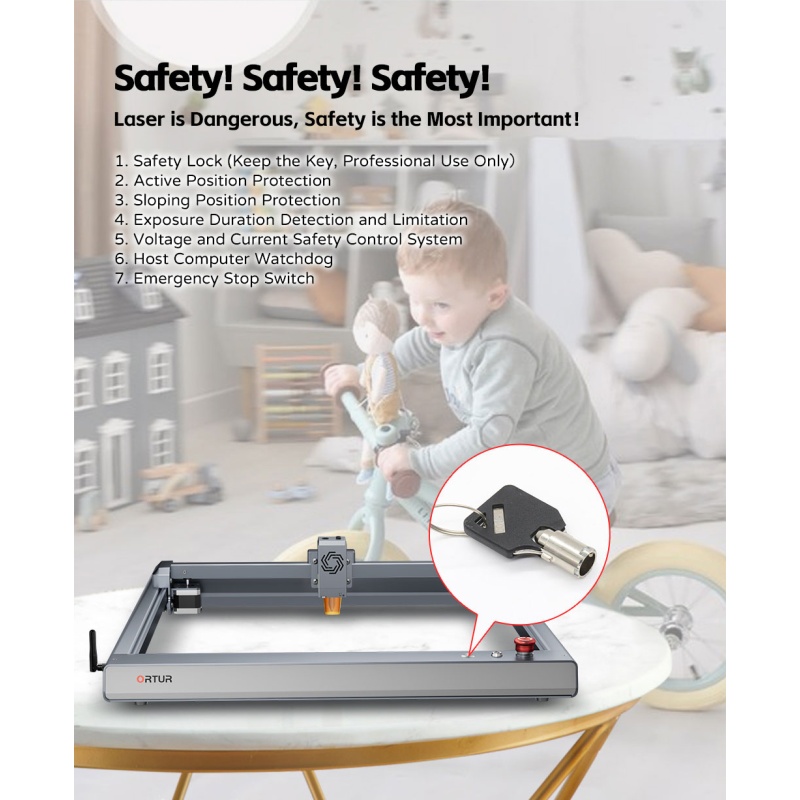

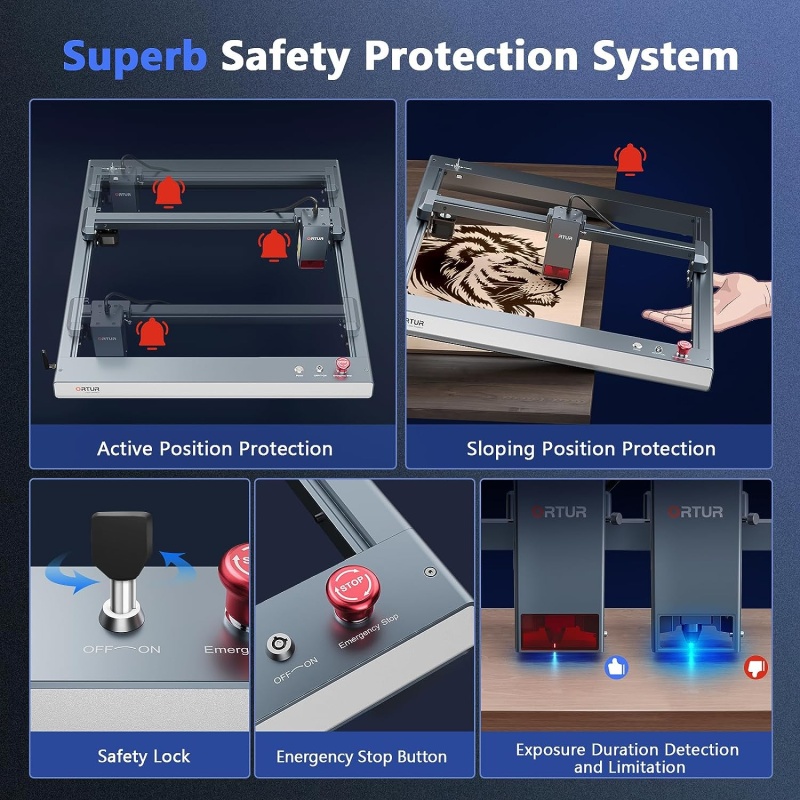

• Seven Safety Protections: ORTUR 20W laser engraver has seven safety protection systems: 1. Safety Lock (Keep the Key, Professional Use Only) 2. Active Position Protection 3. Sloping Position Protection 4. Exposure Duration Detection and Limitation 5. Voltage and Current Safety Control System 6. Host Computer Watchdog 7. Emergency Stop Switch gives you a safe environment for engraving and cutting.
• APP Control & User Friendly - ORTUR 20W laser cutter supports TF Card/USB/Wi-Fi/APP. Professional APP- Laser Explorer, Easy to Use/Automatic Operation Guide/Novice Friendly, is compatible with iPhone, Android Phones, iPad and Android Pad. Drag the NC file to the SD card, the machine starts working, and then you can turn off the computer or mobile phone without worrying about disconnecting, which is more convenient to print for a long time—no computer restrictions, engraving work anytime, anywhere.

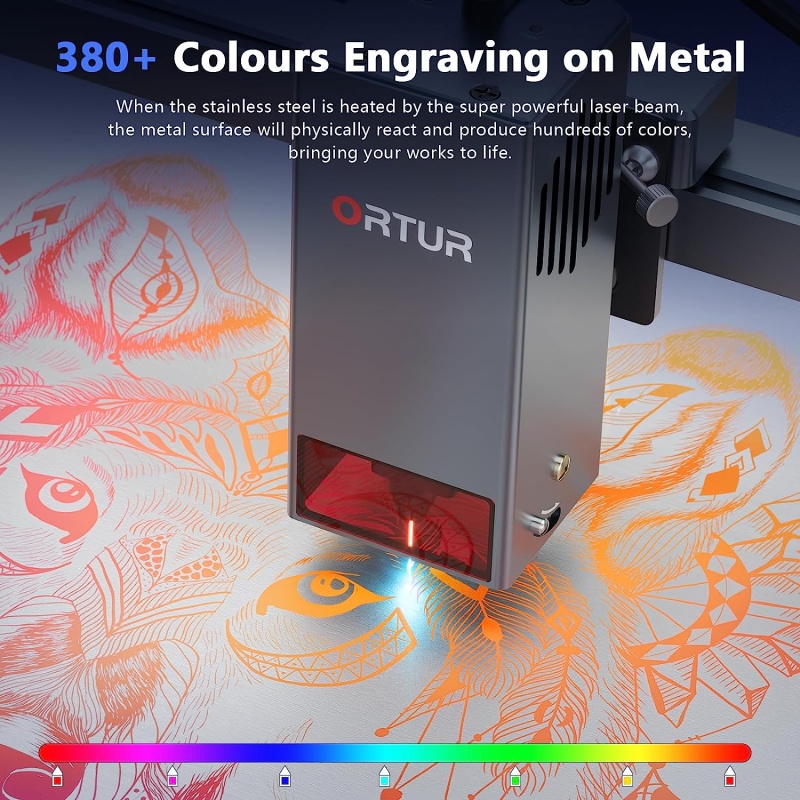

• More Functions: Low Gravitational Center Structure/The 11th Generation of Laser Motherboard OLM-ESP-PRO-V2.4C/Direct Print without transferring G-code/No physical Limit Switch, but you can set up original point to engrave wherever you like. Meanwhile, the module's fireproof & anti-laser glass lenses prevent the laser from dazzling your eyes. This newly designed laser engraving and cutting machine features an ultra-powerful laser beam that can create over 380+ colour choices on stainless steel by forming a thin oxide layer through a chemical reaction. Make your work stand out with a colourful touch.
• Engraving Area: 380MM×400MM
• Motherboard: 11th Ortur Laser Motherboard, with 32Bits MCU
• Available Laser Modules: LU3-20A Laser Modules
• Every 50 hours of use, please clean the lens with a medical cotton swab and alcohol.

Software

• Mobile App - Laser Explorer
• Free Desktop Software - laserable - Tutorials
• Paid Software - light burn - Tutorials

• ORTUR 20W Specification list.pdf
• materials-reference_-_LaserGRBL.pdf
• materials-reference_-_Lightburn.pdf
