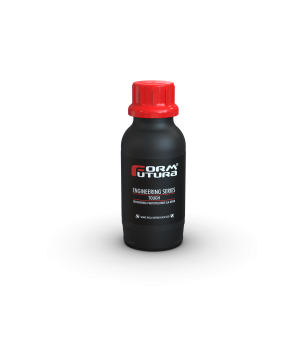

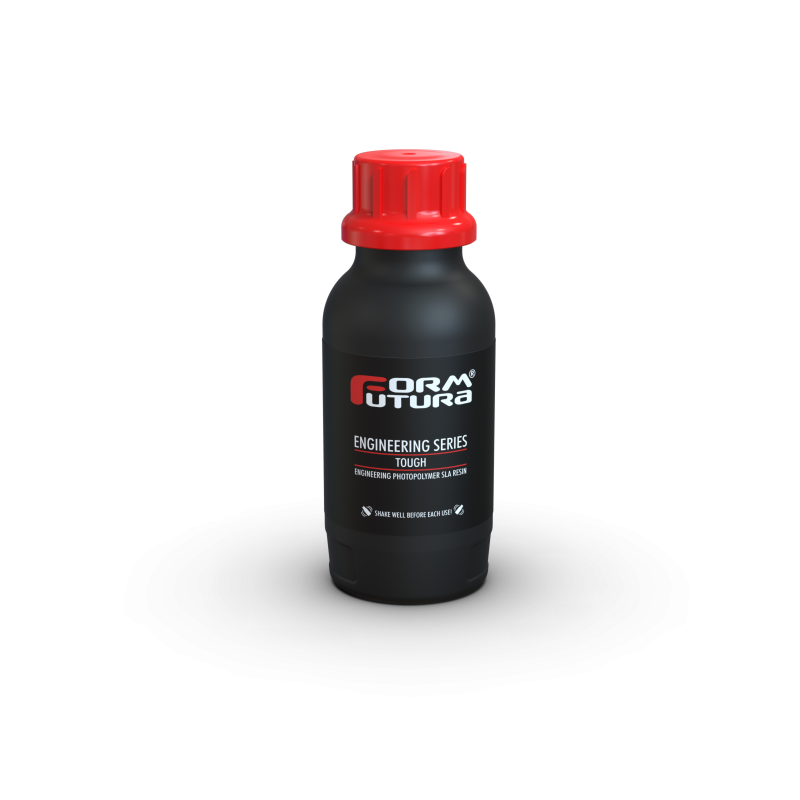

Engineering Series - Tough

Engineering Series - Tough

Kaubamärk: Formfutura
Tootekood: 6102
Ühik: tk 500g
Tarneaeg: 9 päeva
Hind: 82,80 €
Kogus: tk 500g Lisa korvi


Formfutura Tough Resin is an engineering type of photopolymer resin that is specially developed to work with all open source SLA, DLP, and LCD 3D Printers in the range of 385 – 405nm. Our Tough Engineering resin is extremely transparent and perfectly balances a high impact strength with semi-flexibility.

Its high level of toughness makes Formfutura Tough Resin ideal for creating strong and functional parts that will be exposed to repeatedly brief periods of intense stress or strain



Key features

  • High impact resistance
  • Good UV and weather resistance
  • Good fatigue resistance
  • Extremely transparent with virtually no discolouration and/or yellowing
  • High dimensional accuracy and low shrinkage
  • Almost odourless processing
  • Compatible with all open-source SLA, DLP, and LCD 3D printers in the range of 385 - 405nm



Applications

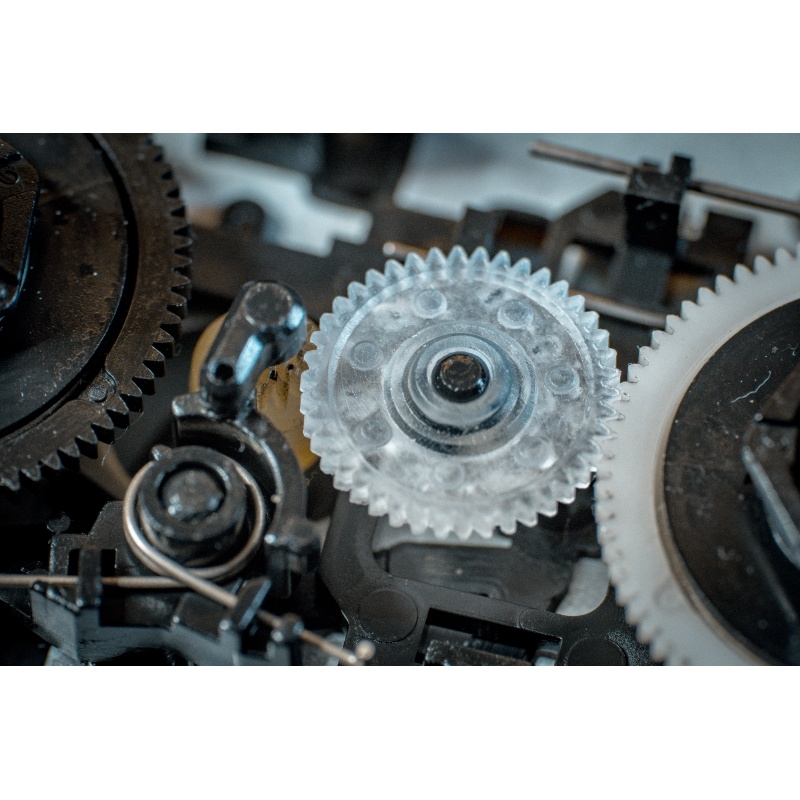

  • Snap-fit assemblies
  • Tooling
  • Functional prototyping
  • Protective cases
  • Outdoor parts
  • Short-run manufacturing



Resin properties (uncured liquid)

  • Viscosity: 1000 cps at 25°C
  • Density: 1.12 g/cm2



Mechanical properties

Test method on post cured objects through 10 minutes high power mercury curing.



Properties

Typical Value

Test Method

Glass transition temperature (Tg)

32°C

ASTM D7028

Water absorption

0.50%

ASTM D570-98

Impact strength (IZOD notched)

40 J/m

ASTM D256A

Tensile strength

45 MPa

ASTM D638M

Tensile Modulus

1.4 MPa

ASTM D638M

Elongation at break

25%

ASTM D638M

Flexural Strength

35 MPa

ASTM D790M

Flexural Modulus

900 MPa

ASTM D2240

Shore D Hardness

68

ASTM D2240



Please note that the above-displayed values can vary with individual machine processing, post-curing parts,  geometry, print orientation, print settings, and temperature.



Preparation(s) before starting to print

  • Shake the bottle for at least 2 minutes before each use.
  • After shaking the bottle, leave the resin to rest for 10 minutes to let air bubbles get out of the resin
  • The resin can be poured back from the vat into the bottle once your print is finished
  • Always use protective measurements like safety glasses and nitrile gloves when handling resins.



Post-processing

  • We do advise you to post-process your 3D print in order to achieve the material properties
  • Rinse your 3D printed object in IPA or (Bio)Ethanol for approximately 5 minutes
  • Make sure that IPA and/or (Bio)Ethanol rinsed objects are perfectly dry before further post-curing
  • Cure your object in a high power curing chamber for approximately 20-30 minutes at 65° C
  • An ultrasonic cleaner is preferred/recommended
  • Place the rinsed parts in a well-ventilated area for at least 30 minutes, or use pressurized air for at least 2 minutes
  • The preferred curing wavelength is between 300-410nm



Safety

Please always be aware that when 3D printing with resins that you are working with chemicals and that you should always be cautious and use the personal protective equipment as stipulated in our safety data sheets.

  • Always wear Respiratory Protection when sanding/cutting the resin object.
  • Always use nitrile gloves when handling resins and uncured resin objects.



Product export information

HS Code: 2916140090

Description: Resin for 3D Printing

Country of origin: the Netherlands
