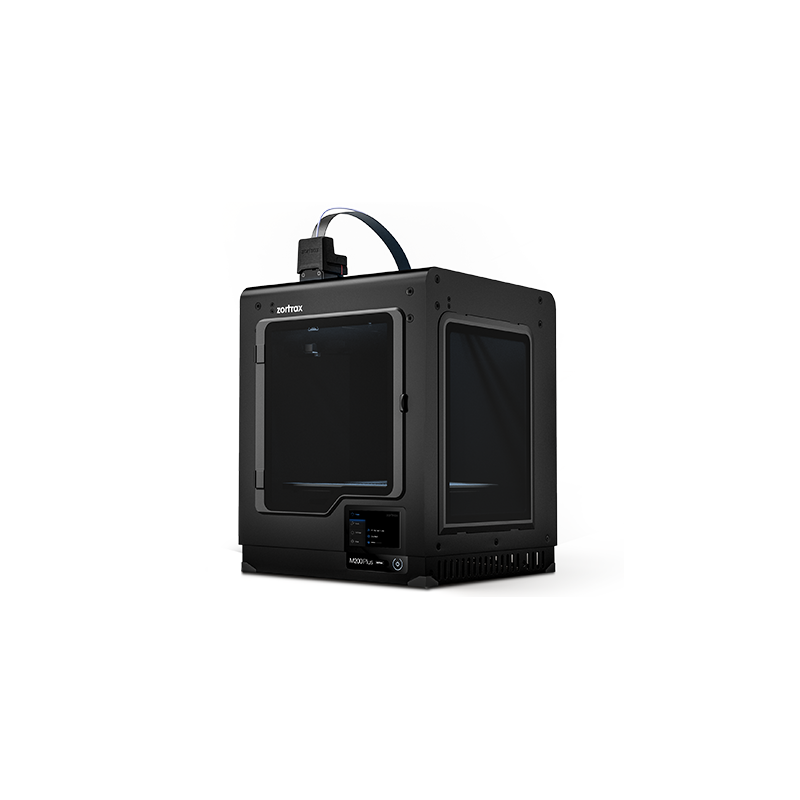

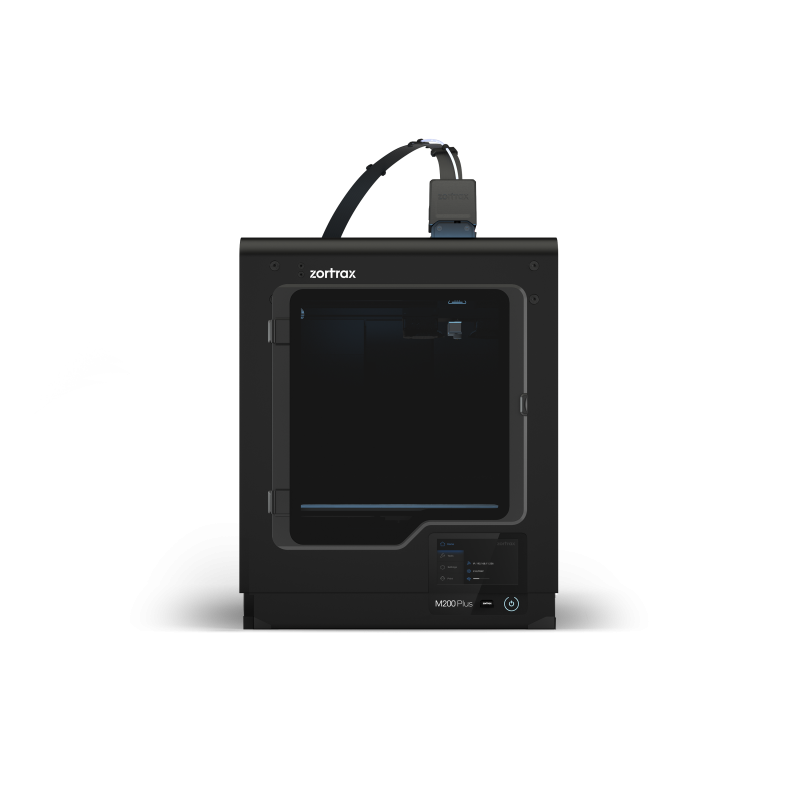

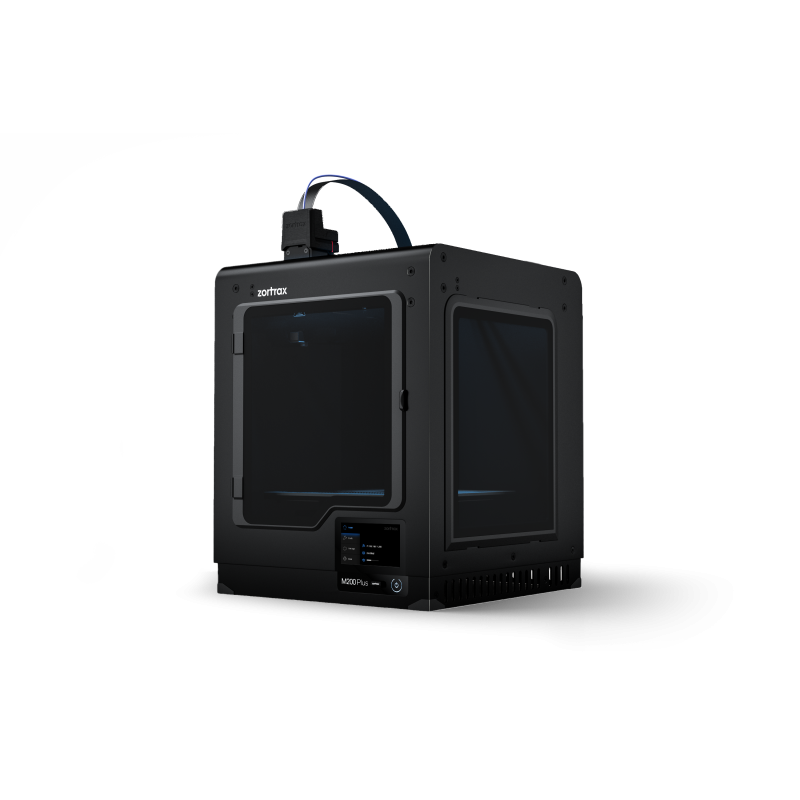

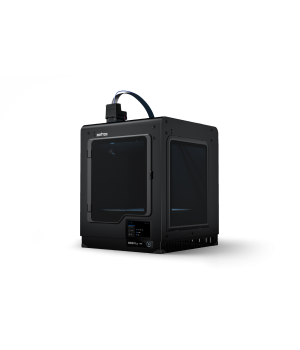

ZORTRAX M200 PLUS
ZORTRAX M200 PLUS
Zortrax M200 Plus – Scalable Additive Manufacturing with connected 3D printer farms
Expand your 3D printing capabilities with Zortrax M200 Plus 3D printer. Easily manage multiple devices via using Wi-Fi and Z-SUITE slicing software. Scale up your generative production now using multiple Zortrax M200 Plus simultaneously. Monitor the progress with the built-in camera. Whether is it for industrial manufacturing or prototyping, the M200 Plus 3D printer offers remarkable dimensional accuracy and consistency of integrated Zortrax Ecosystem. Get ready for additive manufacturing now.
Main product characteristics Plus:
- Integrated Wi-Fi module – auto wireless firmware
- Innovative Z-Suite 2 slicer software
- Scale up your additive manufacturing
- Built-in touch screen and camera
- Improved extruder to process flexible filaments
- Filament detection – Easy material change
- Use of third-party and Z filaments for Zortrax
Wi-Fi Module
Create wireless networks of Zortrax M200 Plus 3D printers and transfer files over Wi-Fi. You don’t need to transfer your 3D prints via SD card our USB stick. Simply transfer it via the air.
Material End Detection
Your 3D prints failed because of missing filament? Don’t worry anymore 3D printing will automatically pause when the material runs out. The Zortrax M200 Plus is equipped with on material detection sensor.
Upgraded Cooling System
Extruder cooling system has been improved>/b> to guarantee the highest efficiency. With this upgrade the filament will only be heated where it should melt.
Built-in Camera
Watch the 3D printing process on your computer. Now you can control your 3D prints remotely by simply using the built-in-camera to monitor your manufacturing process.

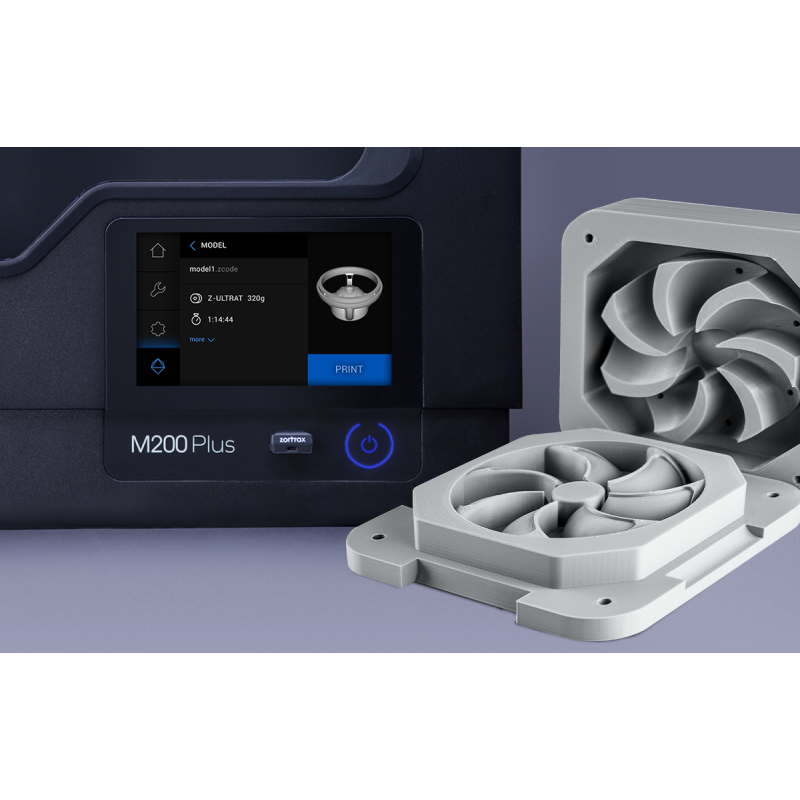

User-friendly Design
Zortrax M200 Plus is an advanced 3D printer. It is ready for high quality 3D printing right after unboxing. Just plug&play 3D print, no assembly or tinkering needed. Easily select available options by touching the icons on the built-in touchscreen. You can preview 3D models directly on the screen, too. Moreover, the interface can be improved with automatic firmware updates over the air via Wi-Fi. Beside transferring files wirelessly, you can use a USB storage device of any kind.

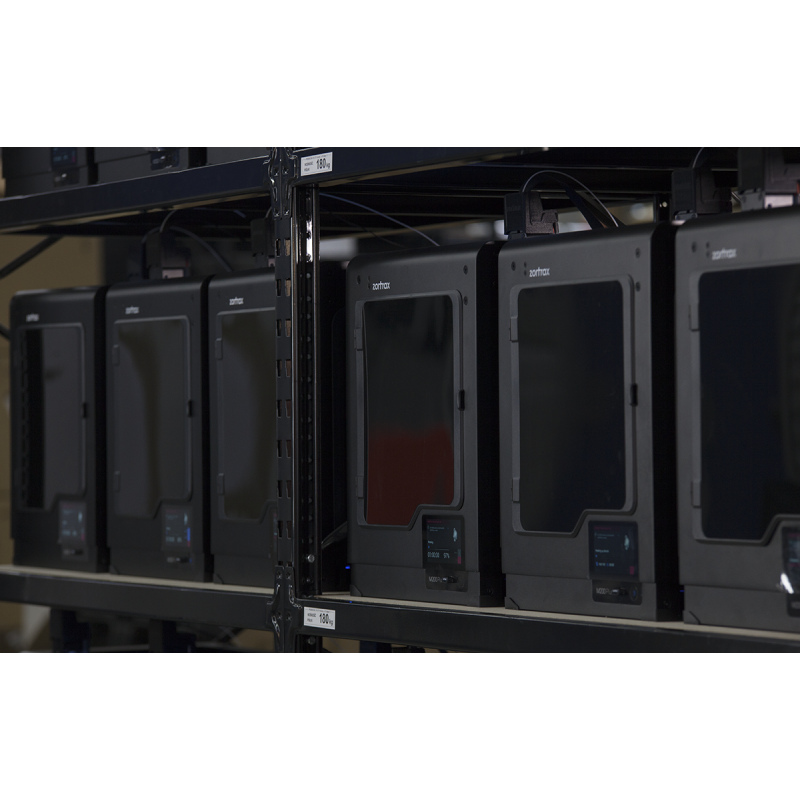

3D Printing Cloud – Network of 3D printers
With Zortrax M200 Plus connected, your computer becomes the command center of smart, reliable additive manufacturing. Wi-Fi module installed in Zortrax M200 Plus offers a fitting alternative for the file transfer between computer and the 3D printer. This 3D printer has Ethernet as well thus you can connect it to your network easily and very stable.
Connect
Wi-Fi module allows you to connect the devices together, creating manufacturing networks ready to cope with the most ambitious projects. If needed scale your production up.
Manage
Manage all your 3D printers easily from a screen of your computer. Divide work between the devices to finish it quickly. If you need a small-scale production, simply add more Zortrax M200 Plus 3D printers.
Check
Rely on the smart functionalities like filament end detection, upgraded extruder, build platform and camera for risk-free 3D printing. You will experience a whole new user experience.
Key features of Z-SUITE 2
Wi-Fi Module
Create wireless networks of 3D printers and transfer files over Wi-Fi and Ethernet.
Tabbed Projects
Work on many projects simultaneously.
High quality of Zortrax Materials Profiles
Use 3D printing materials from Zortrax Ecosystem to maximize the quality of your 3D prints.
External Materials Support
Flexibility – The software allows you to experiment with third-party filaments.
Material Range
Zortrax M200 Plus is compatible with all filaments available for M Series 3D printers. Moreover, the upgraded extruder allows you to 3D print with the Z-SEMIFLEX material.
Available materials: Z-ABS, Z-HIPS, Z-ULTRAT, Z-PETG, Z-GLASS, Z-ESD, Z-PLA Pro, Z-ASA Pro, Z-PCABS, Z-SEMIFLEX
Buy the Zortrax M200 Plus 3D printer to experience integrated and scalable additive manufacturing.
Technical specifications | |
Usable Nozzle Type | Zortrax M Plus |
Usable Filament Diameter | 1.75 mm |
Max Nozzle Temperature | 290 ºC |
Open Filament System | Yes |
Extruder Type | Direct drive |
Build Area | 200 mm x 200 mm x 180 mm |
Build Plate Temp Max | 105 ºC |
Build Plate Material | perforated and coated |
Build Plate Attachment | magnetic |
Build Plate Leveling System | capacitive sensor |
Build Chamber During Process | Open or Closed |
Extruder Number Of | 1 |
Installation Space / Requirements | |
Total Mass Overall Dimensions | 440 mm x 350 mm x 510 mm |
Total Weight | 15.9 kg |
Ambient Operating Temperature | 20°C - 30°C |
Max Power Consumption | 320 W |
Voltage | AC: 110 V, 5,9 A / 230 V, 2,5 A (50/60 Hz) |
Equipment | |
Hepa Filter | Option |
Filament Runout Sensor | Yes |
Power Loss Fail Safe | Yes |
Touch Screen | Yes |
Camera | Yes |
Connection | |
USB Port | Yes |
Ethernet Port | Yes |
WLAN | Yes |
Cloud Control | Yes |
Accuracy | |
Layer Height | 0.09 - 0.390 mm |
Shipping | |
Shipping Box | 455 mm x 455 mm x 560 mm |
Shipping Weight | 20.5 kg |
