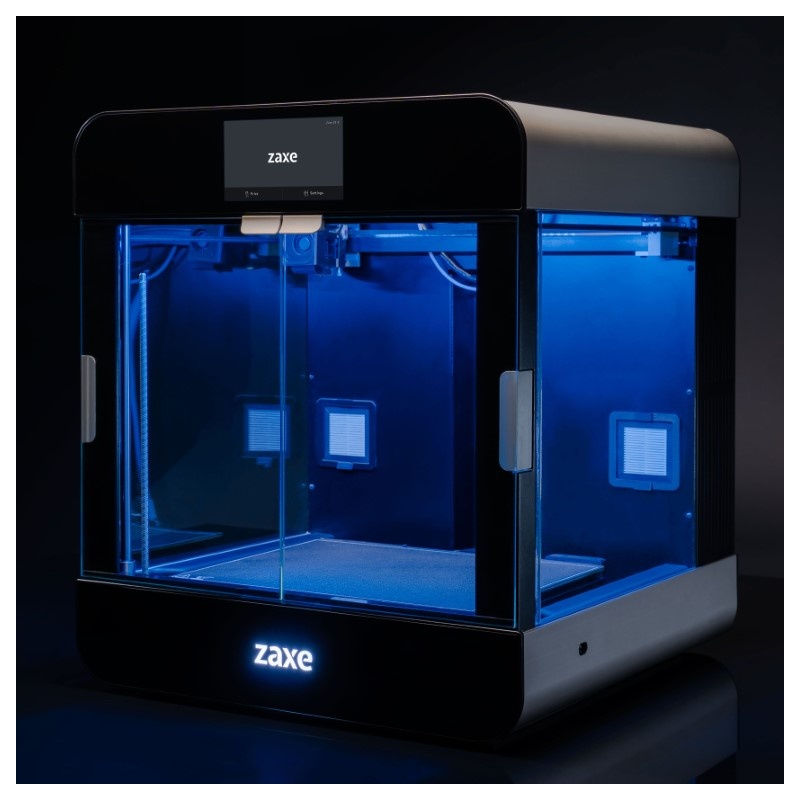

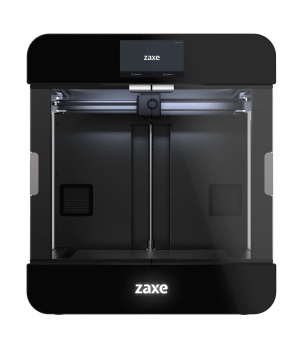

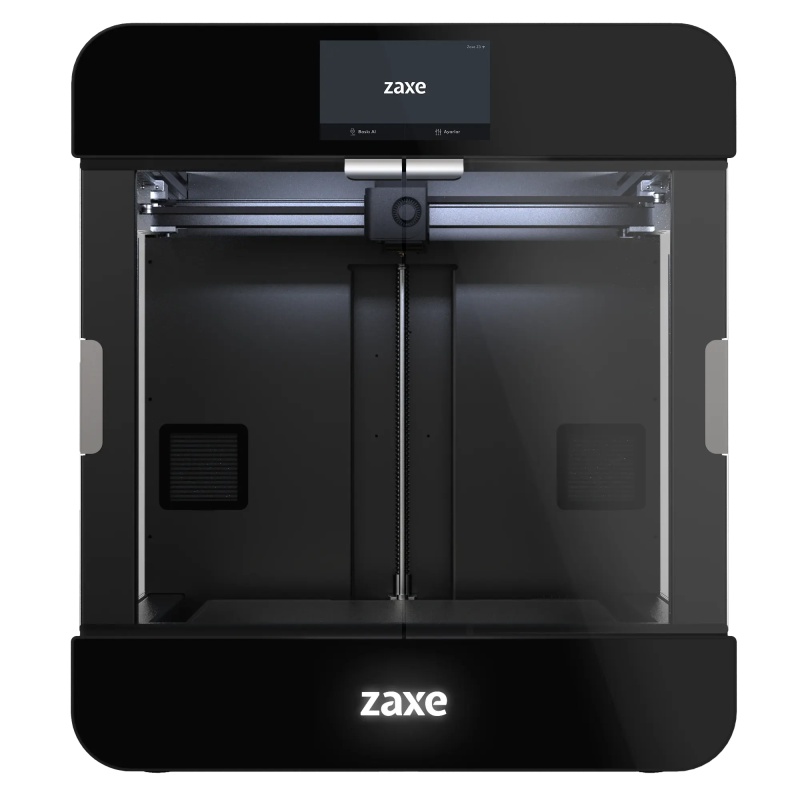

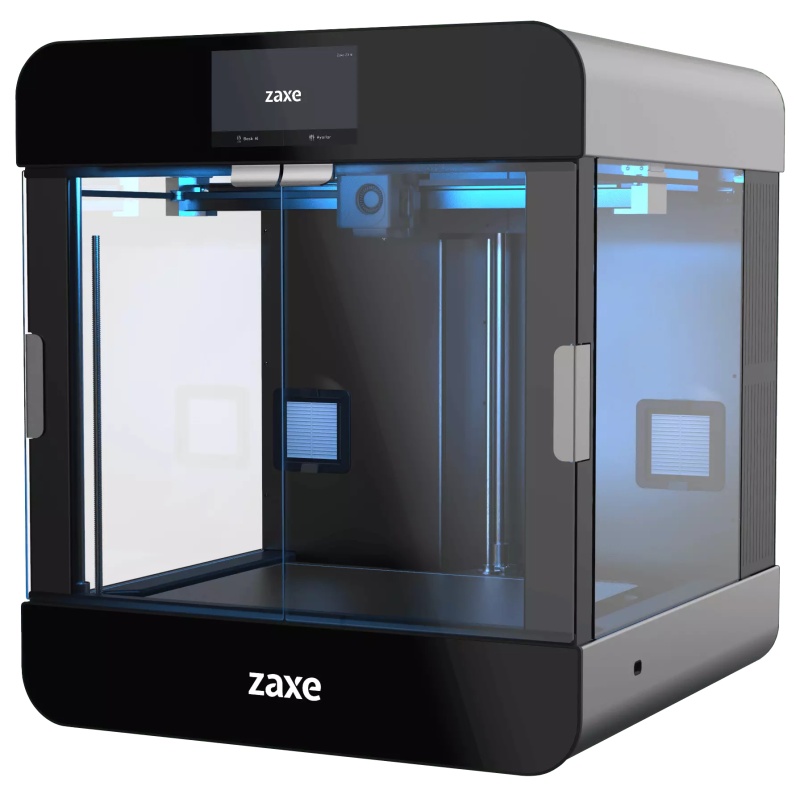

Product information "Zaxe Z3 3D Printer"

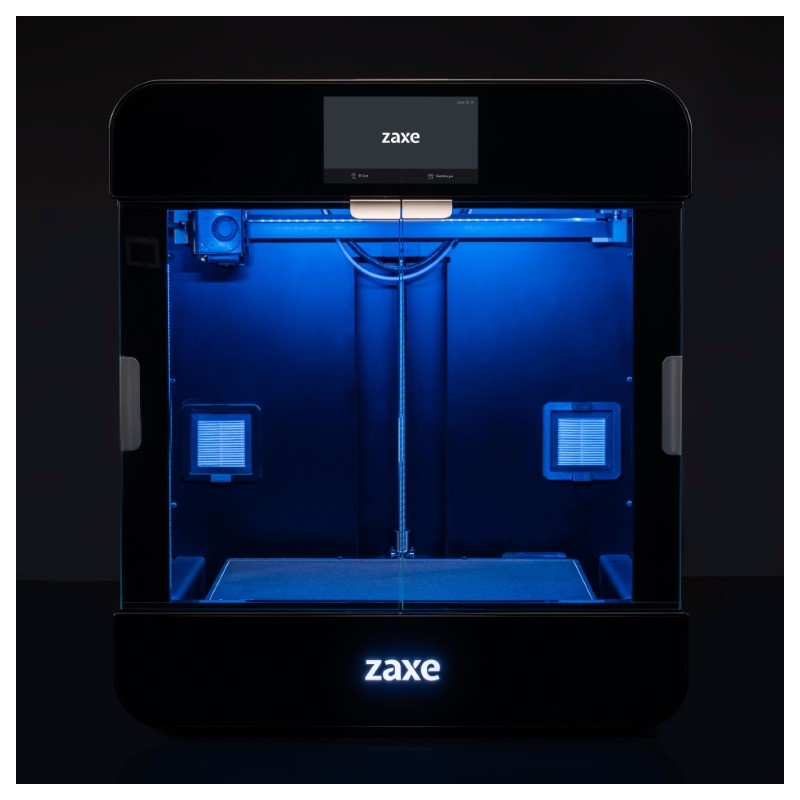

The Zaxe Z3 3D printer enables the simultaneous use of multiple different materials and filaments in different colours to increase the efficiency of the production process. With a fully enclosed print volume of 400 x 300 x 350 mm, the Zaxe Z3 offers users a fast and stable printing experience. The machine combines the mechanical solid structure of the CoreXY system with the precise step-motion function of the new-generation clipper system to ensure that the printer is quieter, faster and more durable.

Zaxe Z3 3D Printer Video

THE PRINT HEAD

New generation printhead
An innovative design for high-end parts manufacturers. Thanks to Bondtech and reduction gears, it keeps the filament flow continuous. Thanks to the redesigned cooling channels and filament path, the Z3 offers superior performance and works in complete harmony with industrial filaments.

E3D V6 Titanium Hotend
The new generation E3D V6 Titanium printhead prevents clogging and extends its life. It gives you a powerful, non-stop 3D printing experience with even the most rigid materials.

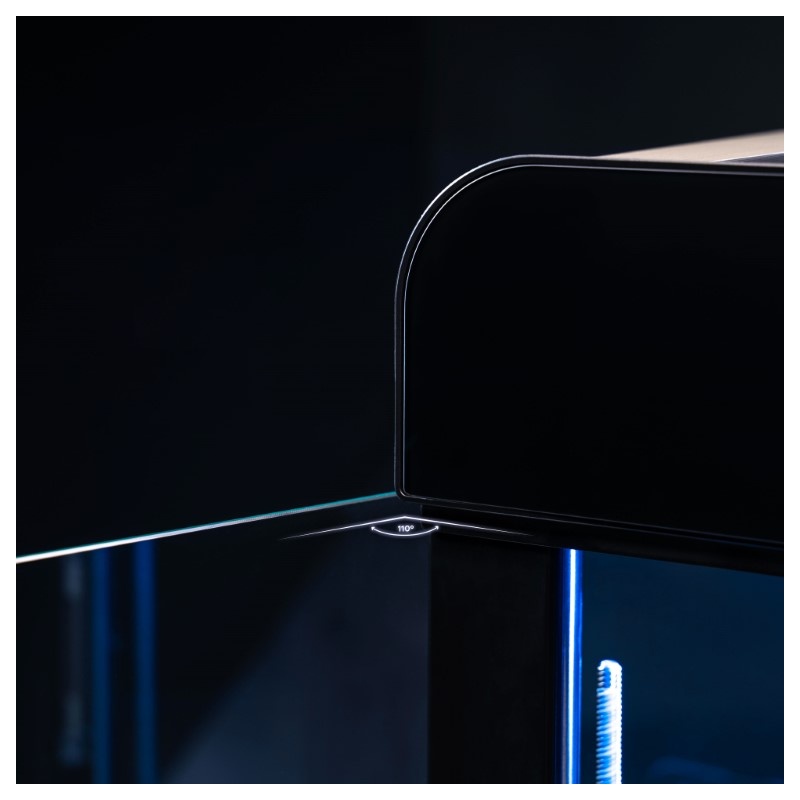

THE HOUSING

Aim high with the new design.

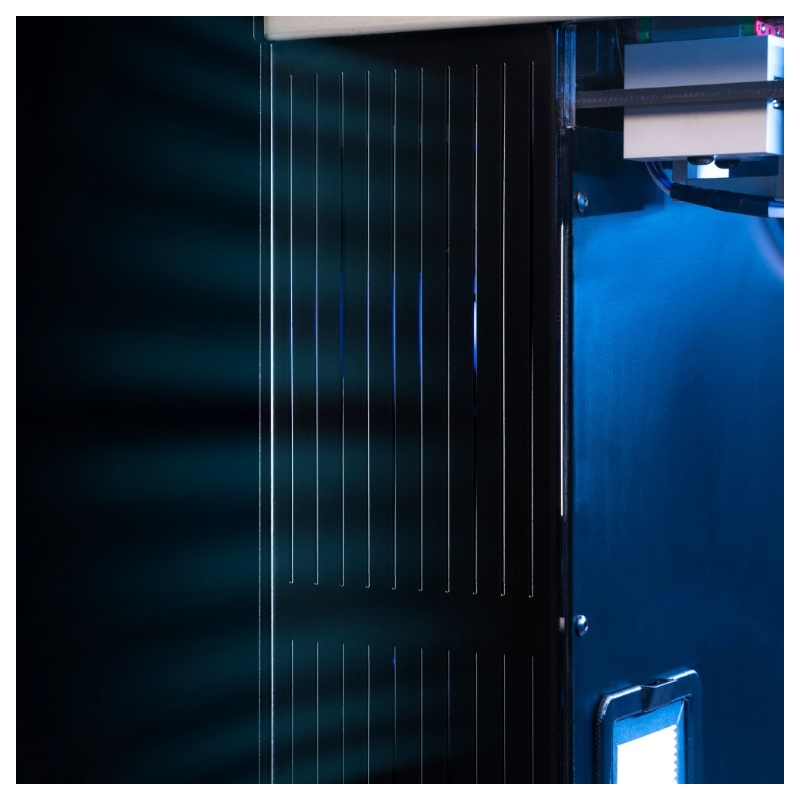

The enclosures are made of high-quality 3D printed materials applied to the ultra-light and rigid metal structure to protect the entire advanced system. You can achieve precise tolerance values with the mechanical system built on the steel housing. With the new design structure in which the electronic system is isolated, you can achieve trouble-free results in long prints.

Thanks to the highly stable metal housing, vibrations will not affect your prints even at the highest speeds. Your 3D printing process will be more transparent and accessible than ever when you meet the stable, durable and robust 3D printer.

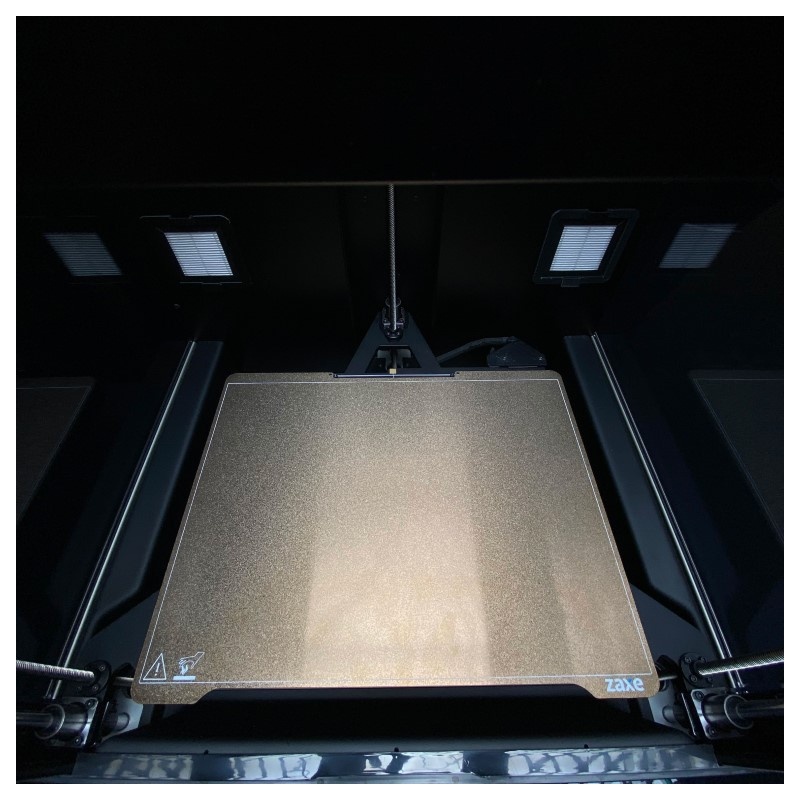

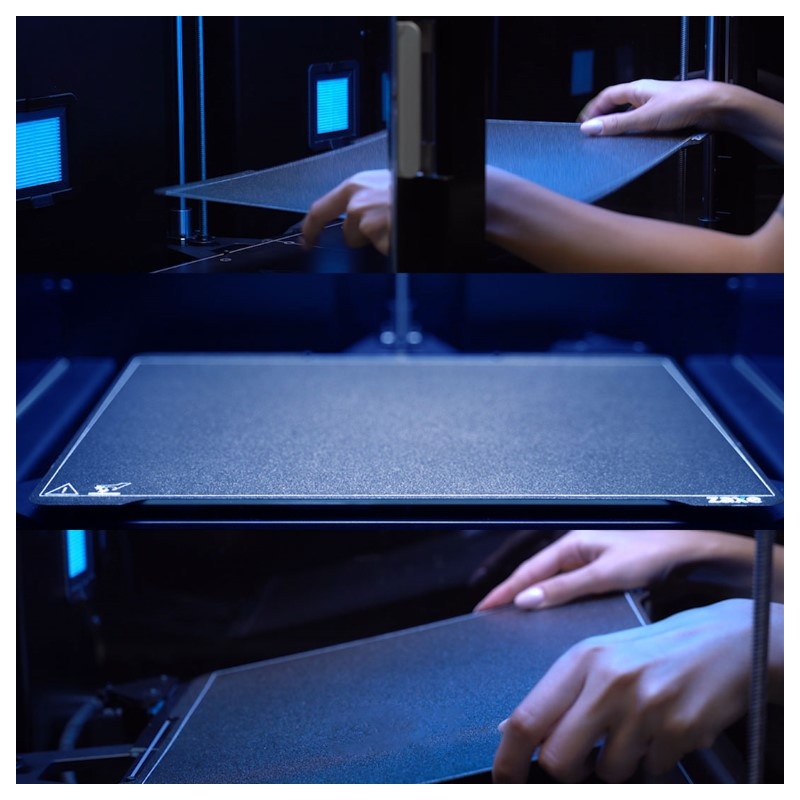

THE CONSTRUCTION PLATE

Flexible
Easily remove your prints from the PEI table without additional tools. It can be easily bent as it is made of spring steel.

Structured or smooth
The first layer must always be perfect. You can choose between a smooth or textured surface depending on your needs.

Magnetic
Its magnetic structure can easily remove it from the construction plate and effortlessly reattached it.

ZAXE ELECTRONICS

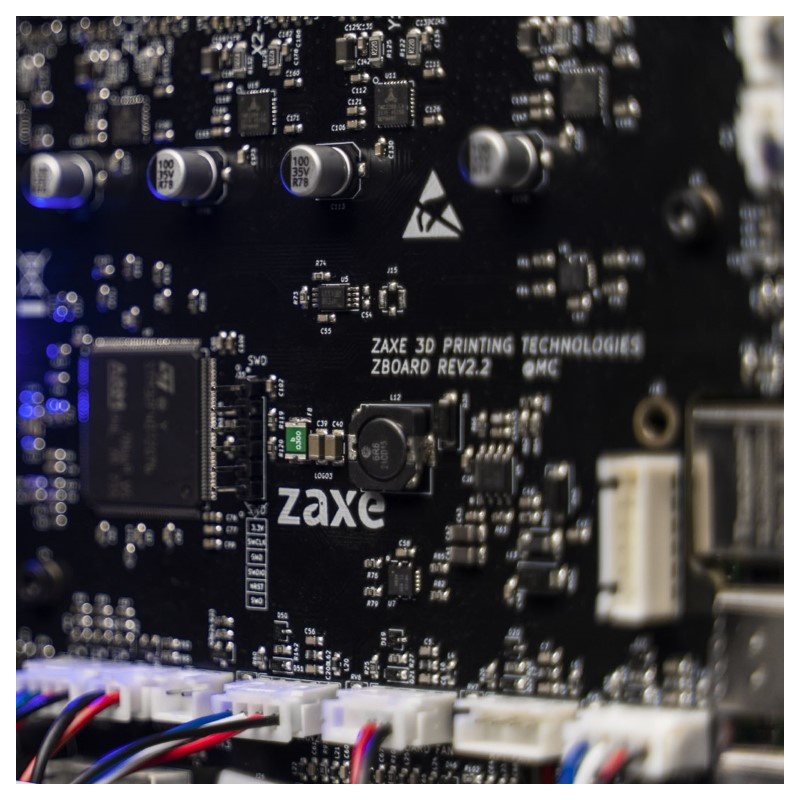

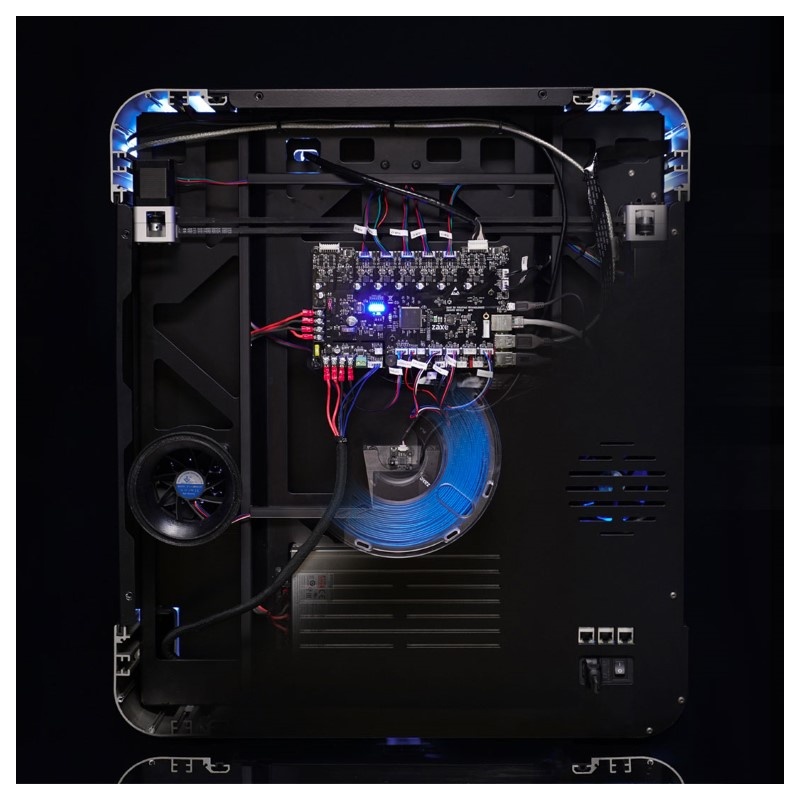

Motherboard
The new Z-Series achieves high performance and precise stepping capabilities thanks to the 32-bit, 168 MHz STM 32 ARM processor Zboard. It is now much faster and more stable than ever before.

Secure and stable connection
The zBoard has numerous security features to ensure a safe and high-quality printing experience and has a backup for every possible scenario. Each of its ports is equipped with noise-cancellation technology to make your printing experience more stable than ever.

Cooling System
We've designed an optimized cooling system to keep the powerful processor in our zBoard cool so you can use it to its full potential.

FILTER

The Zaxe Z3 has a HEPA filter and features a new generation E3D print head.

REMOTE CONTROL

With the xCloud application, you no longer have to wait at your printer. You can track the print by instantly accessing the print details and snapshots.

Technical details of the Zaxe Z3

Dimensions: 585 x 665 x 667 mm
Build volume: 400 x 300 x 350 mm
Print area: Closed, heat insulated

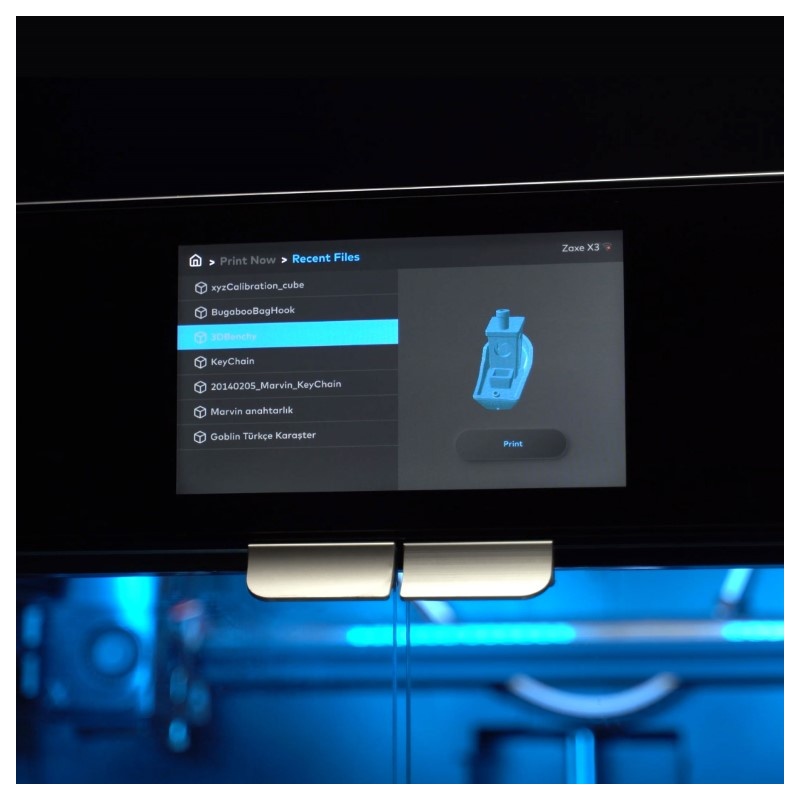

Control panel: 7" color touchscreen
Printhead: Single, Titanium E3D V6
Calibration: Fully automatic & Z Tilt
Power Failure Protection: Yes
Filament Sensor: Yes
Filter: HEPA + Carbon Filter
Warranty period: 24 months

Printing characteristics
Nozzle diameter: 0.25/0.4/0.5/0.6 mm
Layer resolution: 50 - 400 microns
Bed Material: Heated, flexible, magnetic PEI construction plate
Bed Max Temp.: 110°C
Extruder Max Temp.: 300°C

Software and Connectivity
Software: xDesktop
Supported file types: .stl, .amf, .gcode
Connections: Wi-Fi, Ethernet, USB, flash disk

Material

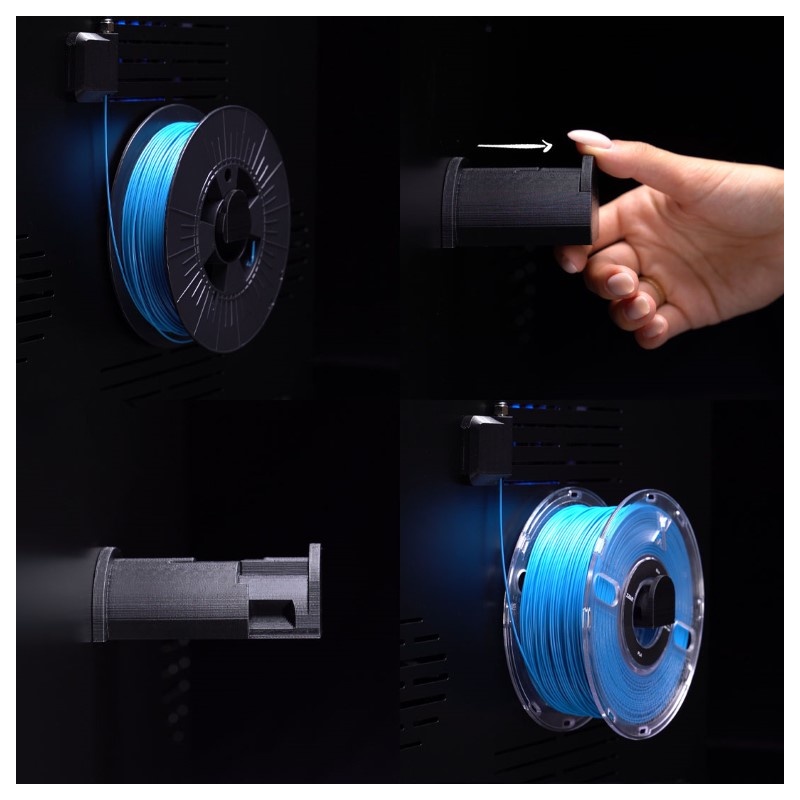

Material feed: Filament spool
Filament diameter: 1.75 mm
Supported materials: PLA, ABS, PETG, nylon, flex and carbon fibre, wood, copper, metal-filled filaments.
